FOOTREST

RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

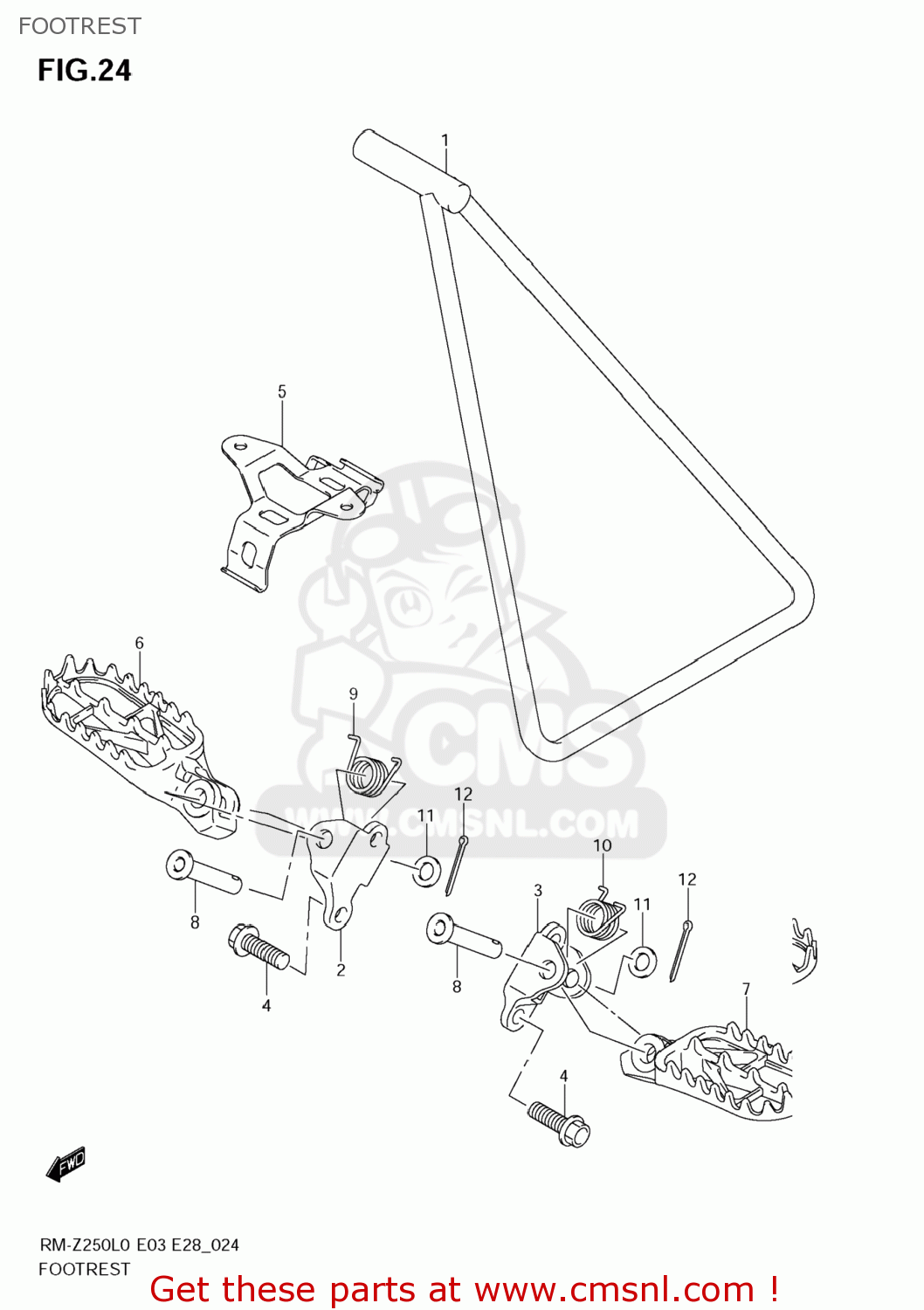

Footrest diagram RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

4231028H00
ref: 1

STAND

€ 79.00

4185528H10
ref: 2

BRACKET,FOOTREST,R

€ 62.50

4186528H10
ref: 3

BRACKET,FOOTREST,L

€ 62.50

0910310415
ref: 4

BOLT(10X25)

€ 2.50

4134749H00
ref: 5

BRACKET,ECU

€ 8.00

4355128H10
ref: 6

FOOTREST,R

€ 157.00

4356128H10
ref: 7

FOOTREST,L

€ 75.50

0920010019
ref: 8

PIN(10X41.5)

€ 6.00

0944821012
ref: 9

SPRING

€ 12.50

0944821013
ref: 10

SPRING

€ 4.50

0916010121
ref: 11

WASHER(10.5X18X1)

€ 2.00

041112520A
ref: 12

PIN

€ 2.00
