KICK STARTER

RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

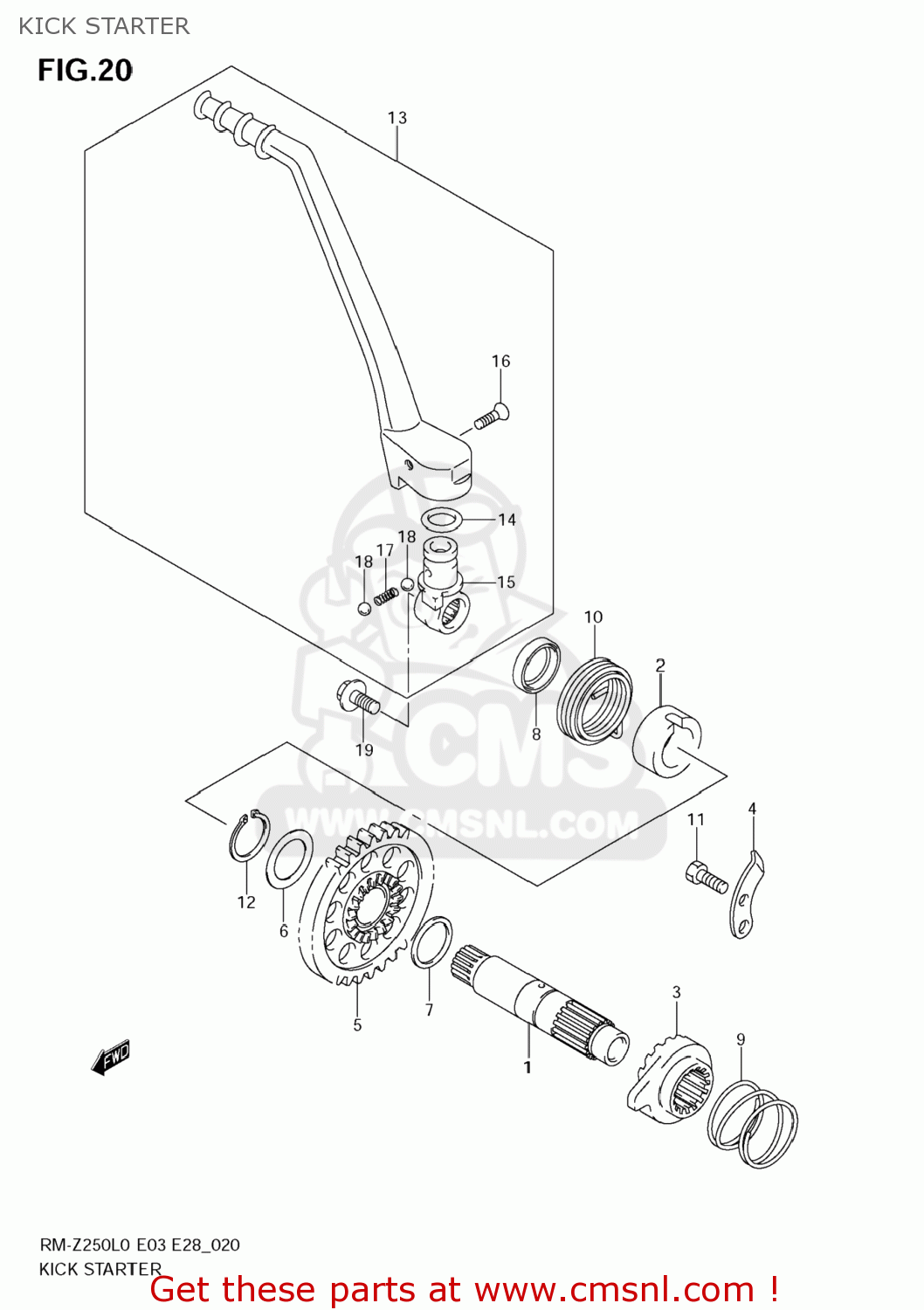

Kick starter diagram RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250

KICK STARTER RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250
KICK STARTER RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250
KICK STARTER RM-Z250 2010 (L0) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
2621110H00
ref: 1
SHAFT,KICK STARTER
2621110H00
€ 59.50
2
2622110H00
ref: 2
GUIDE,KICK STARTER SFT SPRING
2622110H00
€ 10.50
3
2623110H00
ref: 3
STARTER,KICK
2623110H00
€ 28.50
4
2623210H00
ref: 4
GUIDE,KICK STARTER
2623210H00
€ 5.00
5
2624010H00
ref: 5
GEAR,KICK STARTER DRIIVE
2624010H00
€ 92.00
6
0918118005
ref: 6
SHIM(18X26X0.5)
€ 3.00
7
0918118004
ref: 7
SHIM(18X22X1)
0918118004
€ 3.00
8
0928318004
ref: 8
SEAL,OIL(18X30X8)
0928318004
€ 5.00
9
0944031002
ref: 9
SPRING
0944031002
€ 2.00
10
0944845014
ref: 10
SPRING
0944845014
€ 8.50
11
015000612A
ref: 11
BOLT
015000612A
€ 2.00
12
083313118A
ref: 12
CIRCLIP
083313118A
€ 2.00
13
2630010H00
ref: 13
LEVER ASSY,KICK STARTER
2630010H00
€ 413.50
14
2631328E20
ref: 14
O RING,KICK STARTER
2631328E20
€ 2.00
15
2633110H00
ref: 15
JOINT,KICK STARTER LEVER
2633110H00
€ 31.50
16
0912706024
ref: 16
SCREW(6X27.5)
0912706024
€ 3.00
17
0944005031
ref: 17
SPRING
0944005031
€ 1.50
18
0611107004
ref: 18
BALL
0611107004
€ 1.50
19
0910308522
ref: 19
BOLT(8X14)
0910308522
€ 3.50
