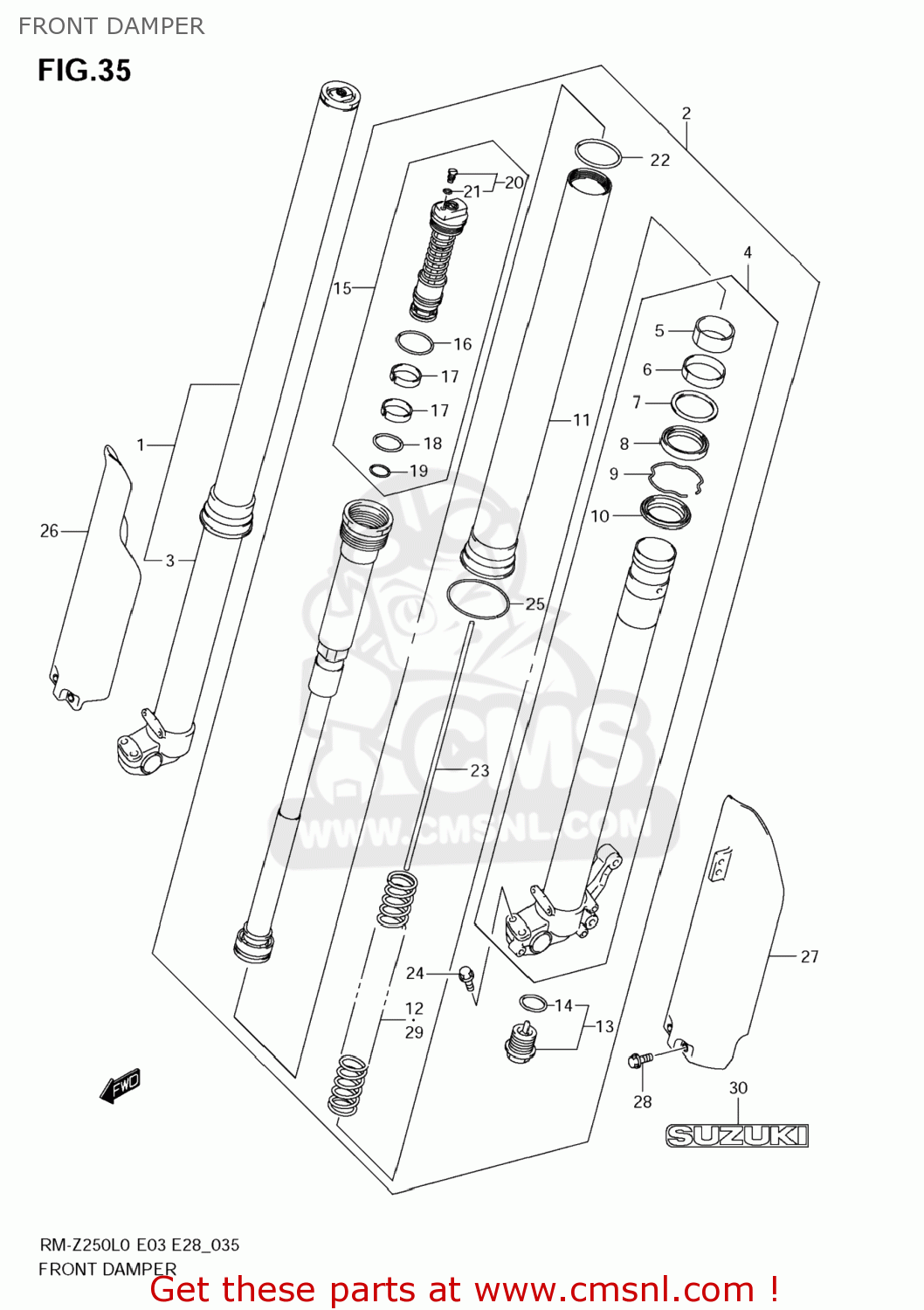

FRONT DAMPER

ref

part #

description

quantity

1

5110349H00
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,274.00

2

5110449H00
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,274.00

3

5111028H10
ref: 3

TUBE,INNER,R

€ 344.00

4

5112028H10
ref: 4

TUBE,INNER,L

€ 327.50

5

5112128H00
ref: 5
51121-28H10

BUSH

€ 12.50

6

5116728H00
ref: 6
51167-28H10

BUSH,GUIDE

€ 20.50

7

5115836F00
ref: 7

SPACER,SEAL

€ 5.50

8

5115337F80
ref: 8

SEAL,OIL

€ 14.00

9

5115627C40
ref: 9

RING,OIL SEAL STOPPER

€ 4.00

10

5117337F80
ref: 10

SEAL,DUST

€ 18.00

11

5113010H10
ref: 11

TUBE,OUTER

€ 520.00

12

5117128H00
ref: 12

SPRING,FR(K=0.47)

€ 121.50

13

5117037FC0
ref: 13

BOLT,CTR

€ 151.50

14

5117736E20
ref: 14

O RING

€ 3.00

15

5135149H00
ref: 15

BOLT,FORK

€ 300.00

16

5111737F80
ref: 16

O RING

€ 4.00

17

5112328H10
ref: 17

BUSH

€ 20.00

18

5117436E40
ref: 18

O RING

€ 3.00

19

5117537F80
ref: 19

O RING

€ 4.50

20

5135736F20
ref: 20

BOLT,PLUG

€ 8.50

21

5135828E30
ref: 21

O RING,PLUG

€ 2.50

22

5111837F80
ref: 22

O RING

€ 4.50

23

5119110H10
ref: 23

ROD,PUSH

€ 15.00

24

5132837F80
ref: 24

BOLT

€ 5.50

25

5121137FC0
ref: 25

STOPPER,RING

€ 5.50

26

5150128H00
ref: 26

PROTECTOR,FR FORK,R

€ 90.50

27

5151128H00
ref: 27

PROTECTOR,FR FORK,L

€ 90.50

28

0911106098
ref: 28

BOLT(6X10)

€ 2.00

29-1

5117128H10
ref: 29-1

SPRING,FR(K=0.45)

€ 121.50

29-2

5117128H20
ref: 29-2

SPRING,FR(K=0.49)

€ 121.50

30

6866129F00DPZ
ref: 30

EMBLEM,SUZUKI

€ 25.00

all assemblies
