CRANKSHAFT (RM-Z450 K8/K9/L0)

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

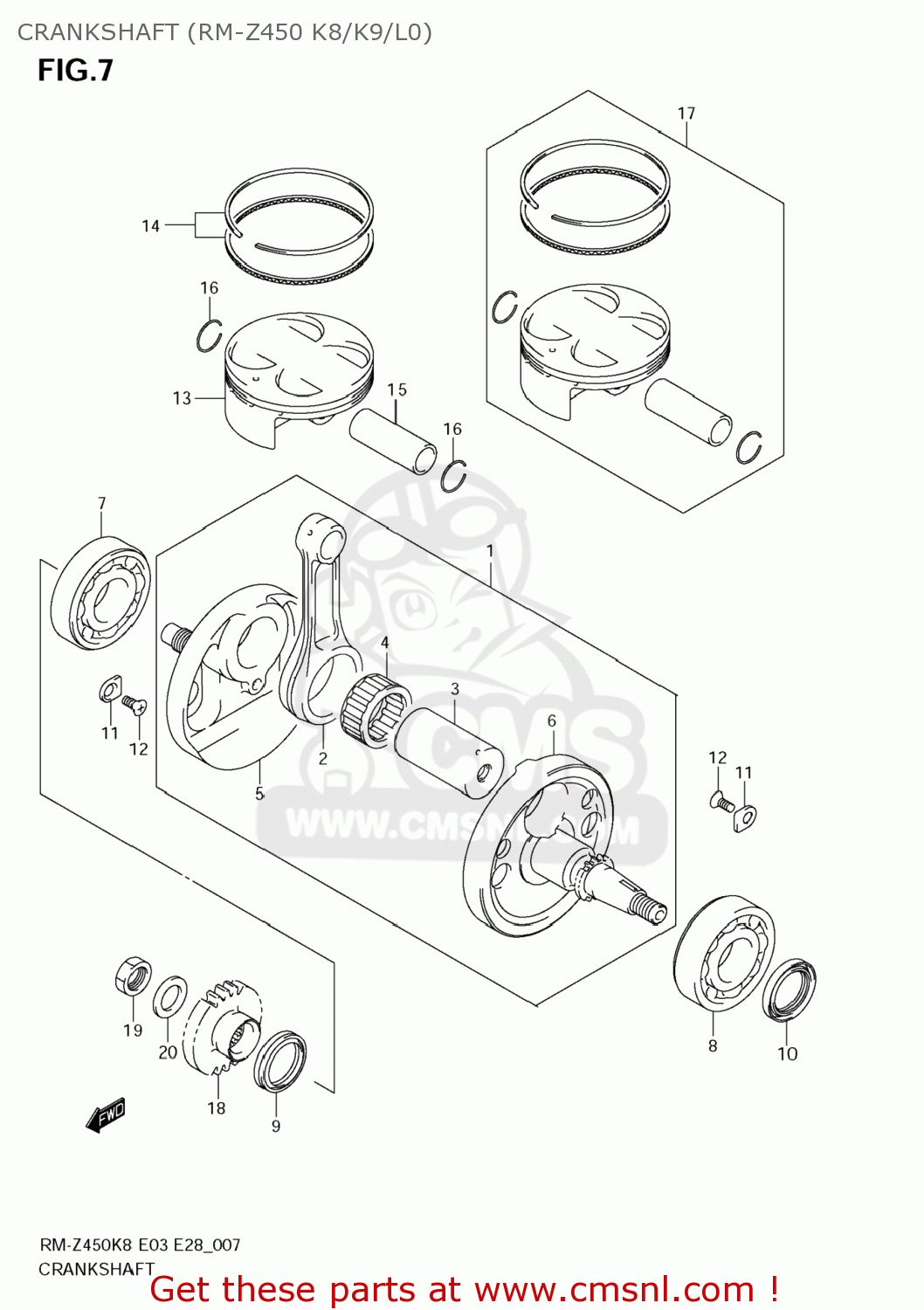

Crankshaft (rm-z450 k8/k9/l0) diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

CRANKSHAFT (RM-Z450 K8/K9/L0) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

CRANKSHAFT (RM-Z450 K8/K9/L0) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

1220028H01
ref: 1-1

CRANKSHAFT ASS

€ 966.50

1-2

1220028H11
ref: 1-2
12200-28H12

CRANKSHAFT ASS

€ 966.50

2

1216028H000B0
ref: 2

CONNECTING ROD ASSY

€ 121.00

3

1221035G02
ref: 3

PIN,CRANK

€ 56.50

4

09263340140B0
ref: 4

BEARING(34X42X20)

€ 74.50

5-1

1222028H00
ref: 5-1

CRANKSHAFT,R

€ 232.50

5-2

1222028H10
ref: 5-2

CRANKSHAFT,R

€ 232.50

6-1

1226128H00
ref: 6-1

CRANKSHAFT,L

€ 234.00

6-2

1226128H10
ref: 6-2

CRANKSHAFT,L

€ 234.00

7

0926230115
ref: 7

BEARING(30X72X19)

€ 49.50

8

0926232017
ref: 8

BEARING(32X75X20)

€ 76.00

9

0928330061
ref: 9

SEAL,OIL(30X40X7)

€ 17.00

10

0928332037
ref: 10

SEAL,OIL(32X47X6)

€ 14.00

11

2474120A00
ref: 11

RETAINER,COUNTER BEARING,R

€ 2.00

12

0912606011
ref: 12

SCREW(6X12)

€ 2.00

13-1

1211128H000F0
ref: 13-1

PISTON

€ 158.00

13-2

1211128H100F0
ref: 13-2

PISTON

€ 158.00

14

1214028810
ref: 14

RING SET,PISTON

€ 45.50

15

1215135G01
ref: 15

PIN,PISTON

€ 14.50

16

0938119001
ref: 16

RING,SNAP

€ 2.50

17-1

1211028810
ref: 17-1

PISTON KIT

€ 211.50

17-1

1211028810
ref: 17-1

PISTON KIT

€ 211.50

17-2

1211028820
ref: 17-2

PISTON KIT

€ 204.00

17-2

1211028820
ref: 17-2

PISTON KIT

€ 204.00

18

2111128H00
ref: 18

GEAR,PRIMARY DRIVE

€ 54.50

19

0914016036
ref: 19

NUT

€ 12.00

20

0916416002
ref: 20

WASHER

€ 3.00
