FRONT DAMPER

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

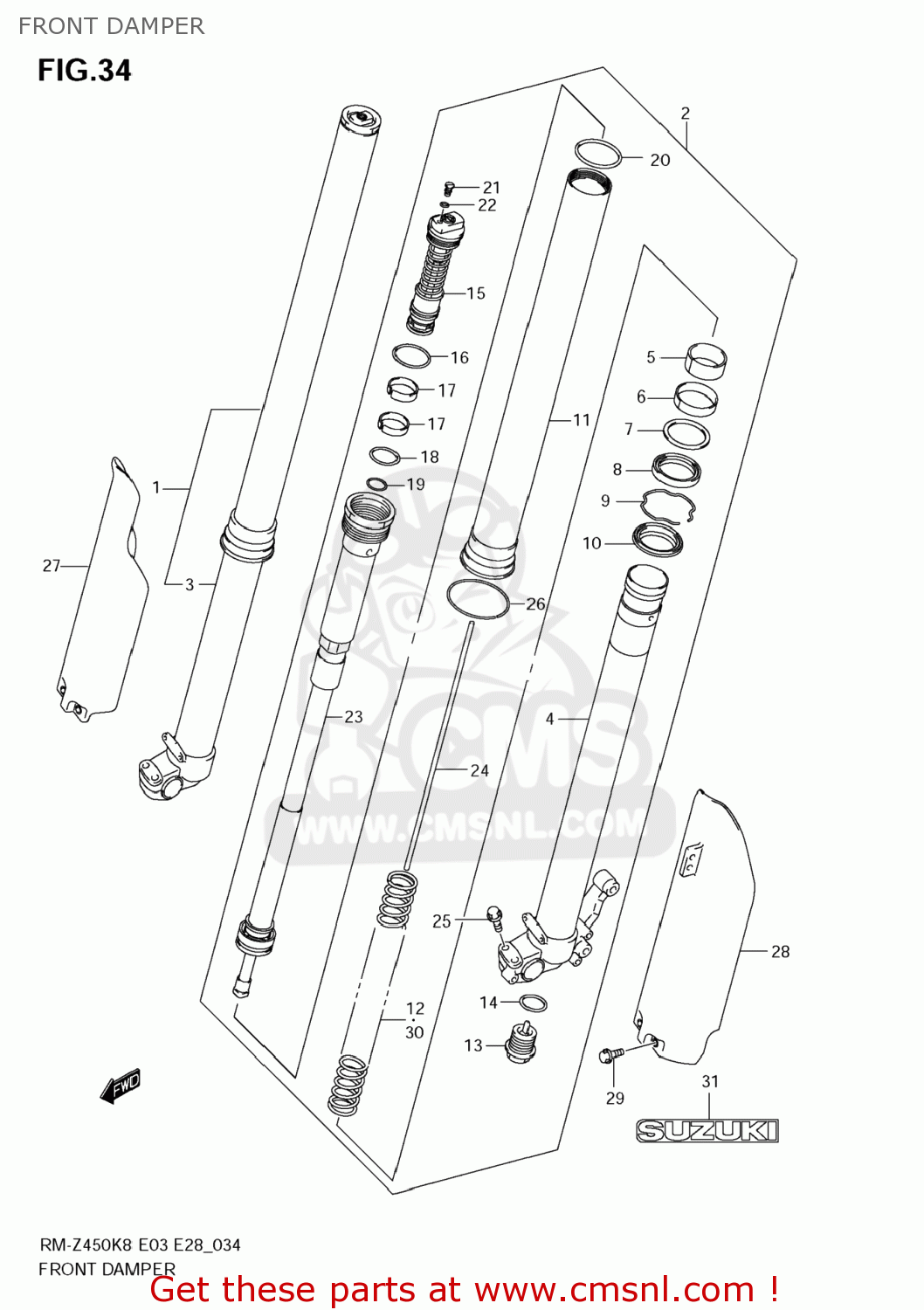

Front damper diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

FRONT DAMPER RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450
FRONT DAMPER RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450
FRONT DAMPER RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1-1
5110328H00
ref: 1-1
DAMPER ASSY,FR FORK,R
5110328H00
€ 1,477.50
1-2
5110328H10
ref: 1-2
DAMPER ASSY,FR FORK,R
€ 2,198.00
2-1
5110428H00
ref: 2-1
DAMPER ASSY,FR FORK,L
5110428H00
€ 1,477.50
2-2
5110428H10
ref: 2-2
DAMPER ASSY,FR FORK,L
€ 2,198.00
3-1
5111035G30
ref: 3-1
TUBE,INNER,R
5111035G30
€ 364.00
3-2
5111028H10
ref: 3-2
TUBE,INNER,R
€ 327.50
4-1
5112035G30
ref: 4-1
TUBE,INNER,L
€ 364.00
4-2
5112028H10
ref: 4-2
TUBE,INNER,L
€ 327.50
5-1
5112136F00
ref: 5-1
BUSH,SLIDE
5112136F00
€ 11.50
5-2
5112128H10
ref: 5-2
BUSH
€ 11.50
6-1
5116736F00
ref: 6-1
BUSH,GUIDE
5116736F00
€ 13.00
6-2
5116728H10
ref: 6-2
BUSH,GUIDE
5116728H10
€ 18.50
7
5115836F00
ref: 7
SPACER,SEAL
5115836F00
€ 5.00
8
5115337F80
ref: 8
SEAL,OIL
5115337F80
€ 13.50
9
5115627C40
ref: 9
RING,OIL SEAL STOPPER
5115627C40
€ 3.50
10
5117337F80
ref: 10
SEAL,DUST
5117337F80
€ 16.50
11
5113028H01
ref: 11
TUBE,OUTER
€ 727.50
12-1
5117128H00
ref: 12-1
SPRING,FR(K=0.47)
€ 112.00
12-2
5117128H40
ref: 12-2
SPRING,FR(K=0.5)
€ 95.50
13
5117037FC0
ref: 13
BOLT,CTR
5117037FC0
€ 139.50
14
5117736E20
ref: 14
O RING
5117736E20
€ 2.50
15-1
5135128H00
ref: 15-1
BOLT
€ 205.50
15-2
5135128H10
ref: 15-2
BOLT,FORK
€ 300.00
16
5111737F80
ref: 16
O RING
5111737F80
€ 3.50
17-1
5112310H10
ref: 17-1
BUSH,FORK BOLT SLIDE
5112310H10
€ 16.00
17-2
5112328H10
ref: 17-2
BUSH
5112328H10
€ 18.00
18
5117436E40
ref: 18
O RING
5117436E40
€ 2.50
19
5117537F80
ref: 19
O RING
5117537F80
€ 3.50
20
5111837F80
ref: 20
O RING
5111837F80
€ 4.00
21
5135736F20
ref: 21
BOLT,PLUG
5135736F20
€ 8.00
22
5135828E30
ref: 22
O RING,PLUG
5135828E30
€ 2.50
23-1
5119028H00
ref: 23-1
DAMPER
€ 605.50
23-2
5119028H10
ref: 23-2
ROD,DAMPER
5119028H10
€ 913.50
24
5119110H10
ref: 24
ROD,PUSH
5119110H10
€ 13.50
25
5132837F80
ref: 25
BOLT
5132837F80
€ 5.00
26
5121137FC0
ref: 26
STOPPER,RING
5121137FC0
€ 5.00
27
5150128H00
ref: 27
PROTECTOR,FR FORK,R
5150128H00
€ 83.50
28
5151128H00
ref: 28
PROTECTOR,FR FORK,L
5151128H00
€ 83.50
29
0911106098
ref: 29
BOLT(6X10)
0911106098
€ 2.00
30-1
5117128H10
ref: 30-1
SPRING,FR(K=0.45)
5117128H10
€ 112.00
30-2
5117128H20
ref: 30-2
SPRING,FR(K=0.49)
€ 112.00
30-3
5117110H30
ref: 30-3
SPRING,FR(K=0.46)
€ 160.00
30-4
5117128H30
ref: 30-4
SPRING,FR(K=0.48)
€ 117.50
31
6866129F00DPZ
ref: 31
EMBLEM,SUZUKI
6866129F00DPZ
€ 25.00
