REAR MASTER CYLINDER

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

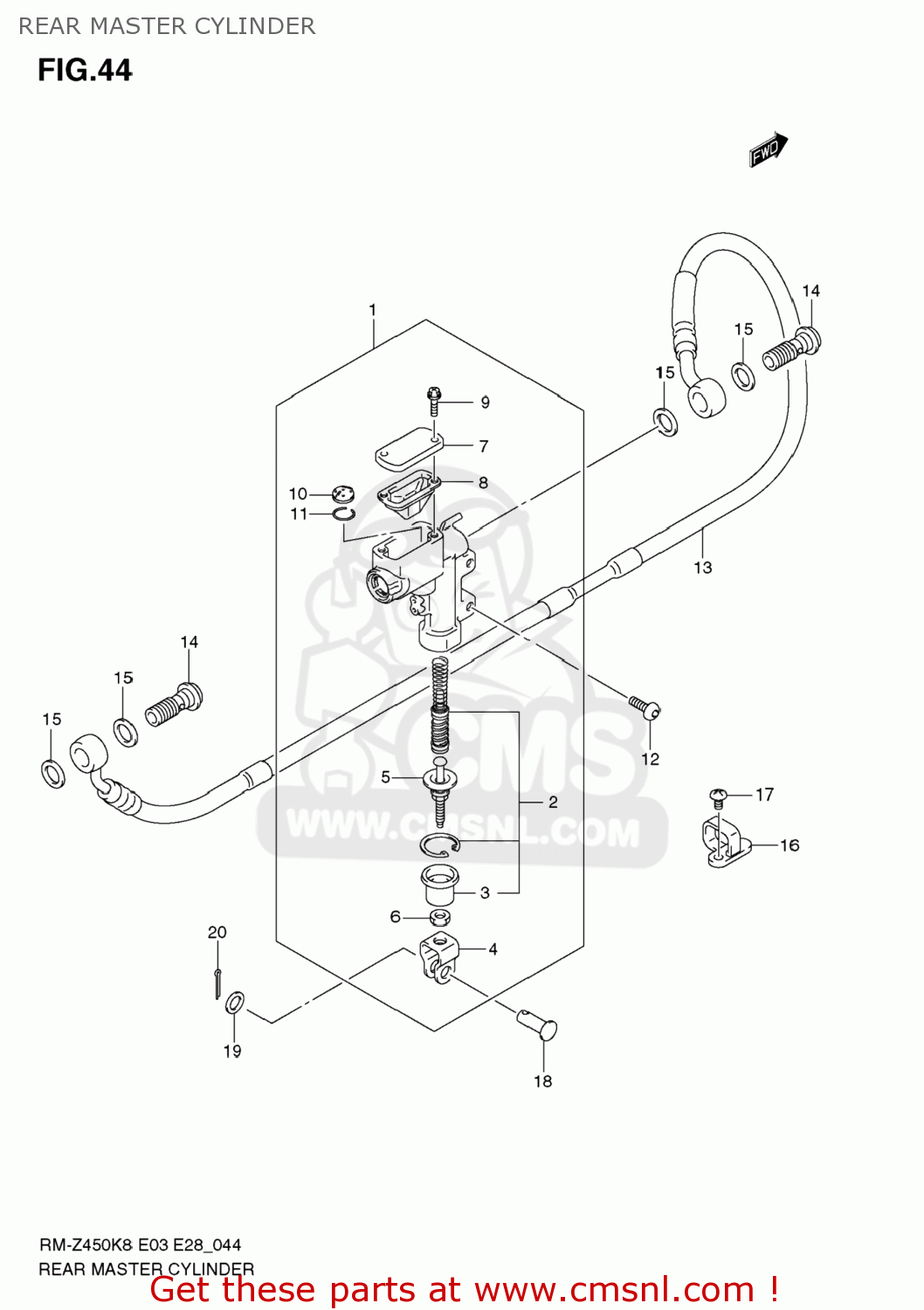

Rear master cylinder diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

REAR MASTER CYLINDER RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

REAR MASTER CYLINDER RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

6960428H00
ref: 1

CYLINDER ASSY,RR MASTER

€ 259.00

2

6960035810
ref: 2

PISTON / CUP S

€ 29.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969235G00
ref: 4

YOKE

€ 14.00

5

6967028H00
ref: 5

ROD,PUSH

€ 17.50

6

5121277500
ref: 6

NUT

€ 5.00

7

6966937F20
ref: 7

CAP

€ 29.50

8

6966737F20
ref: 8

DIAPHRAGM

€ 9.00

9

6968937F30
ref: 9

SCREW

€ 2.50

10

5974836E00
ref: 10

SEPARATOR

€ 5.00

11

6974436E00
ref: 11

RING

€ 2.00

12

0913906139
ref: 12

SCREW(6X16)

€ 3.00

13

6948028H00
ref: 13

HOSE,REAR BRAK

€ 79.50

14

0936010065
ref: 14

BOLT UNION

€ 5.50

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

6119627C30
ref: 16

GUIDE,RR BRAKE

€ 5.50

17

021420510A
ref: 17
02142-0510B

SCREW

€ 2.50

18

0920008048
ref: 18

PIN(8X20)

€ 3.00

19

0916008090
ref: 19

WASHER(8.5X14X1.6)

€ 2.50

20

041112015A
ref: 20

PIN

€ 1.50
