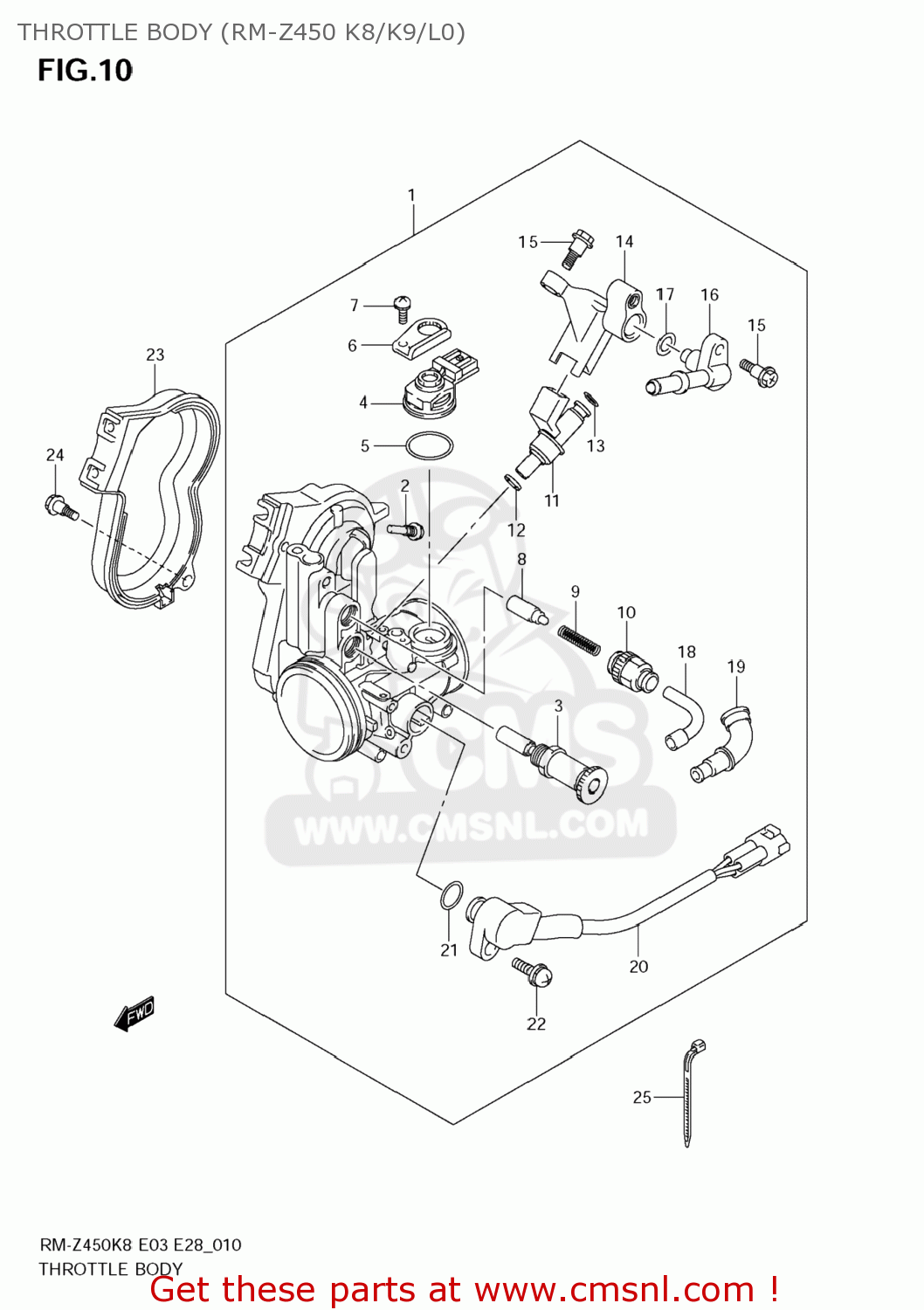

THROTTLE BODY (RM-Z450 K8/K9/L0)

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

Throttle body (rm-z450 k8/k9/l0) diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

THROTTLE BODY (RM-Z450 K8/K9/L0) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

THROTTLE BODY (RM-Z450 K8/K9/L0) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

1340028H00
ref: 1-1

BODY ASSY,THRO

€ 488.00

1-2

1340028H10
ref: 1-2

BODY ASSY,THROTTLE

€ 414.00

1-3

1340028H20
ref: 1-3

BODY ASSY,THROTTLE

€ 720.50

2

1329610H00
ref: 2

SCREW

€ 20.50

3

1341028H00
ref: 3

STARTER

€ 57.50

4

1562005H00
ref: 4

SENSOR,MAP

€ 114.50

5

1562105H00
ref: 5

O RING

€ 10.00

6

1356528H00
ref: 6

PLATE,STAY

€ 15.50

7

1360115F20
ref: 7

SCREW

€ 2.50

8

1341128H00
ref: 8

VALVE,STARTER

€ 21.00

9

1327145G00
ref: 9

SPRING

€ 3.00

10

1358145G00
ref: 10

HOLDER,CABLE

€ 2.50

11

1571028H00
ref: 11

INJECTOR ASSY,FUEL

€ 207.00

12

1572221H00
ref: 12

RING,SEAL

€ 9.50

13

1572121H00
ref: 13

O RING

€ 7.00

14

1347128H00
ref: 14

PIPE,FUEL

€ 40.00

15

1345228H00
ref: 15

SCREW

€ 4.50

16

1368528H00
ref: 16

JOINT

€ 27.00

17

1572124F00
ref: 17

O RING

€ 7.50

18

1357928H00
ref: 18

GUIDE,CABLE

€ 8.00

19

1368145G00
ref: 19

CAP

€ 3.00

20-1

1358028H00
ref: 20-1
13580-28H01

SENSOR ASSY,TH

€ 170.50

20-2

1358028H10
ref: 20-2

SENSOR ASSY,THROTTLE

€ 151.00

21

1357540F00
ref: 21

O RING

€ 3.50

22

1360528H00
ref: 22

SCREW

€ 2.50

23

1348428H00
ref: 23

COVER

€ 23.50

24

1360128H00
ref: 24

SCREW

€ 2.50

25

0940710403
ref: 25

CLAMP(L:95)

€ 2.50
