REAR SHOCK ABSORBER (RM-Z450 L0/L1)

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

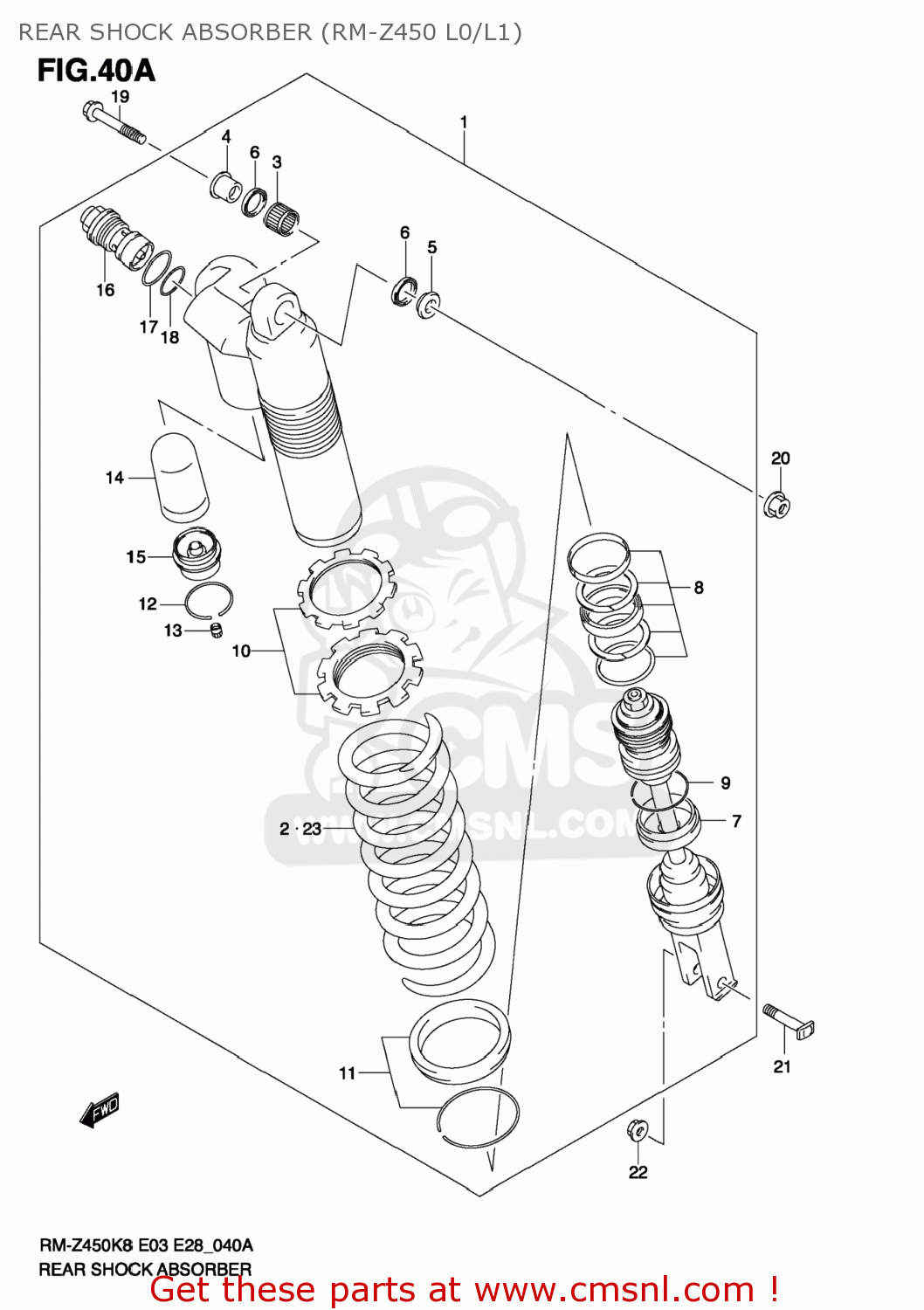

Rear shock absorber (rm-z450 l0/l1) diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

REAR SHOCK ABSORBER (RM-Z450 L0/L1) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

REAR SHOCK ABSORBER (RM-Z450 L0/L1) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

6210028H50YKS
ref: 1-1

ABSORBER ASSY,RR SHOCK

€ 1,390.50

1-2

6210028H40YKS
ref: 1-2

ABSORBER ASSY,RR SHOCK

€ 1,388.00

2

6221137FM0
ref: 2

SPRING,RR(K=5.6)

€ 381.50

3

0926316033
ref: 3

BEARING(16X22X12)

€ 19.00

4

6268436F00
ref: 4

SPACER,UPPER BRG,R

€ 12.50

5

6268536F00
ref: 5

SPACER,UPPER BRG,L

€ 9.00

6

0928416005
ref: 6

SEAL,OIL(16X22X2.5)

€ 5.50

7

6212028H00
ref: 7

ROD,PISTON

€ 584.50

8

6215028H30
ref: 8

O RING SET

€ 78.00

9

6227936E80
ref: 9

RING,STOPPER

€ 5.50

10

6219036F00
ref: 10

ADJUSTER SET

€ 73.50

11

6222036F00
ref: 11

SPRING SEAT SET

€ 41.50

12

6227836E00
ref: 12

RING,STOPPER

€ 6.00

13

5219446686
ref: 13

CAP,AIR VALVE

€ 4.50

14

6227336F00
ref: 14

BLADDER

€ 48.00

15

6227528H30
ref: 15

CAP,CHAMBER

€ 35.50

16

6213028H30
ref: 16

BOLT,PLUG

€ 112.50

17

6213128E00
ref: 17

O RING

€ 3.50

18

5117436EB0
ref: 18

O RING

€ 5.00

19

6231128H00
ref: 19

BOLT,RR SHOCK ABSORBER UPR

€ 4.00

20

0915910115
ref: 20

NUT

€ 4.00

21

6222137F30
ref: 21

BOLT,RR SHOCK ABSORBER LWR

€ 4.00

22

0915910067
ref: 22

NUT

€ 4.00

23-1

6221110H10
ref: 23-1

SPRING(K:5.2)

€ 348.00

23-2

6221110H00
ref: 23-2

SPRING,RR(K=5.4)

€ 354.50

23-3

6221128H00
ref: 23-3

SPRING,RR(K=5.8)

€ 303.00

23-4

6221135G40
ref: 23-4

SPRING(K:5.9)

€ 343.00

23-5

6221128H30
ref: 23-5

SPRING,RR(K=6.0)

€ 423.00
