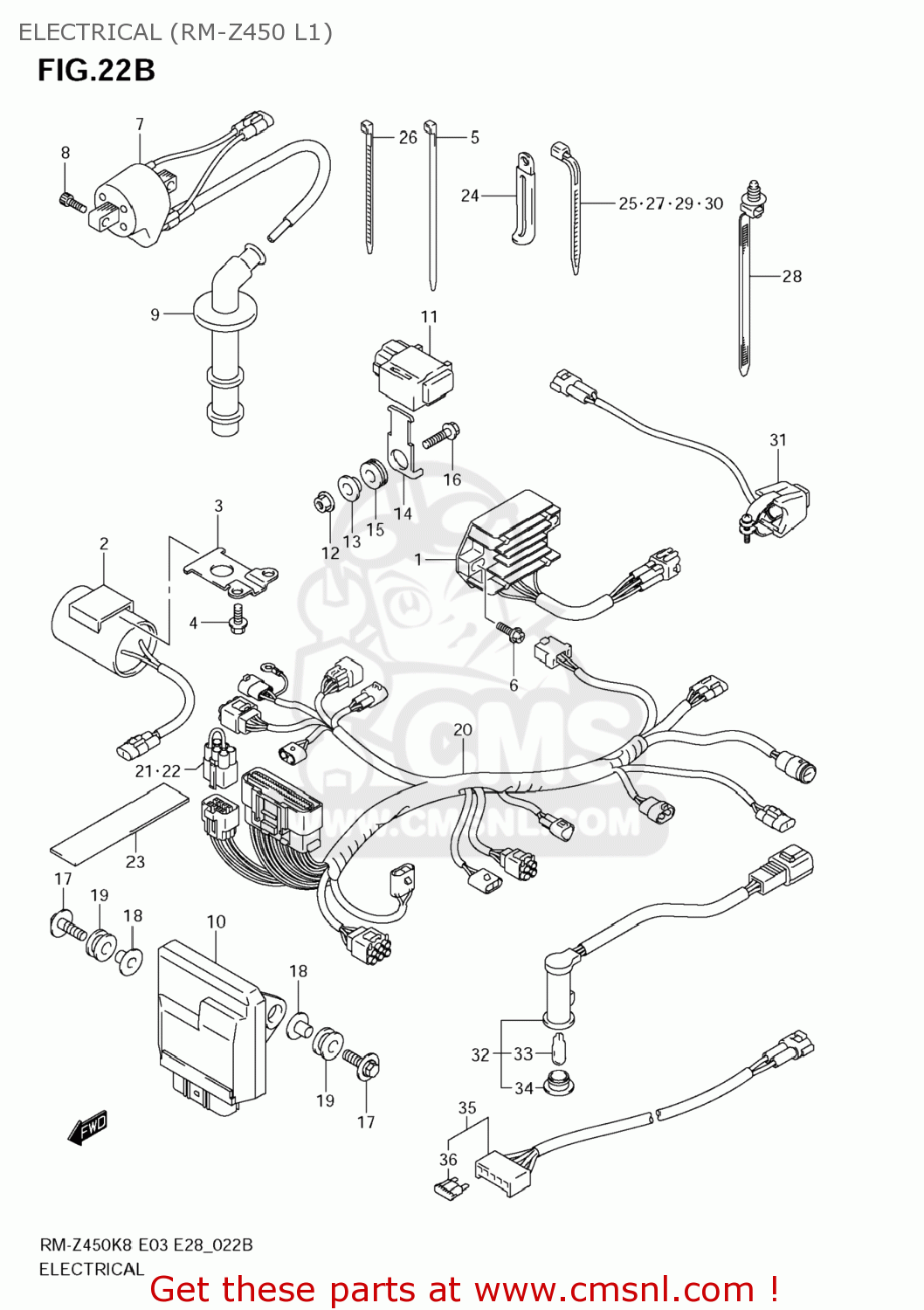

ELECTRICAL (RM-Z450 L1)

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

Electrical (rm-z450 l1) diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

ELECTRICAL (RM-Z450 L1) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

ELECTRICAL (RM-Z450 L1) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

3280028H00
ref: 1

RECTIFIER ASSY

€ 121.00

2

3364028H00
ref: 2

CONDENSER ASSY

€ 93.50

3

3364128H00
ref: 3

BRACKET,CONDENSER

€ 6.00

4

0910306188
ref: 4

BOLT(6X10)

€ 2.00

5

0940710404
ref: 5

CLAMP(L:100)

€ 4.00

6

021620620C
ref: 6

SCREW

€ 2.00

7

3341035G10
ref: 7

COIL ASSY,IGNITION

€ 78.50

8

071300620A
ref: 8

BOLT

€ 3.00

9

3351028H00
ref: 9

CAP ASSY,SPARK PLUG

€ 28.00

10

3292028H60
ref: 10

CONTROL UNIT,FI

€ 362.00

11

3396006G10
ref: 11

SENSOR ASSY,FUEL CUT

€ 75.00

12

083161006A
ref: 12

NUT

€ 2.50

13

0918006331
ref: 13

SPACER(6.2X8.4X10.9)

€ 2.50

14

3396128H10
ref: 14

BRACKET,FUEL CUT SENSOR

€ 4.50

15

0932008501
ref: 15

CUSHION

€ 3.00

16

015470620A
ref: 16

BOLT

€ 2.50

17

0911606182
ref: 17

BOLT(6X20)

€ 3.00

18

0918006331
ref: 18

SPACER(6.2X8.4X10.9)

€ 2.50

19

0932008076
ref: 19

GROMMET

€ 6.50

20

3661028H30
ref: 20

HARNESS,WIRING

€ 373.00

21

3685228H00
ref: 21

WIRE,SHORT

€ 9.50

22

3685249H00
ref: 22

WIRE,SHORT

€ 9.00

23

3693082010
ref: 23

COVER,HARNESS

€ 2.00

24

0940406429
ref: 24

CLAMP(L:45)

€ 2.50

25

0940711401
ref: 25

CLAMP(L:95)

€ 2.50

26

0940710403
ref: 26

CLAMP(L:95)

€ 2.50

27

0940714403
ref: 27

CLAMP(L:125)

€ 2.50

28

0940717403
ref: 28

CLAMP(L:154)

€ 5.50

29

0940718402
ref: 29

CLAMP(L:165)

€ 2.50

30

0940725401
ref: 30

CLAMP(L:235)

€ 4.00

31

3782036E00
ref: 31

SWITCH ASSY,ENGINE STOP

€ 21.00

32

3638028H00
ref: 32

LAMP ASSY,FI INDICATOR

€ 59.50

33

0947112028
ref: 33

BULB(12V3.4W,T10)

€ 3.50

34

3632128H00
ref: 34

LENS(RED)

€ 8.00

35

3689028H00
ref: 35

WIRE,BATTERY

€ 28.50

36

0948110101
ref: 36

FUSE(10A)

€ 2.50
