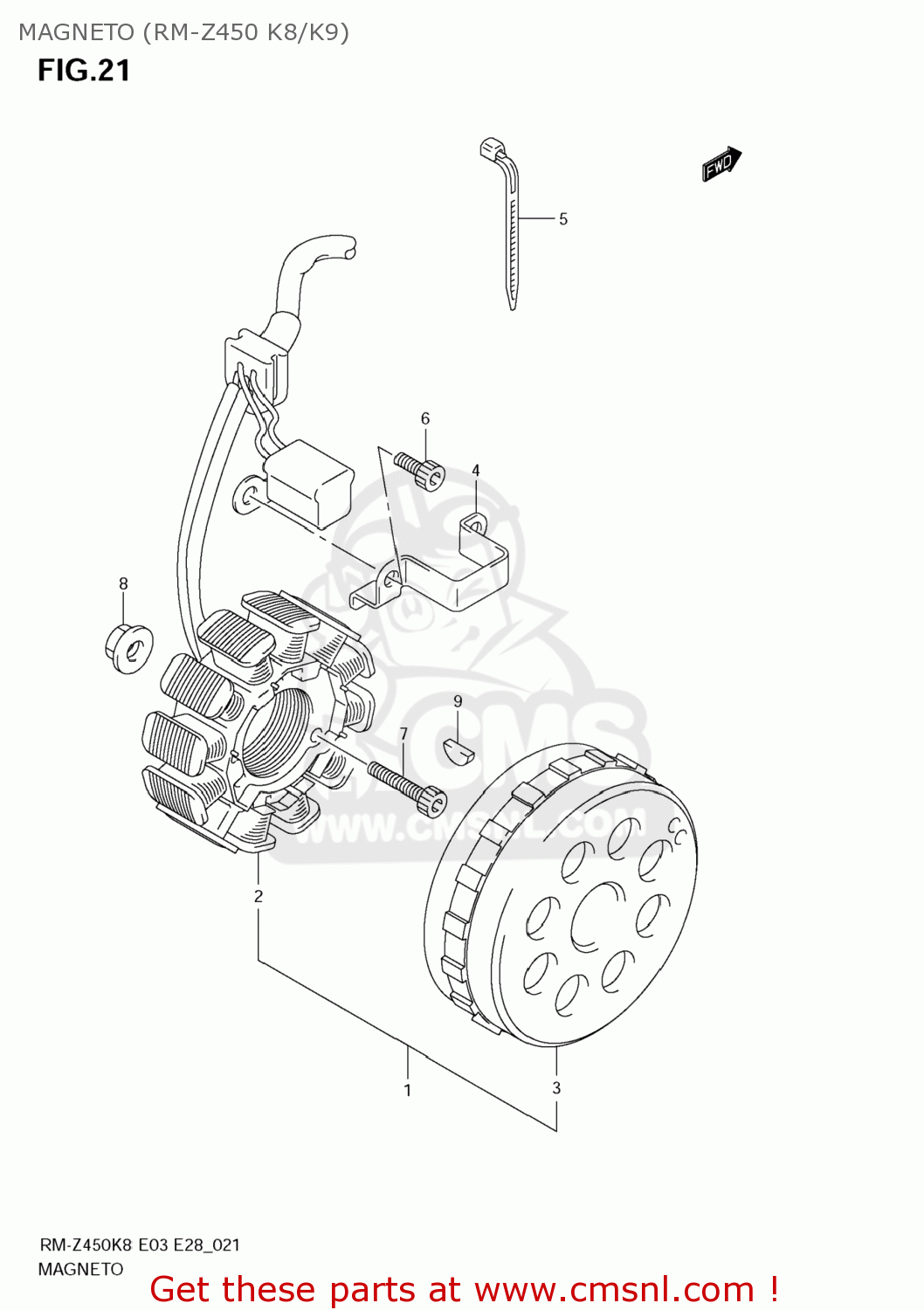

MAGNETO (RM-Z450 K8/K9)

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

Magneto (rm-z450 k8/k9) diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

MAGNETO (RM-Z450 K8/K9) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

MAGNETO (RM-Z450 K8/K9) RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

3210028H00
ref: 1

MAGNETO ASSY

€ 600.00

2

3210128H00
ref: 2

STARTER ASSY

€ 496.50

3

3210228H00
ref: 3

ROTOR ASSY

€ 335.50

4

3237135G00
ref: 4

CLAMP,MAGNETO LEAD

€ 5.00

5

0940714403
ref: 5

CLAMP(L:125)

€ 2.50

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300525A
ref: 7

BOLT

€ 1.50

8

083161012B
ref: 8

NUT

€ 2.00

9

0834131039
ref: 9

KEY

€ 2.00
