WATER PUMP

RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

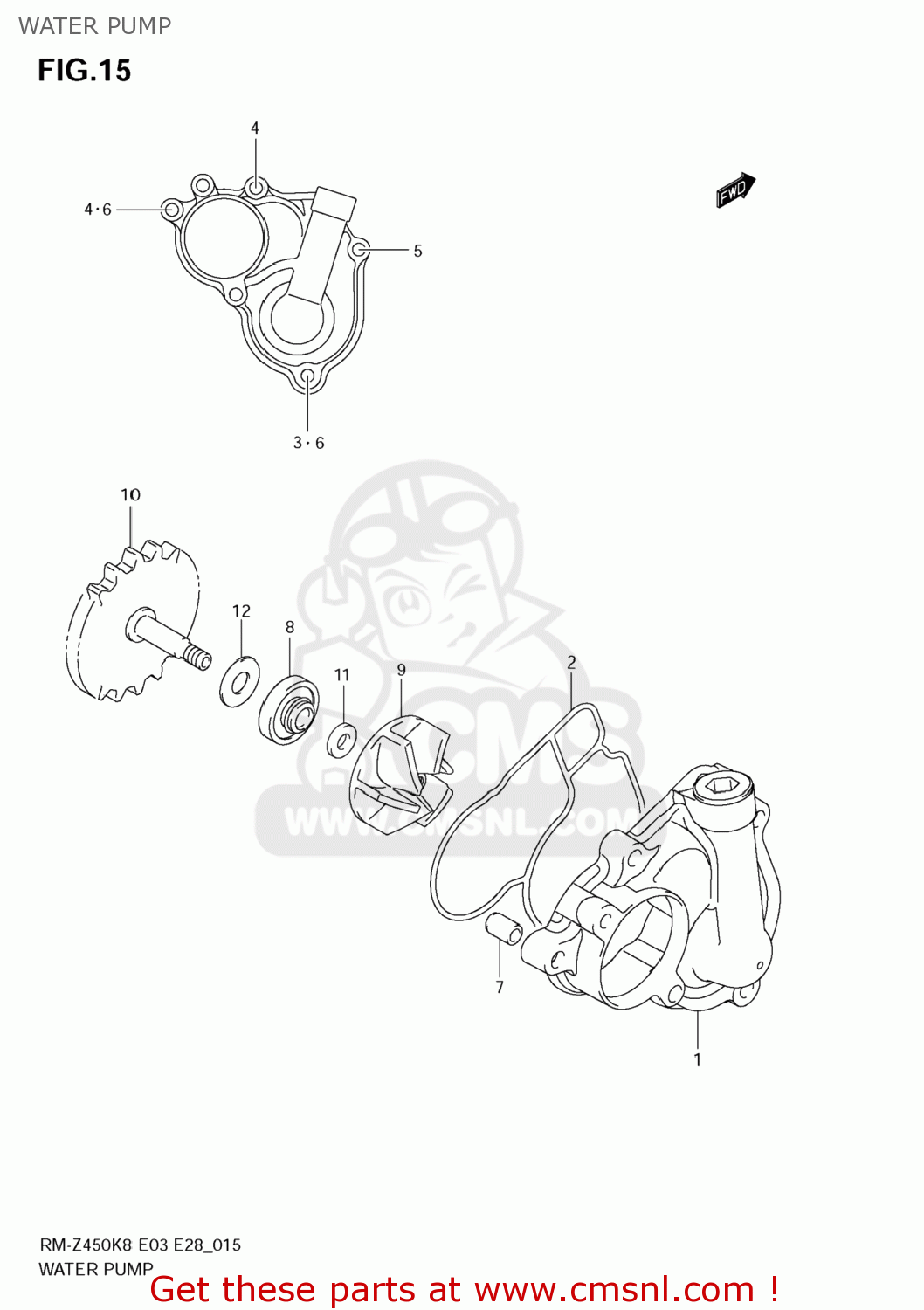

Water pump diagram RM-Z450 2011 (L1) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1741028H00
ref: 1

CASE,WATER PUMP

€ 64.00

1743128H00
ref: 2

O RING,WATER PUMP CASE

€ 8.50

015470630A
ref: 3

BOLT

€ 2.50

015470660A
ref: 4

BOLT

€ 2.50

015470670A
ref: 5

BOLT

€ 2.50

0916806023
ref: 6

GASKET(5.8X13X1.2) (NAS)

€ 2.00

0920608001
ref: 7

PIN(6.2X8X11)

€ 2.00

1746137F00
ref: 8

SEAL,WATER PUMP OIL

€ 5.00

1749135G00
ref: 9

IMPELLER,WATER PUMP

€ 13.00

1751028H01
ref: 10

SHAFT,WATER PUMP

€ 53.00

0918106003
ref: 11

SHIM(6X14X1)

€ 2.00

0918108186
ref: 12

SHIM(8X18X0.5)

€ 1.50
