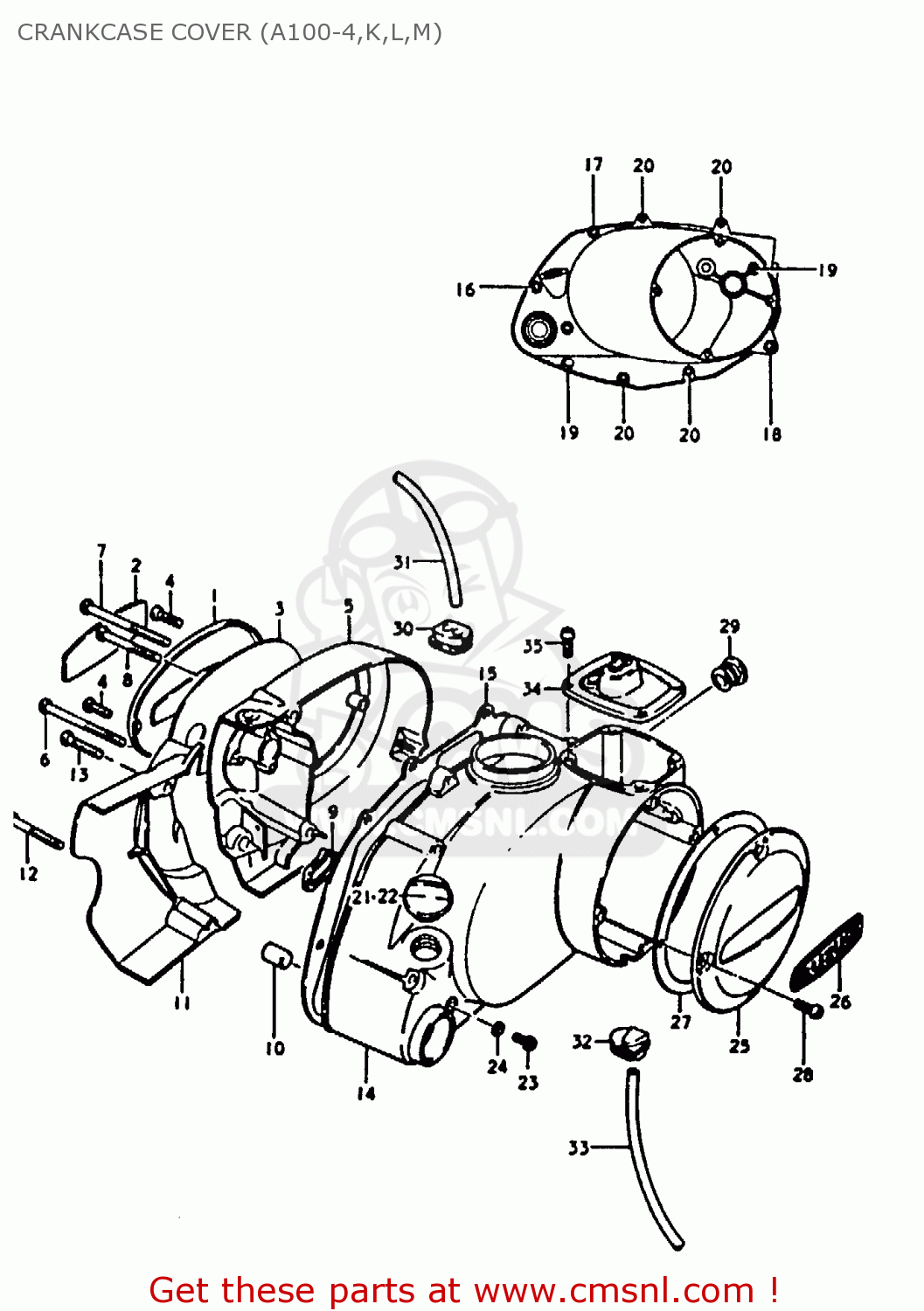

CRANKCASE COVER (A100-4,K,L,M)

ref

part #

description

quantity

1

1138112002
ref: 1

CAP,MAGNETO INSPECTION

€ 13.00

2

6823334000
ref: 2

EMBLEM,CONTACT BREAKER CAP

€ 19.50

3

1149112000
ref: 3

GASKET

€ 7.50

4

0211205088
ref: 4

SCREW

€ 2.00

5-1

1135112002
ref: 5-1
WITHOUT LUSTER

COVER,MAGNETO

€ 0.00

5-2

1135112003
ref: 5-2
LUSTROUS

COVER, MAGNETO

€ 0.00

6-1

0211206658
ref: 6-1

SCREW 6X65

€ 2.00

7

0211206508
ref: 7

SCREW

€ 2.50

8

0211206408
ref: 8

SCREW

€ 2.00

9

1139312000
ref: 9

CAP,MAGNETO COVER SEAL

€ 5.00

10

0421109129
ref: 10

PIN

€ 2.00

11-1

1136112001
ref: 11-1
WITHOUT LUSTER

COVER,SPROCKET

€ 35.50

11-2

1136012000
ref: 11-2
LUSTROUSFROM 11361-1

COVER, ENGINE SPROCKET

€ 35.50

12

0211206458
ref: 12

SCREW (6X45)

€ 2.00

13

0211206307
ref: 13

SCREW

€ 2.50

14-1

1134112003
ref: 14-1
WITHOUT LUSTER

COVER,CLUTCH

€ 3.00

14-2

1134112005
ref: 14-2
LUSTROUS

COVER, CLUTCH

€ 3.00

15

1148212000
ref: 15

GASKET,CLUTCH COVER (MCA)

€ 13.50

16

0211206708
ref: 16

SCREW 6X70

€ 3.00

17

0211206508
ref: 17

SCREW

€ 2.50

18

0211206458
ref: 18

SCREW (6X45)

€ 2.00

19

0211206358
ref: 19

SCREW (6X35)

€ 2.50

20

0211206258
ref: 20

SCREW

€ 2.00

21

0925920003
ref: 21
THREAD TYPE

PLUG,OIL FILTER

€ 8.00

23

0912806004
ref: 23

SCREW(6X10)

€ 1.50

24

0916806001
ref: 24
6.2X11X1

GASKET(6.2X11X1) (NAS)

€ 1.50

25

1138312001
ref: 25

CAP,CARBURETOR INSPECTION

€ 23.50

26

6823334000
ref: 26

EMBLEM,CONTACT BREAKER CAP

€ 19.50

27

1149212002
ref: 27

GASKET (MCA)

€ 2.50

28

0211205168
ref: 28

SCREW

€ 2.50

29

0925014002
ref: 29

Plug

€ 4.50

30

0930904001
ref: 30

GROMMET

€ 4.00

31

0934403019
ref: 31
3X5X300

HOSE

€ 6.50

32

0930904004
ref: 32

GROMMET

€ 3.50

33

0934403014
ref: 33
3X5X140

HOSE

€ 6.50

34

1144012001
ref: 34

COVER,CARBURETOR,TOP

€ 20.00

35

0211205168
ref: 35

SCREW

€ 2.50
