HEADLAMP (A100-4,K,L)

A100-4 1978 (C) GENERAL EXPORT (E01)

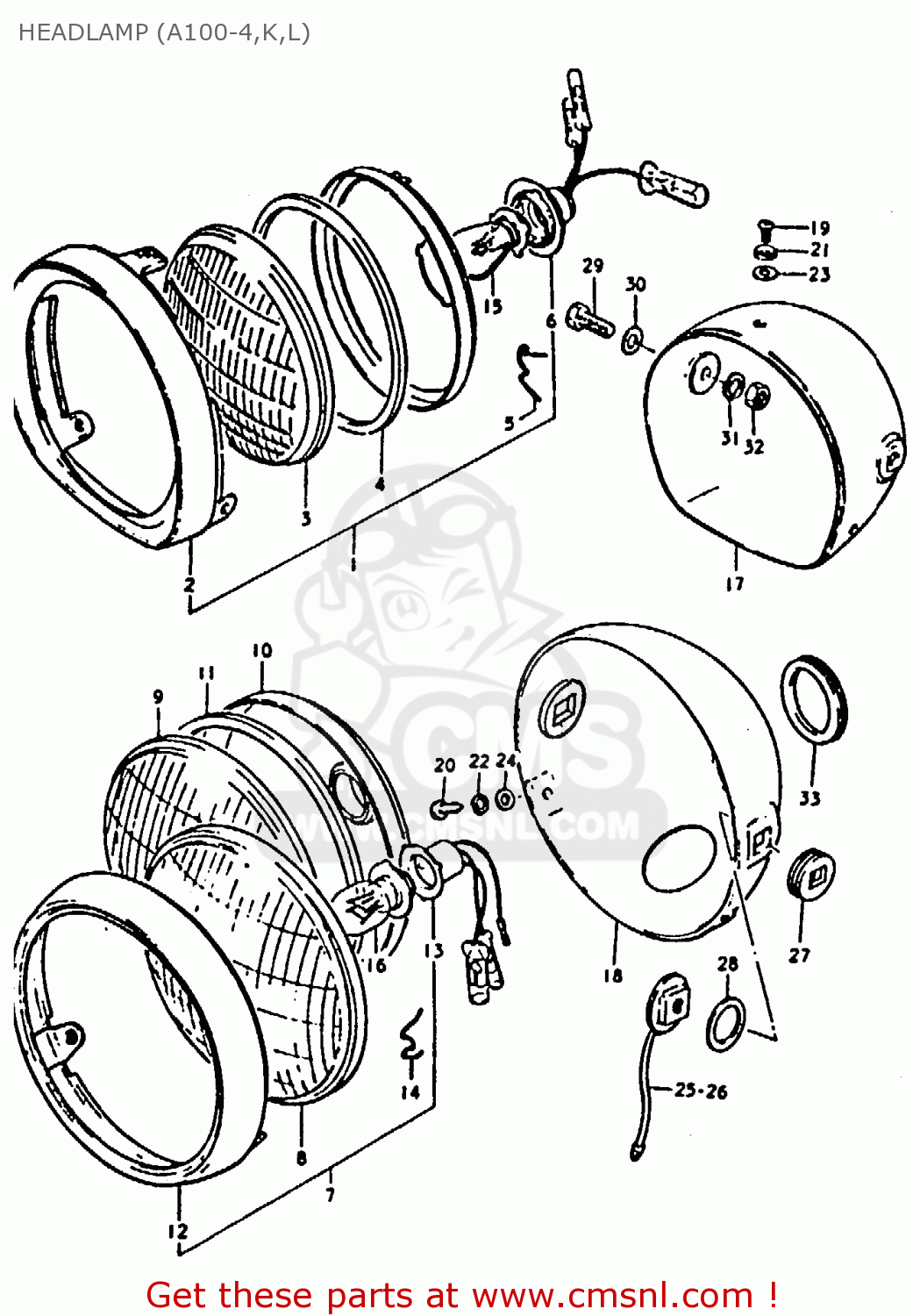

Headlamp (a100-4,k,l) diagram A100-4 1978 (C) GENERAL EXPORT (E01)

HEADLAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
HEADLAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
HEADLAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3510025220999
ref: 1
HEADLAMP ASSY
€ 59.00
2
3511125220
ref: 2
RIM
€ 17.50
3
3512423020
ref: 3
LENS
3512423020
€ 9.00
4
3512523020
ref: 4
GASKET
3512523020
€ 3.50
5
3512822020
ref: 5
SPRING,HEAD LAMP UNIT
3512822020
€ 1.50
6
3517125220
ref: 6
SOCKET
€ 17.50
7
3510025323999
ref: 7
FROM 35100-28023 WIT
HEADLAMP ASSEMBLY
3510025323999
€ 89.00
8
3512127220
ref: 8
FROM 35121-28021
UNIT
3512127220
€ 80.00
9
3512427222
ref: 9
TO 35124-25324
LENS,HEADLAMP
3512427222
€ 18.50
10
3512325322
ref: 10
REFLECTOR
3512325322
€ 30.50
11
3512527222
ref: 11
GASKET (NAS)
3512527222
€ 5.50
12
3511127221
ref: 12
RIM,HEADLAMP
3511127221
€ 33.50
13
3517128021
ref: 13
SOCKET
€ 22.50
14
3512827221
ref: 14
SPRING
3512827221
€ 2.50
15
0947106029
ref: 15
6V,25/25W
BULB(6V25/25W,STANLEY,A7007)
0947106029
€ 9.00
16
0947106015
ref: 16
6V,25/25W
BULB
0947106015
€ 7.50
17-1
5181012100138
ref: 17-1
HOUSING, HEADLAMP
€ 35.00
17-2
5181012100195
ref: 17-2
HOUSING, HEADLAMP
€ 35.00
17-3
5181012100157
ref: 17-3
HOUSING, HEADLAMP
€ 35.00
18-1
5181026000138
ref: 18-1
HOUSING, HEADLAMP
€ 63.00
18-2
5181026000195
ref: 18-2
HOUSING, HEADLAMP
€ 63.00
18-3
5181026000157
ref: 18-3
HOUSING, HEADLAMP
€ 63.00
19
0213204128
ref: 19
SCREW
0213204128
€ 2.00
20
0211204128
ref: 20
SCREW
0211204128
€ 1.50
21
0916504004
ref: 21
WASHER
0916504004
€ 3.00
22
0832121048
ref: 22
LOCK WASHER
0832121048
€ 2.00
23
0916104005
ref: 23
WASHER(4X12.5X0.3)
0916104005
€ 1.50
24
0832221048
ref: 24
WASHER
0832221048
€ 2.00
25-1
5182127301
ref: 25-1
9.3 TO 51820-36200 U
SPACER, HOUSING RH
5182127301
€ 9.00
25-2
5182036200
ref: 25-2
L:10
PLATE,HEADLAMP HOUSING
5182036200
€ 9.00
26-1
5182227301
ref: 26-1
L:9.3 TO 51860-36200
SPACER, HOUSING LH
5182227301
€ 9.00
26-2
5186036200
ref: 26-2
L:10
SPACER
5186036200
€ 9.00
27-1
5182727301
ref: 27-1
L:11.1
CUSHION,HEADLAMP HOUSING
5182727301
€ 3.00
27-2
5182727302
ref: 27-2
L:11.7
CUSHION,HEADLAMP HOUSING
5182727302
€ 3.00
28
5182825300
ref: 28
21X27X0.7
WASHER,HEADLAMP HOUSING
€ 2.00
29-1
0120408257
ref: 29-1
BOLT
0120408257
€ 2.00
29-2
0120408207
ref: 29-2
BOLT
0120408207
€ 3.00
30
0832211088
ref: 30
WASHER
0832211088
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
0832121088
€ 2.00
32
0831012088
ref: 32
NUT
0831012088
€ 2.00
33
5184531031
ref: 33
FROM 51845-31030
GROMMET,HEADLAMP HOUSING
5184531031
€ 4.00
