CRANKSHAFT
A100-4 1978 (C) GENERAL EXPORT (E01)

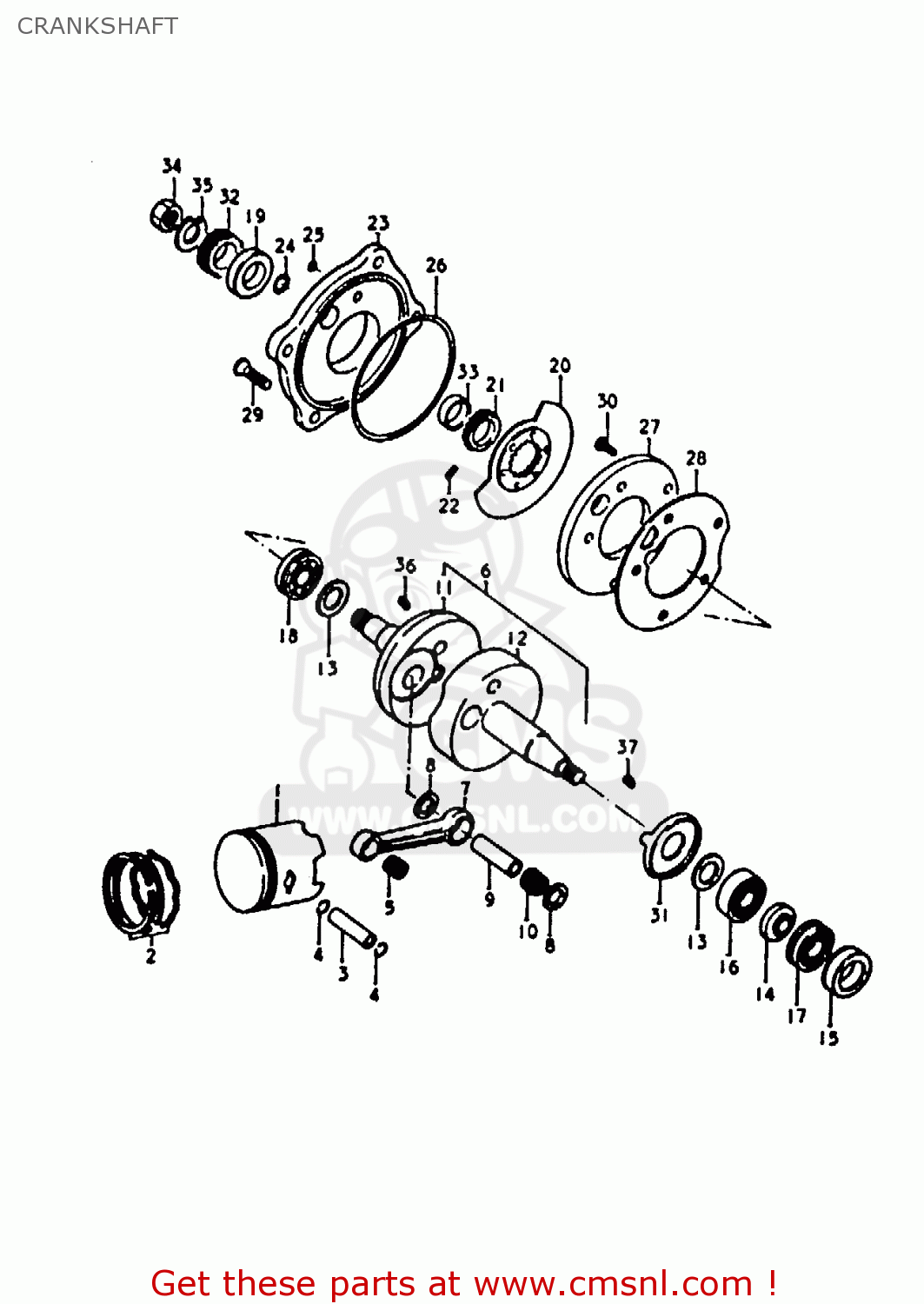

Crankshaft diagram A100-4 1978 (C) GENERAL EXPORT (E01)
CRANKSHAFT A100-4 1978 (C) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1211012000
ref: 1-1
PISTON
€ 40.50
1-3
1211012000050
ref: 1-3
FROM 12110-12701WITH
PISTON
€ 70.00
1-5
1211012000100
ref: 1-5
FROM 12110-12711WITH
PISTON
€ 66.00
2-1
1214012012
ref: 2-1
FROM 12140-12818
RING SET,PISTON
€ 40.00
2-2
1214012012050
ref: 2-2
FROM 12140-12819
RING SET, PISTON (OS:0.5)
€ 50.50
2-4
1214012012100
ref: 2-4
FROM 12140-12820
RING SET, PISTON (OS:1.0)
€ 37.00
3
1215107000
ref: 3
PIN,PISTON 14MM
€ 10.00
4
0938114001
ref: 4
RING,SNAP 14MM
€ 1.50
5
0926314006
ref: 5
BEARING
€ 10.00
6
1220012002
ref: 6
FROM 12200-12851
CRANKSHAFT ASSEMBLY
€ 372.50
7-1
1216112000
ref: 7-1
FROM 12161-28300OD:3
CONNECTING ROD
€ 54.50
8
0916019001
ref: 8
19X32X1
WASHER(19X32X1)
€ 3.50
9
1221103300
ref: 9
PIN,CRANK
€ 26.50
10-1
0926319007
ref: 10-1
TO 09263-19009
BEARING
€ 15.00
11-1
1222012000
ref: 11-1
CRANKSHAFT, RH
€ 0.00
12-1
1226112002
ref: 12-1
NEED REF.NO.13 (1PC)
CRANKSHAFT,LEFT
€ 0.00
13
0822120285
ref: 13
THRUST WASHER
€ 2.50
14
1235312001
ref: 14
SPACER
€ 0.00
15
0928320011
ref: 15
OIL SEAL
€ 6.00
16
0926220009
ref: 16
20X52X15
BEARING
€ 19.00
17
0811362040
ref: 17
Bearing
€ 28.00
18
0926220015
ref: 18
BEARING(20X52X15)
€ 30.50
19
0928325009
ref: 19
OIL SEAL (25X44X7)
€ 6.50
20
1241012010
ref: 20
FROM 12410-1200
VALVE,ROTARY
€ 31.50
21
1242105210
ref: 21
GUIDE,ROTERY VALVE
€ 17.50
22
0621103052
ref: 22
PIN 3X5
€ 1.50
23
1245012000
ref: 23
SEAT,CRANKCASE OUTER VALVE
€ 48.00
24
0928022002
ref: 24
ID:22.5, D:1.5
O RING(D:1.5,ID:22.5)
€ 2.50
25
0928010002
ref: 25
ID:10, D:1.5
O-RING (D:1.5 ID:10)
€ 2.00
26
0928099001
ref: 26
ID:99, D:2
O RING(D:2,ID:99)
€ 21.00
27
1246112001
ref: 27
FROM 12460-12000
SEAT,ROTERY VALVE INNER
€ 27.00
28
1247112000
ref: 28
GASKET,ROTERY VALVE INNER SEAT (NAS)
€ 3.50
29
0212206168
ref: 29
SCREW
€ 2.00
30
0212206208
ref: 30
SCREW
€ 2.00
31
1251103100
ref: 31
PLATE,CSHAFT OIL GUIDE
€ 7.00
32
2111107001
ref: 32
USED WITH 09166-1400
GEAR,PRIMARY DRIVE
€ 20.00
33
0918020006
ref: 33
20X25X10
SPACER(20X25X10)
€ 5.50
34
0914014002
ref: 34
NUT
€ 4.00
35-1
0916614004
ref: 35-1
WASHER
€ 3.00
36
0834131049
ref: 36
KEY 4MM
€ 3.50
37
0834131039
ref: 37
KEY
€ 2.00
