OPTIONAL
A100-4 1978 (C) GENERAL EXPORT (E01)

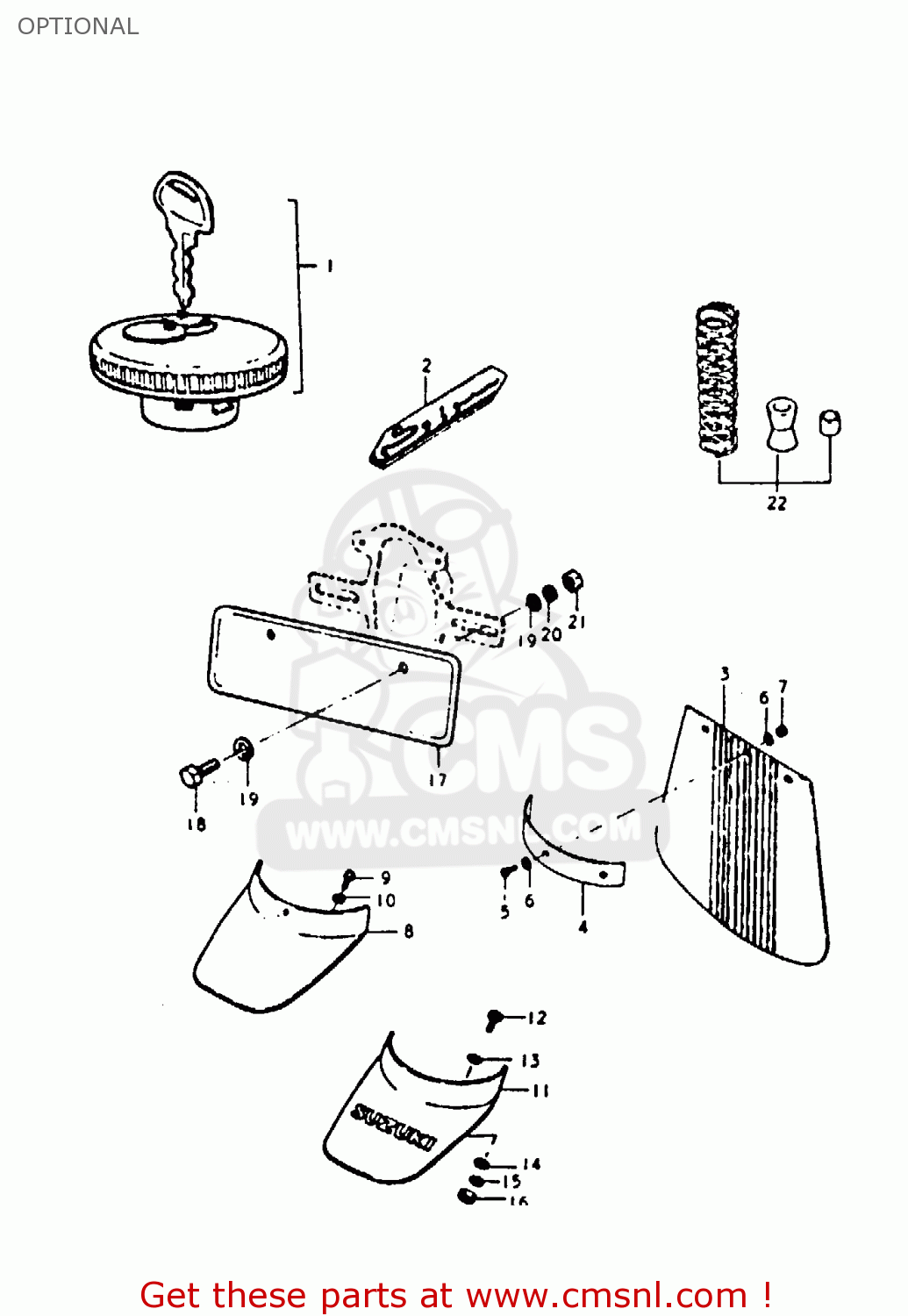

Optional diagram A100-4 1978 (C) GENERAL EXPORT (E01)
OPTIONAL A100-4 1978 (C) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4420036701
ref: 1
CAP SET,FUEL TANK
€ 59.00
2
6813113600
ref: 2
EMBLEM, FRAME COVER
€ 0.00
3
5331140000A
ref: 3
FROM 53311-01200
MUD FLAP,FRONT FENDER
€ 8.00
4
5332109100
ref: 4
PLATE,MUDFLAP
€ 3.00
5
0211204108
ref: 5
SCREW 4X10
€ 2.00
6
0832221048
ref: 6
WASHER
€ 2.00
7
0831022048
ref: 7
NUT 4MM
€ 2.00
8
6331012701
ref: 8
PLATE,RR FENDER EXTENSION
€ 194.00
9
0110405108
ref: 9
BOLT
€ 1.50
10
0832121058
ref: 10
LOCK WASHER
€ 2.00
17
6345103600
ref: 17
PLATE,RR LICENSE
€ 0.00
18
0110706128
ref: 18
BOLT
€ 2.00
19
0832221068
ref: 19
WASHER
€ 2.00
20
0832121068
ref: 20
LOCK WASHER
€ 2.50
21
0831011068
ref: 21
NUT
€ 2.50
22
6221023700
ref: 22
SPRING SET,REAR SHOCK ST
€ 0.00
