REAR COMBINATION LAMP (A100-4,K,L)

A100-4 1978 (C) GENERAL EXPORT (E01)

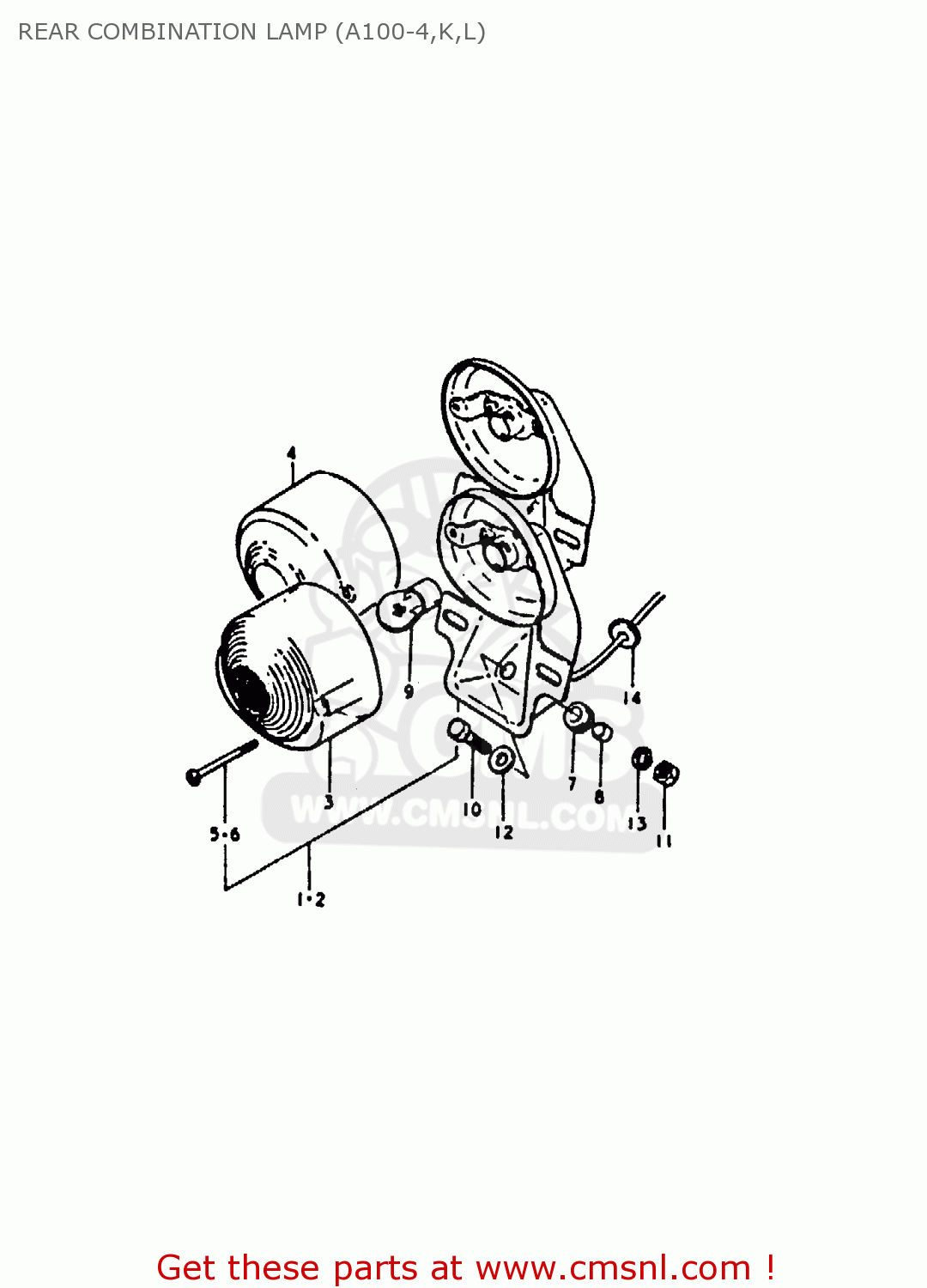

Rear combination lamp (a100-4,k,l) diagram A100-4 1978 (C) GENERAL EXPORT (E01)

REAR COMBINATION LAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
REAR COMBINATION LAMP (A100-4,K,L) A100-4 1978 (C) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3571027340
ref: 1
FROM 35710-27340-999
LAMP ASSY, REAR COMBINATION
€ 123.50
2
3571023310
ref: 2
FROM 35710-23310-999
LAMP ASSY, REAR COMBINATION
€ 0.00
3
3571206110
ref: 3
LENS,REAR COMBINATION LAMP
€ 37.50
4
3571227310
ref: 4
LENS
3571227310
€ 24.00
5
0211104558
ref: 5
SCREW
0211104558
€ 1.50
6
0211104508
ref: 6
SCREW
0211104508
€ 1.50
7
3576515010
ref: 7
CUSHION
3576515010
€ 9.00
8
3576615010
ref: 8
SPACER,REAR COMBINATION LAMP
3576615010
€ 11.50
9
0947106008
ref: 9
6V,10/3W
BULB(6V10/3W,STANLEY,A4854H)
0947106008
€ 4.50
10
0110706208
ref: 10
BOLT
0110706208
€ 2.00
11
0831011068
ref: 11
NUT
0831011068
€ 2.50
12
0916006020
ref: 12
WASHER
0916006020
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0930805005
ref: 14
GROMMET
0930805005
€ 3.00
