STAND
A100-4 1978 (C) GENERAL EXPORT (E01)

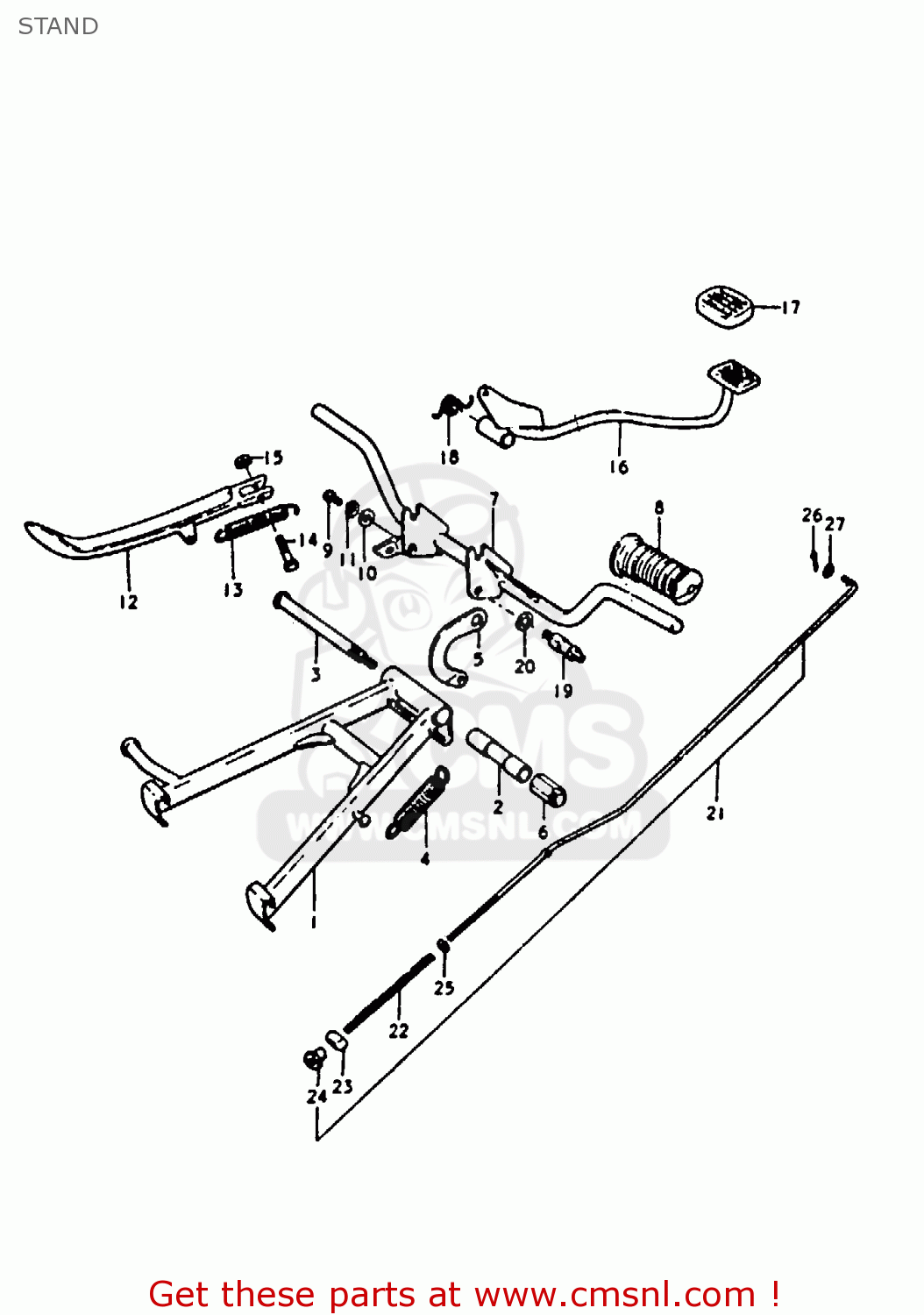

Stand diagram A100-4 1978 (C) GENERAL EXPORT (E01)
STAND A100-4 1978 (C) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210023200
ref: 1-1
STAND,CENTER
€ 41.50
2
4221103001
ref: 2
SPACER
€ 4.50
3-1
4222103000
ref: 3-1
TO 42221-03001
BOLT,CENTER STAND
€ 5.00
4
0944316002
ref: 4
SPRING
€ 12.00
5
4225103002
ref: 5
HOOK,CENTER STAND SPRING
€ 5.00
6
4223109000
ref: 6
NUT,CTR STAND
€ 10.00
7
4351012001
ref: 7
BAR,FR FOOTREST
€ 28.00
8
4355103000
ref: 8
RUBBER,FRONT FOOTREST
€ 5.00
9
0110708168
ref: 9
BOLT
€ 2.00
10
0832221088
ref: 10
WASHER
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
4231035700
ref: 12
STAND,SIDE
€ 120.00
13
0944314005
ref: 13
SPRING
€ 6.50
14
0910010007
ref: 14
10X27
BOLT
€ 4.50
15
0831022108
ref: 15
NUT
€ 2.50
16
4311021202
ref: 16
PEDAL,BRAKE
€ 83.50
17
4315101000
ref: 17
RUBBER,BRAKE PEDAL
€ 3.00
18
0944831010
ref: 18
SPRING
€ 11.00
19
4322103001
ref: 19
STOPPER,BRAKE PEDAL
€ 6.00
20
0832221088
ref: 20
WASHER
€ 2.00
21-1
4330021201
ref: 21-1
TO 43300-21202
ROD ASSEMBLY,REAR BRAKE
€ 12.00
22
0944009004
ref: 22
SPRING
€ 2.00
23
0920911002
ref: 23
PIN(11X18)
€ 2.00
24
0915006001
ref: 24
NUT
€ 3.50
25
0832221058
ref: 25
WASHER
€ 2.50
26
0411120208
ref: 26
PIN 20X20
€ 1.50
27
0832221068
ref: 27
WASHER
€ 2.00
