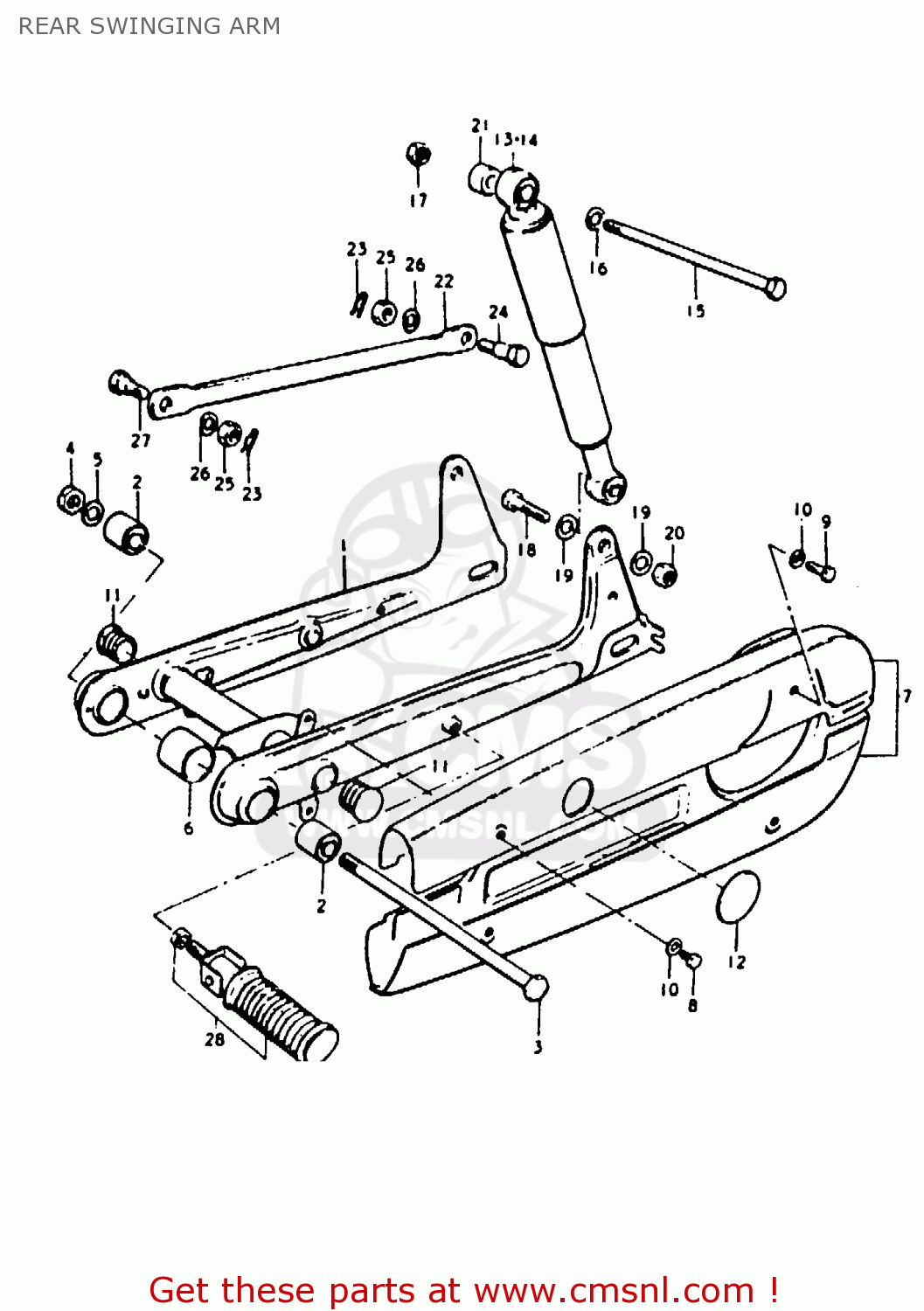

REAR SWINGING ARM

ref

part #

description

quantity

1

6110022820019
ref: 1
FROM 61101-21812-019

SWINGING ARM, REAR

€ 146.50

2

0931910009
ref: 2

BUSHING(10X23X35)

€ 7.50

3-1

6121120000
ref: 3-1
TO 61211-20001

SHAFT,REAR SWING ARM

€ 11.00

4

0831012108
ref: 4

NUT

€ 2.50

5

0832121108
ref: 5

LOCK WASHER

€ 2.00

6

0932022001
ref: 6

CUSHION

€ 2.00

7

6130012850126
ref: 7

CHAIN CASE SET

€ 77.00

8

0910006005
ref: 8
6X6

BOLT(6X6)

€ 2.00

9-1

0910006007
ref: 9-1
6X15

BOLT

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0925022002
ref: 11

CAP(OD:26)

€ 2.00

12

0925030001
ref: 12

CAP(OD:40)

€ 2.50

13-1

6210023210138
ref: 13-1

ABSORBER ASSY, REAR SHOCK

€ 0.00

13-2

6210023210195
ref: 13-2

ABSORBER ASSY, REAR SHOCK

€ 75.00

13-3

6210023210157
ref: 13-3

ABSORBER ASSY, REAR SHOCK

€ 120.00

15

6121125001
ref: 15
FROM 62311-22200

SHAFT,RR SHOCK ABSORBER UPR

€ 12.00

16

0832221108
ref: 16

WASHER

€ 2.50

17

0914010012
ref: 17
FROM 09140-10001

NUT

€ 2.50

18

0910010046
ref: 18
10X43

BOLT(10X43)

€ 2.00

19

0832221108
ref: 19

WASHER

€ 2.50

20

0831311108
ref: 20

NUT, LOWER LH

€ 2.50

21

6243123200
ref: 21

SPACER,SHOCK ABSORBER UPR

€ 0.00

22-1

6431027200
ref: 22-1

TORQUE LINK,REAR

€ 14.00

23

0938510001
ref: 23

CLIP

€ 1.50

24

0911108013
ref: 24

BOLT(8X26.5)

€ 3.00

25

0914008008
ref: 25

NUT

€ 1.50

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0911108012
ref: 27

BOLT(8X22.5)

€ 3.00

28

4360003001
ref: 28

FOOTREST ASSEMBLY,REAR

€ 21.00
