KICK STARTER
A100-4 1978 (C) GENERAL EXPORT (E01)

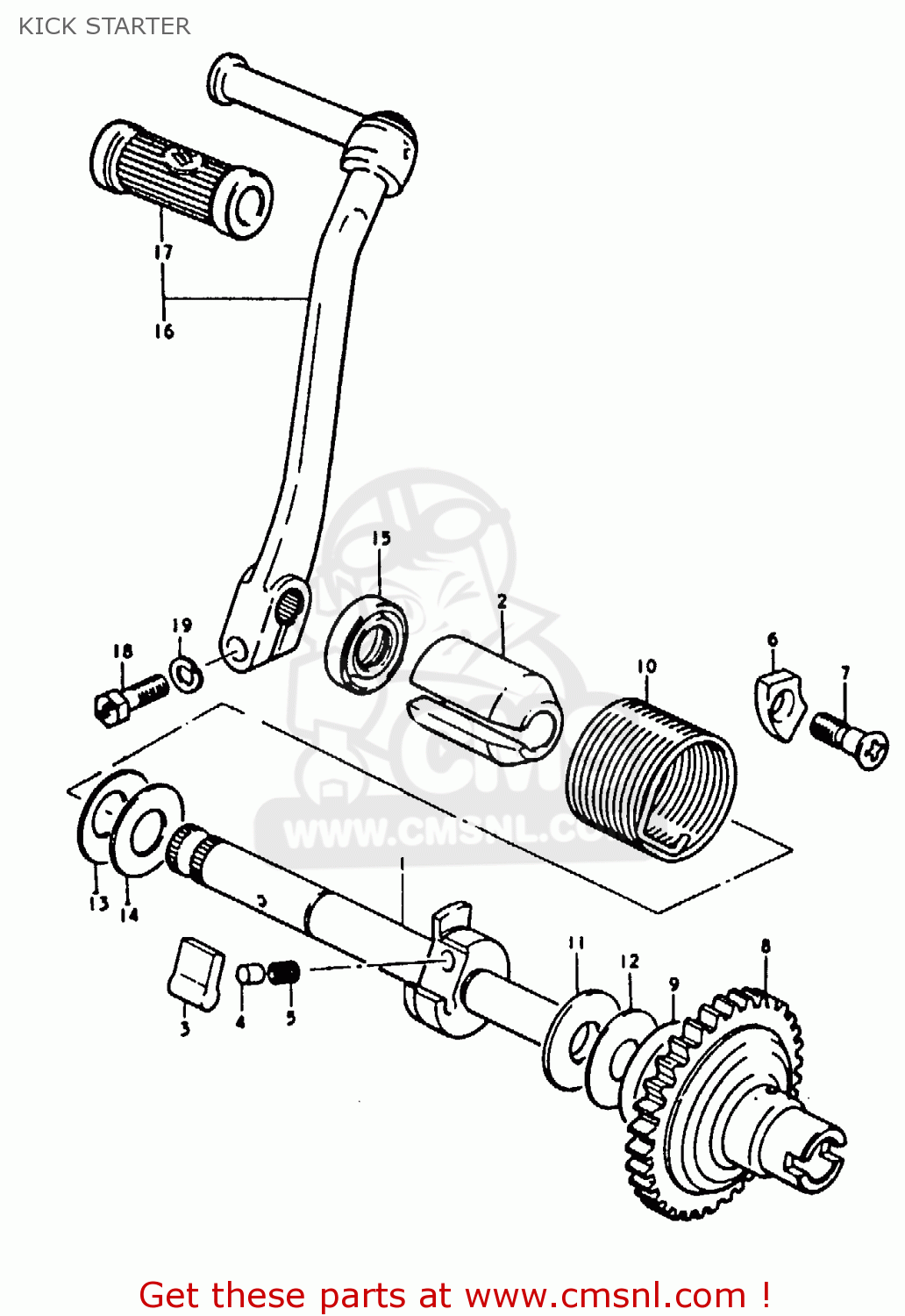

Kick starter diagram A100-4 1978 (C) GENERAL EXPORT (E01)
KICK STARTER A100-4 1978 (C) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2621123000
ref: 1
SHAFT,KICK STARTER
€ 52.00
2
2622108030
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 6.50
3
2623120000
ref: 3
PAWL,KICK STARTER
€ 13.50
4
0920905011
ref: 4
PIN(5X15.5)
€ 2.00
5
0944004010
ref: 5
SPRING
€ 1.50
6
2623201000
ref: 6
LIFTER,KICK STARTER PAWL
€ 8.00
7
0212206168
ref: 7
SCREW
€ 2.00
8-1
2624112001
ref: 8-1
NT:32, TO 26241-1200
GEAR, KICK STARTER DRIVE
€ 54.00
9
0928412006
ref: 9
OIL SEAL
€ 4.50
10
0944837011
ref: 10
SPRING
€ 4.50
11-1
0918112005
ref: 11-1
12X30X0.5
SHIM(12X30X0.5)
€ 0.00
14-1
0916016003
ref: 14-1
16X30.5X1
WASHER(16X30X1)
€ 2.50
15
0928516002
ref: 15
SEAL,OIL(16X30X8)
€ 6.50
16
2630012002
ref: 16
FROM 26300-12000
LEVER ASSEMBLY,KICK STARTER
€ 57.00
17
2635201000
ref: 17
RUBBER,KICK STARTER PEDAL
€ 3.50
18
0110708258
ref: 18
BOLT
€ 2.50
19
0832121088
ref: 19
LOCK WASHER
€ 2.00
