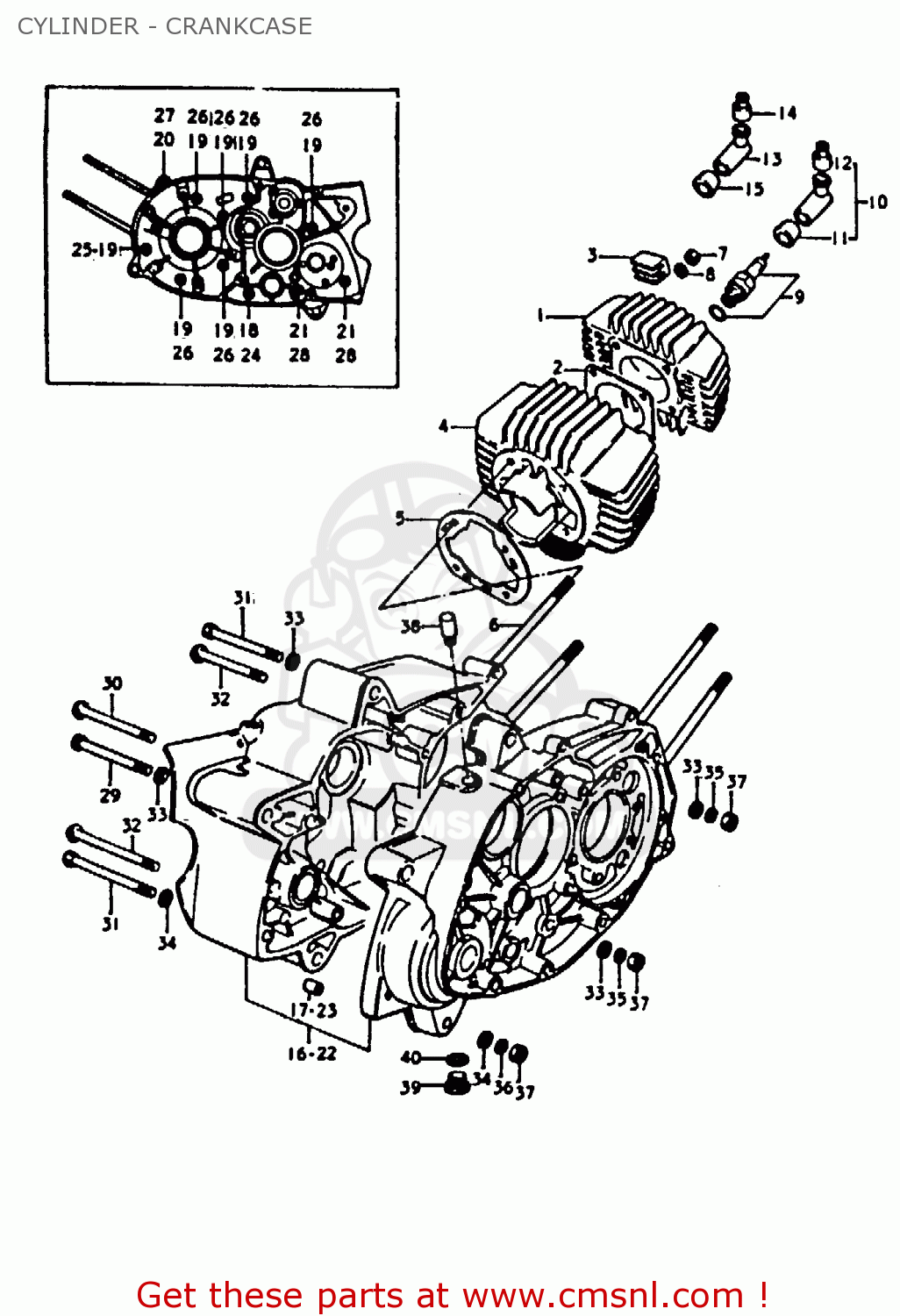

CYLINDER - CRANKCASE - A100-4 1978 (C) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

1111112402
ref: 1
FROM 11111-12401

HEAD,CYLINDER

€ 92.00

2

1114112401
ref: 2
FROM 11141-12400

GASKET,CYLINDER HEAD (NAS)

€ 8.00

3-1

1125128000
ref: 3-1

PAD,CYLINDER

€ 5.00

4-1

1121012002
ref: 4-1

CYLINDER

€ 286.00

5

1124112000
ref: 5

GASKET,CYLINDER (MCA)

€ 5.50

6

0910808006
ref: 6

BOLT,STUD

€ 5.00

7

0914008005
ref: 7

NUT (8MM)

€ 1.50

8

0832121088
ref: 8

LOCK WASHER

€ 2.00

9-1

0948200084
ref: 9-1
NGK, BP6HS

PLUG,SPARK(BP6HS)

€ 4.00

9-2

0948200085
ref: 9-2
ND, W20FP

SPARK PLUG

€ 3.50

9-3

0948200105
ref: 9-3
NGK, BP7HS OPT

PLUG,SPARK(BP7HS)

€ 4.50

10

3350069810
ref: 10

CAP,SPARK PLUG

€ 29.50

11

3354169010
ref: 11

SEAL,SPARK PLUG

€ 5.00

12

3354298000
ref: 12

SEAL,SPARK PLU

€ 4.50

16

1130012853
ref: 16

CRANKCASE SET

€ 2.50

17

0421109129
ref: 17

PIN

€ 2.00

18

0211206608
ref: 18

SCREW 6X60

€ 2.50

19

0211206458
ref: 19

SCREW (6X45)

€ 2.00

20

0211206408
ref: 20

SCREW

€ 2.00

21

0211206358
ref: 21

SCREW (6X35)

€ 2.50

29

0910008024
ref: 29
8X105

BOLT 8X105

€ 4.00

31

0910008026
ref: 31
8X110

BOLT 8X110

€ 2.00

33

0832211088
ref: 33

WASHER

€ 2.00

34

0832221088
ref: 34

WASHER

€ 2.00

35

0832121088
ref: 35

LOCK WASHER

€ 2.00

36

0832131088
ref: 36

WASHER,LOCK,8.

€ 2.00

37

0831012088
ref: 37

NUT

€ 2.00

38

2482109000
ref: 38

PLUG,TRANSMISSION BREATHER

€ 5.50

39-1

0924714001
ref: 39-1
14THREAD

PLUG

€ 5.00

40-1

0916814004
ref: 40-1
15.7X19.5X2

GASKET(14X19.2X2) (NAS)

€ 2.50
