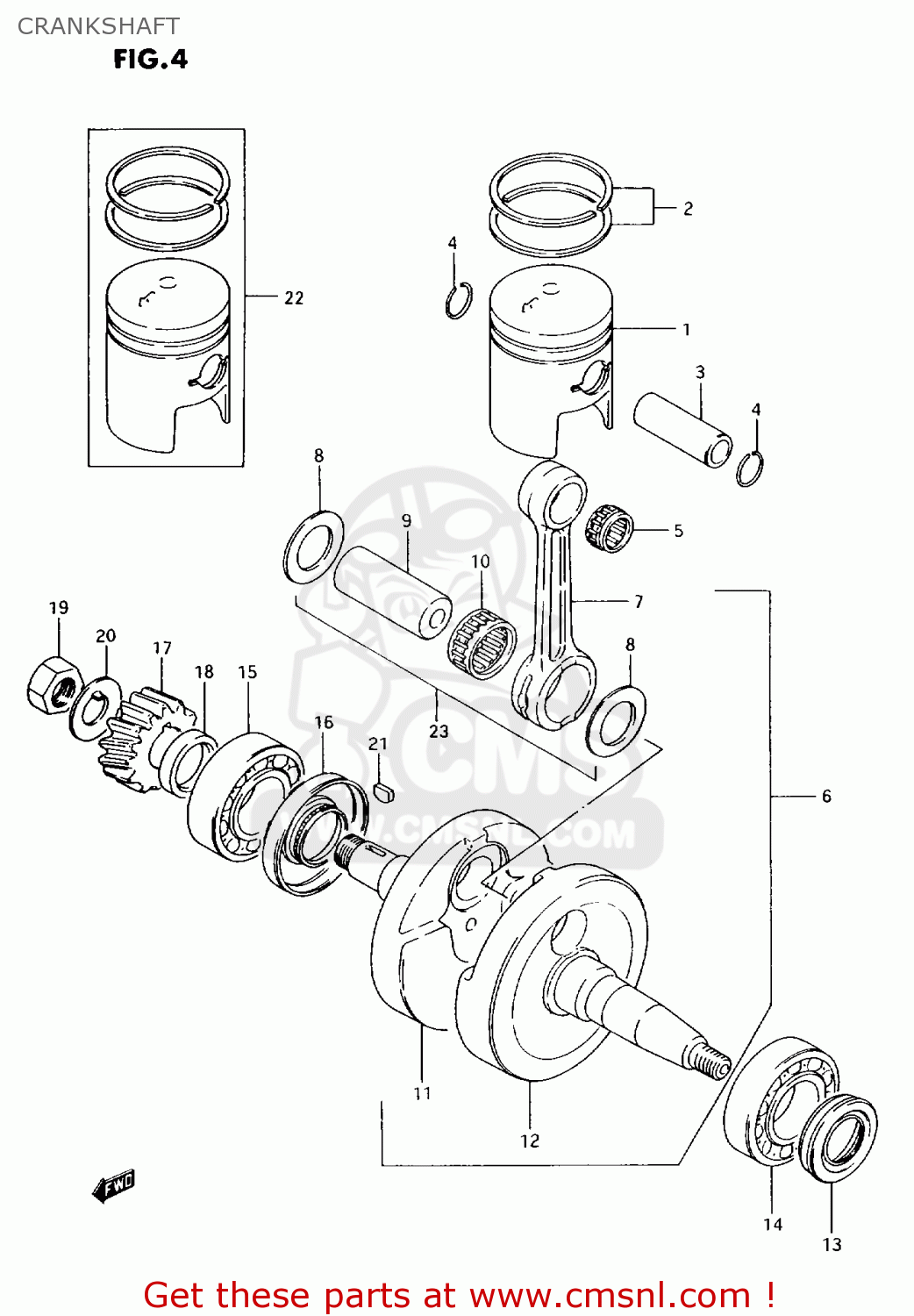

CRANKSHAFT

ref

part #

description

quantity

1

12110234010F0
ref: 1

PISTON (50.00MM)

€ 40.00

2

1214023470
ref: 2

RING SET,PISTON

€ 50.00

3

1215123400
ref: 3

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314019
ref: 5

BEARING 14X18X19.8

€ 10.00

6

1220023410
ref: 6

CRANKSHAFT ASSY

€ 0.00

7

1216123400
ref: 7

ROD,CONNECTING

€ 42.00

8

0916020010
ref: 8

WASHER (20X34X1)

€ 4.50

9

1221123402
ref: 9

PIN, CRANK

€ 19.50

10

0926320020
ref: 10

BEARING(20X26X16.7)

€ 18.00

11

1222123401
ref: 11

CRANKSHAFT, RH

€ 0.00

12

12261234100A0
ref: 12

CRANKSHAFT,L

€ 0.00

13

0928320034
ref: 13

SEAL,OIL(19.6X37X8)

€ 6.00

14

09262250700A0
ref: 14

BEARING(25X52X15)

€ 31.50

15

0926220073
ref: 15

BEARING(20X52X15)

€ 19.00

16

0928326007
ref: 16

SEAL,OIL(26X52X8)

€ 7.50

17

21111070010A0
ref: 17

GEAR,PRIMARY DRIVE(NT:16)

€ 20.00

18

0918020037
ref: 18

SPACER(20X28X7)

€ 7.50

19

0914014002
ref: 19

NUT

€ 4.00

20

0916614008
ref: 20

WASHER

€ 2.50

21

0942004008
ref: 21

KEY

€ 3.50

22-1

1210023400050
ref: 22-1
OPT

PISTON SET(OS:0.5)

€ 76.50

22-2

1210023400100
ref: 22-2
OPT

PISTON SET(OS:1.0)

€ 70.00

23

1210523810
ref: 23
OPT

CON ROD SET (INCLUDING REF.NO. 5, 7, 8,

€ 0.00

all assemblies
