MUFFLER

AX100 1997 (V) BARBADOS (E94) / P36 P48

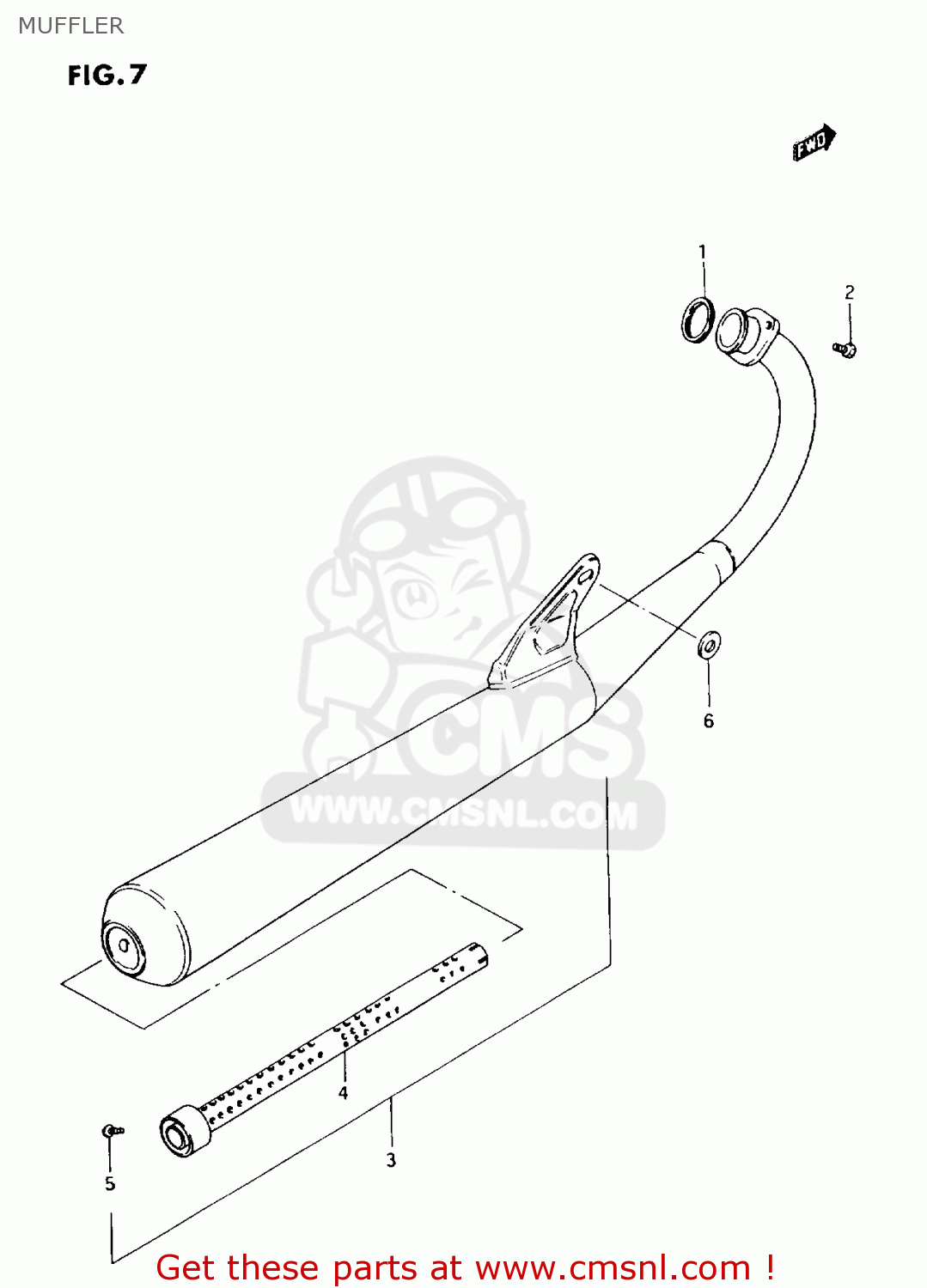

Muffler diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

MUFFLER AX100 1997 (V) BARBADOS (E94) / P36 P48

MUFFLER AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

1418101D00
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2

0157008257
ref: 2

BOLT

€ 1.50

3-1

1430123411
ref: 3-1

MUFFLER ASSY

€ 0.00

3-2

1430123401
ref: 3-2
P36

MUFFLER ASSY

€ 0.00

4

1451039150
ref: 4

PIPE,BAFFLE

€ 30.50

5

0211235083
ref: 5

SUZUKI PART

€ 2.00

6

0916012012
ref: 6

WASHER (12.5X24X3.2)

€ 2.50
