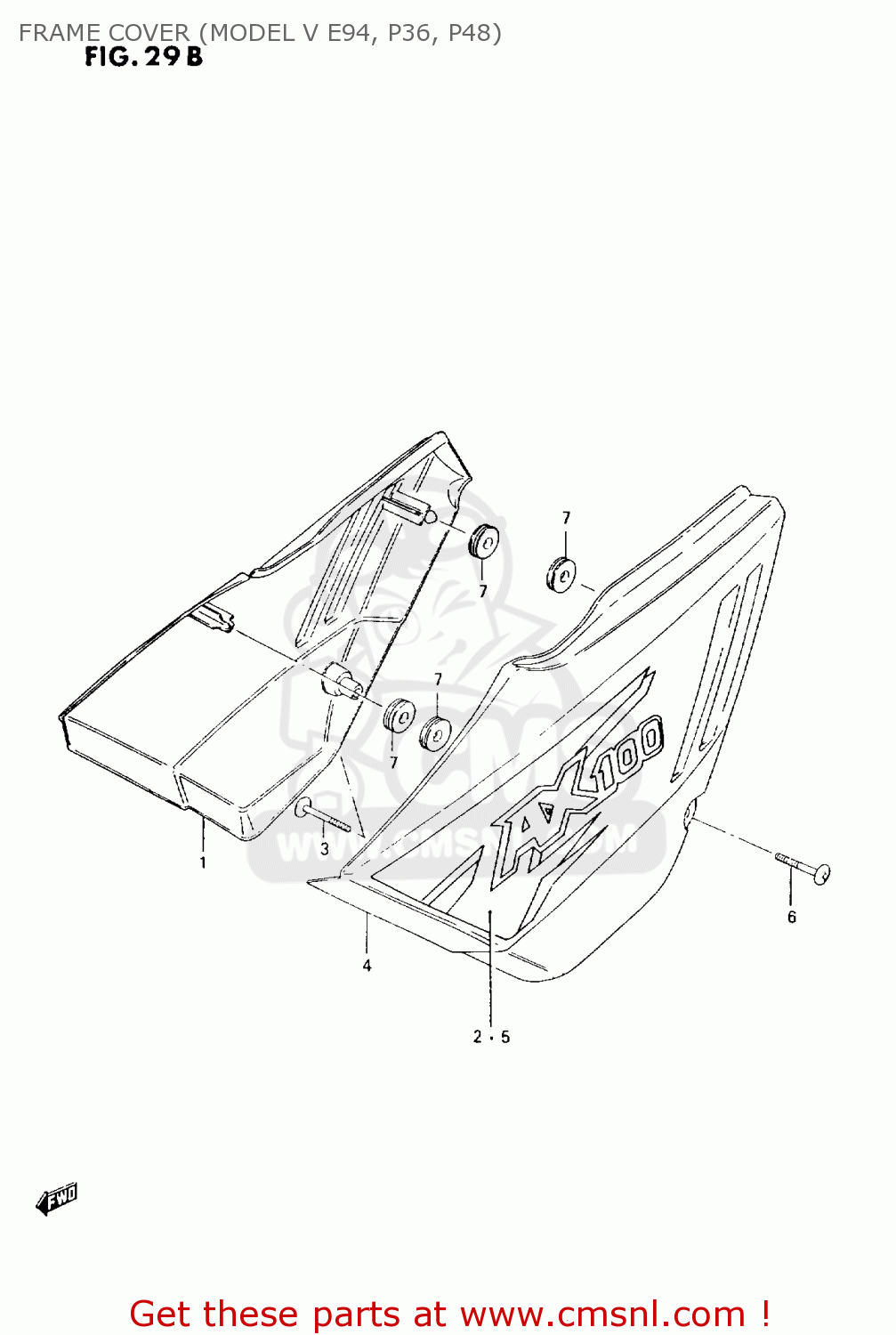

FRAME COVER (MODEL V E94, P36, P48)

AX100 1997 (V) BARBADOS (E94) / P36 P48

Frame cover (model v e94, p36, p48) diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1-1

4711123540019
ref: 1-1

COVER, FRAME RH (BLACK)

€ 0.00

1-2

471112354028V
ref: 1-2

COVER, FRAME RH (RED)

€ 0.00

1-3

47111235401ZV
ref: 1-3

COVER, FRAME RH (GREEN)

€ 0.00

2-1

6813523530Y1U
ref: 2-1
FOR 019

TAPE, RH

€ 0.00

2-2

6813523530Y1V
ref: 2-2
FOR 28V

TAPE,FRAME COVER,R

€ 0.00

2-3

6813523530Y1Y
ref: 2-3
FOR 1ZV

TAPE, RH

€ 0.00

0214206453
ref: 3

SCREW

€ 2.00

4-1

4721123400019
ref: 4-1

COVER, FRAME LH (BLACK)

€ 0.00

4-2

472112340028V
ref: 4-2

COVER,FRAME,L(RED)

€ 0.00

4-3

47211234001ZV
ref: 4-3

COVER,FRAME,L(GREEN)

€ 0.00

5-1

6814523530Y1U
ref: 5-1
FOR 019

TAPE, LH

€ 0.00

5-2

6814523530Y1V
ref: 5-2
FOR 28V

TAPE, LH

€ 0.00

5-3

6814523530Y1Y
ref: 5-3
FOR 1ZV

TAPE, LH

€ 0.00

0912506042
ref: 6

SCREW(6X45)

€ 0.00

0932008018
ref: 7

CUSHION

€ 4.00

FRAME COVER (MODEL V E94, P36, P48)
