KICK STARTER
AX100 1997 (V) BARBADOS (E94) / P36 P48

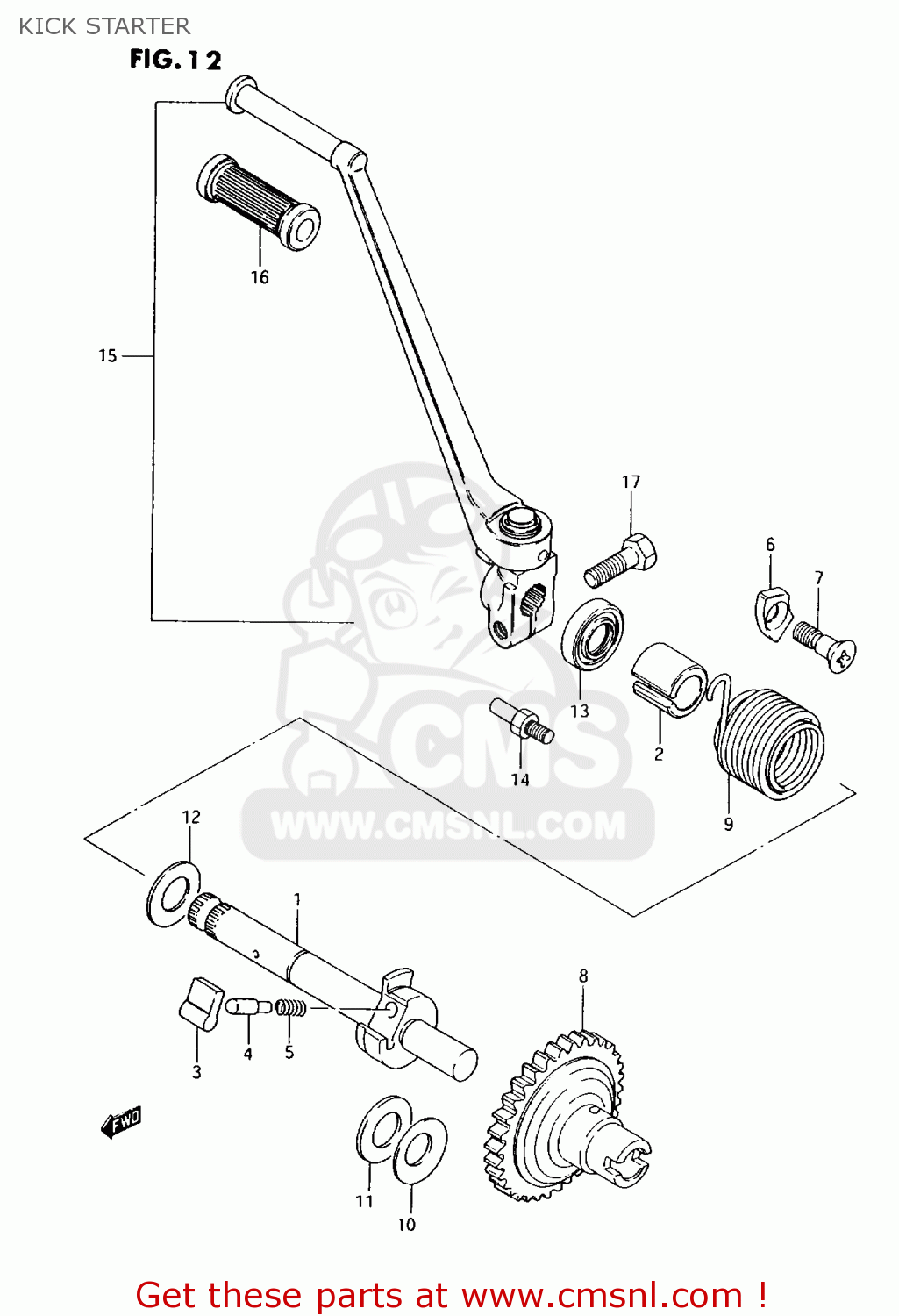

Kick starter diagram AX100 1997 (V) BARBADOS (E94) / P36 P48
KICK STARTER AX100 1997 (V) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
1
2621123401
ref: 1
SHAFT,KICK STARTER
€ 0.00
2
2622146000
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 5.00
3
2623120000
ref: 3
PAWL,KICK STARTER
€ 13.50
4
0920905011
ref: 4
PIN(5X15.5)
€ 2.00
5
0944004010
ref: 5
SPRING
€ 1.50
6
2623201000
ref: 6
LIFTER,KICK STARTER PAWL
€ 8.00
7
0212206163
ref: 7
SCREW ,6X16
€ 2.00
8
2624112010
ref: 8
NT:33
GEAR,KICK STARTER DRIIVE
€ 0.00
9
0944841003
ref: 9
SPRING
€ 17.00
10
0916412024
ref: 10
OD:29
WASHER
€ 0.00
11
0821112302
ref: 11
WASHER
€ 2.50
12
0916016016
ref: 12
WASHER(16X30X0.5)
€ 2.50
13
0928516002
ref: 13
SEAL,OIL(16X30X8)
€ 6.50
14
2623720400
ref: 14
BOLT,KICK START SHAFT SPR HOOK
€ 5.00
15
2630023400
ref: 15
LEVER ASSY, KICK STARTER
€ 94.50
16
2635201000
ref: 16
RUBBER,KICK STARTER PEDAL
€ 3.50
17
0150008253
ref: 17
BOLT
€ 2.50
