MAGNETO (P36)

AX100 1997 (V) BARBADOS (E94) / P36 P48

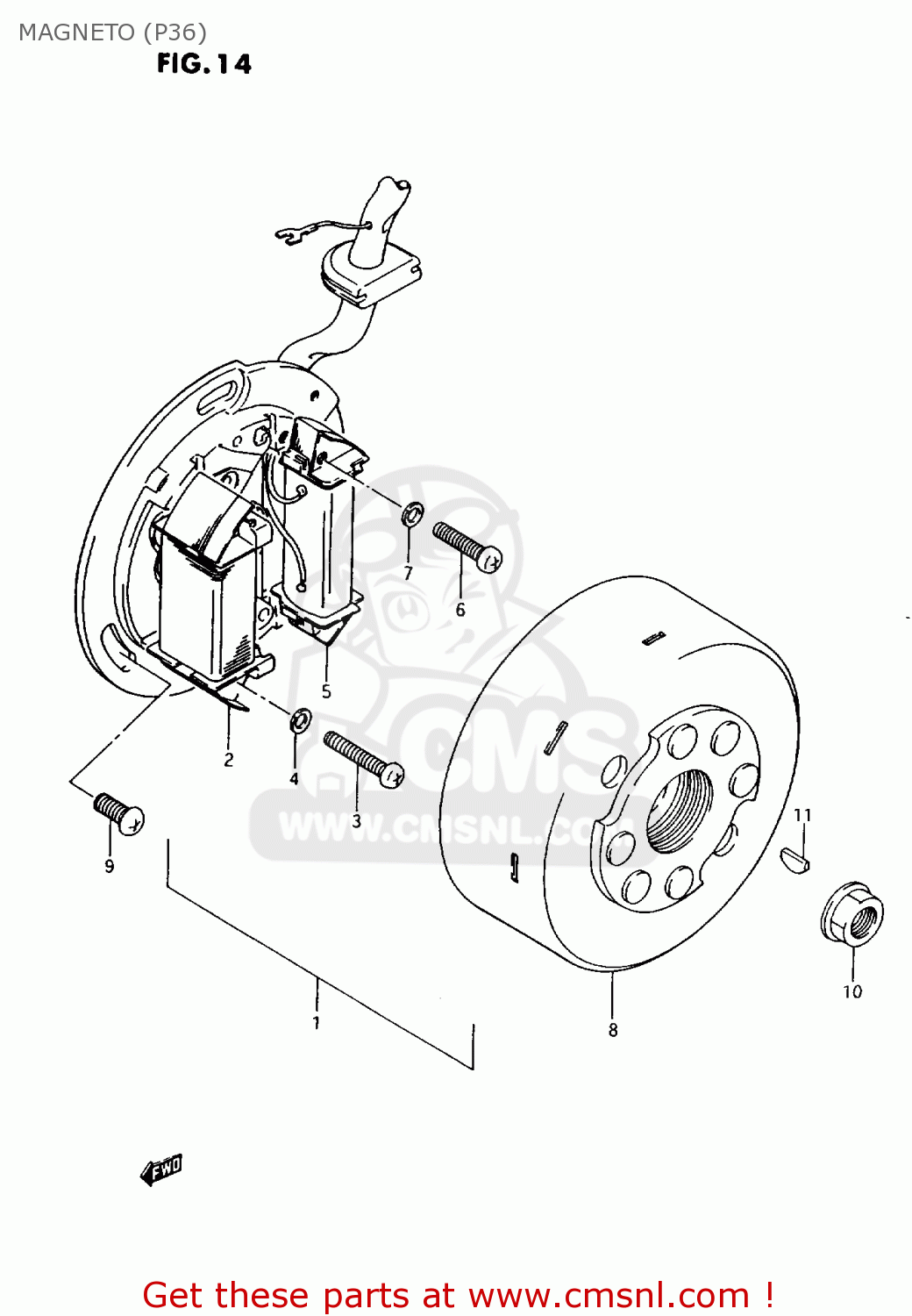

Magneto (p36) diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

MAGNETO (P36) AX100 1997 (V) BARBADOS (E94) / P36 P48

MAGNETO (P36) AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

3210123420
ref: 1

STATOR ASSY

€ 0.00

2

3212023420
ref: 2

COIL, LIGHTING

€ 41.00

3

0211204253
ref: 3

SCREW

€ 2.00

4

0832101043
ref: 4

WASHER,LOCK

€ 2.00

5

3214023420
ref: 5

COIL, PRIMARY

€ 0.00

6

0211204203
ref: 6

SCREW

€ 1.00

7

0832101043
ref: 7

WASHER,LOCK

€ 2.00

8

3210223420
ref: 8

ROTOR, FRYWHEEL

€ 0.00

9

0214205123
ref: 9

SCREW 5X12

€ 1.50

10

0831610103
ref: 10

NUT

€ 2.00

11

0834131039
ref: 11

KEY

€ 2.00
