REAR BRAKE
AX100 1997 (V) BARBADOS (E94) / P36 P48

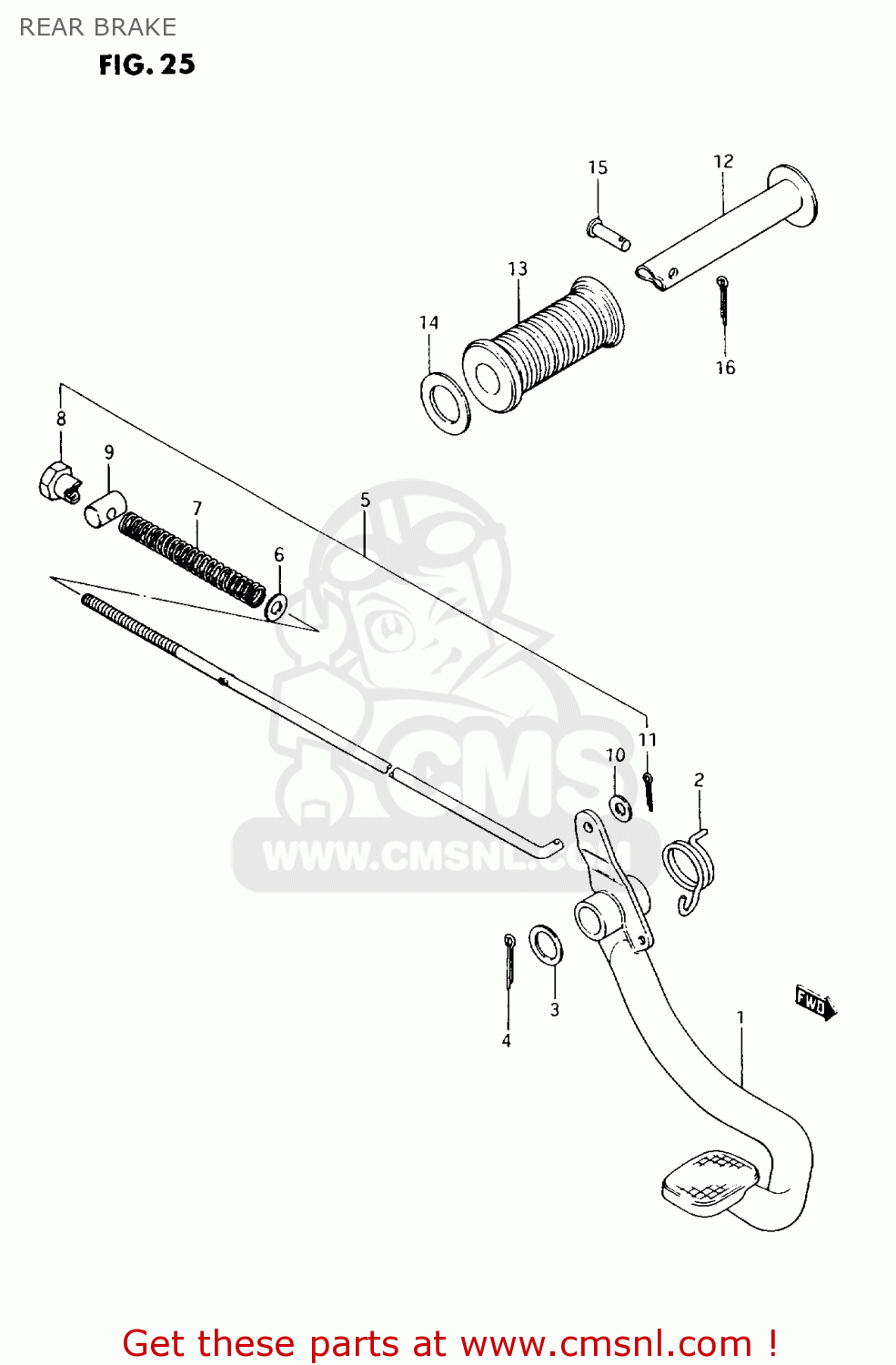

Rear brake diagram AX100 1997 (V) BARBADOS (E94) / P36 P48
REAR BRAKE AX100 1997 (V) BARBADOS (E94) / P36 P48
×
prices are in EUR
ref
part #
description
quantity
1
4311023453
ref: 1
PEDAL,BRAKE
€ 0.00
2
0944831026
ref: 2
SPRING
€ 5.50
3
0916015002
ref: 3
WASHER(15.5X26X2.3)
€ 2.00
4
0411130308
ref: 4
COTTER PIN
€ 1.50
5
4330023450
ref: 5
ROD ASSY,RR BRAKE
€ 15.50
6
0832201063
ref: 6
WASHER
€ 2.00
7
0944009004
ref: 7
SPRING
€ 2.00
8
0915006014
ref: 8
NUT
€ 3.50
9
0920911002
ref: 9
PIN(11X18)
€ 2.00
10
0832201053
ref: 10
WASHER
€ 2.50
11
0411120208
ref: 11
PIN 20X20
€ 1.50
12
4361003001
ref: 12
BAR,FOOTREST RUBBER
€ 5.50
13
4361203001
ref: 13
RUBBER,PILLION FOOTREST
€ 3.50
14
0916019006
ref: 14
WASHER (19.5X32X2)
€ 2.00
15
0920006033
ref: 15
PIN
€ 2.00
16
0411120158
ref: 16
PIN
€ 1.50
