WIRING HARNESS

AX100 1997 (V) BARBADOS (E94) / P36 P48

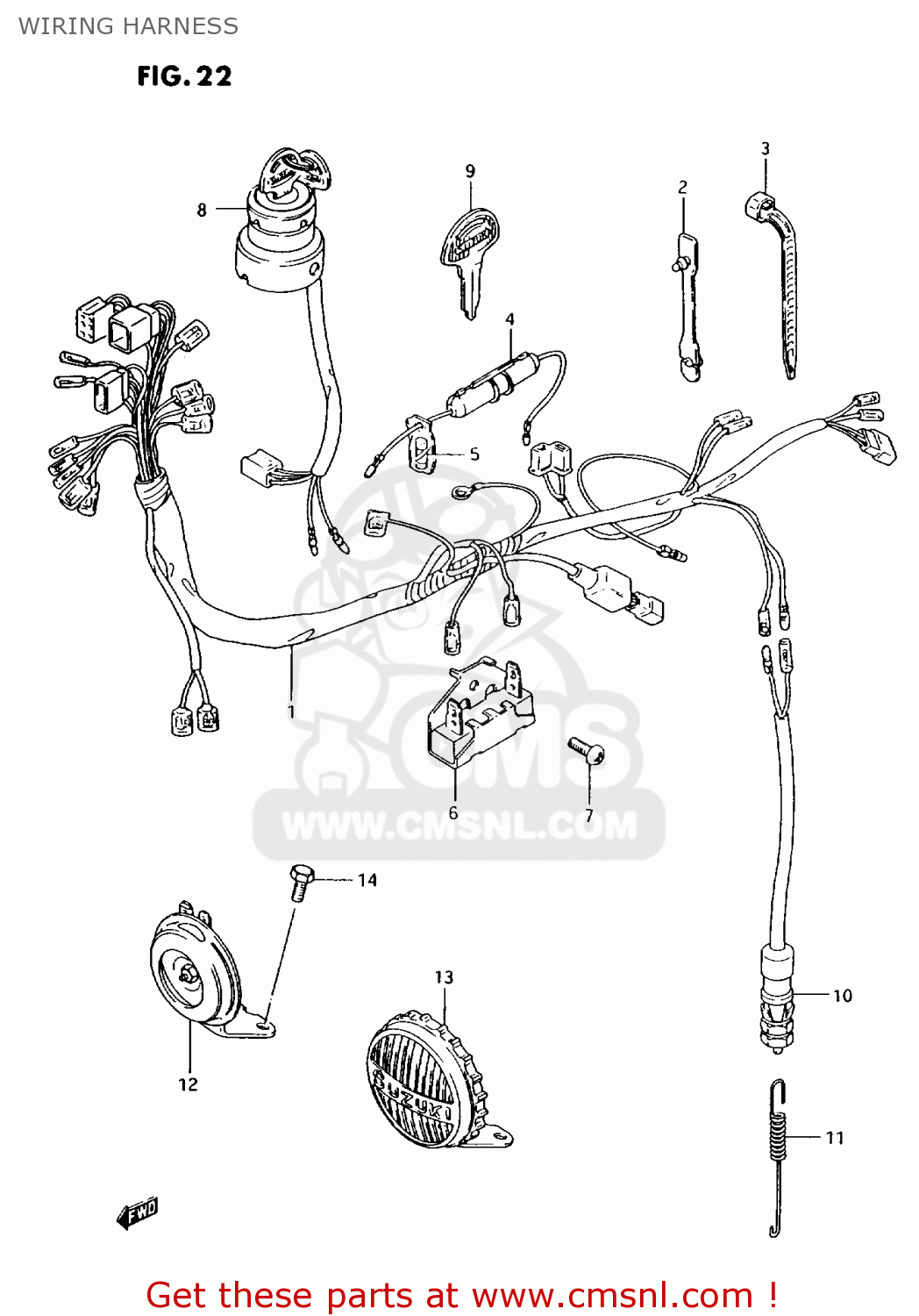

Wiring harness diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1-1

3661023401
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661023512
ref: 1-2
MODEL R/T P36

WIRING HARNESS

€ 0.00

1-3

3661023513
ref: 1-3
MODEL V P36

WIRING HARNESS

€ 0.00

0940705403
ref: 2

CLAMP,L:88

€ 1.50

3-1

0940718403
ref: 3-1
<-09407-18402

CLAMP L:165

€ 2.50

3-2

0940714403
ref: 3-2

CLAMP(L:125)

€ 2.50

3674002201
ref: 4
P36

CASE ASSY,FUSE

€ 12.50

0948110001
ref: 5

FUSE(10A)

€ 2.00

3651030600
ref: 6

RESISTOR ASSY,LAMP(2 OHM)

€ 25.00

0211236103
ref: 7

SCREW

€ 1.50

3711046122
ref: 8

SWITCH ASSY,IGNITION

€ 0.00

3714649300
ref: 9
OPT

KEY,BLANK

€ 13.00

3774048071
ref: 10

SWITCH ASSY,STOP LAMP

€ 22.00

0944306016
ref: 11

SPRING

€ 2.50

3850023412
ref: 12
P36, <-38500-23410

HORN ASSY

€ 0.00

3850039370
ref: 13

HORN ASSY

€ 80.00

0156006103
ref: 14

BOLT

€ 2.50

WIRING HARNESS
