FUEL COCK

AX100 1997 (V) BARBADOS (E94) / P36 P48

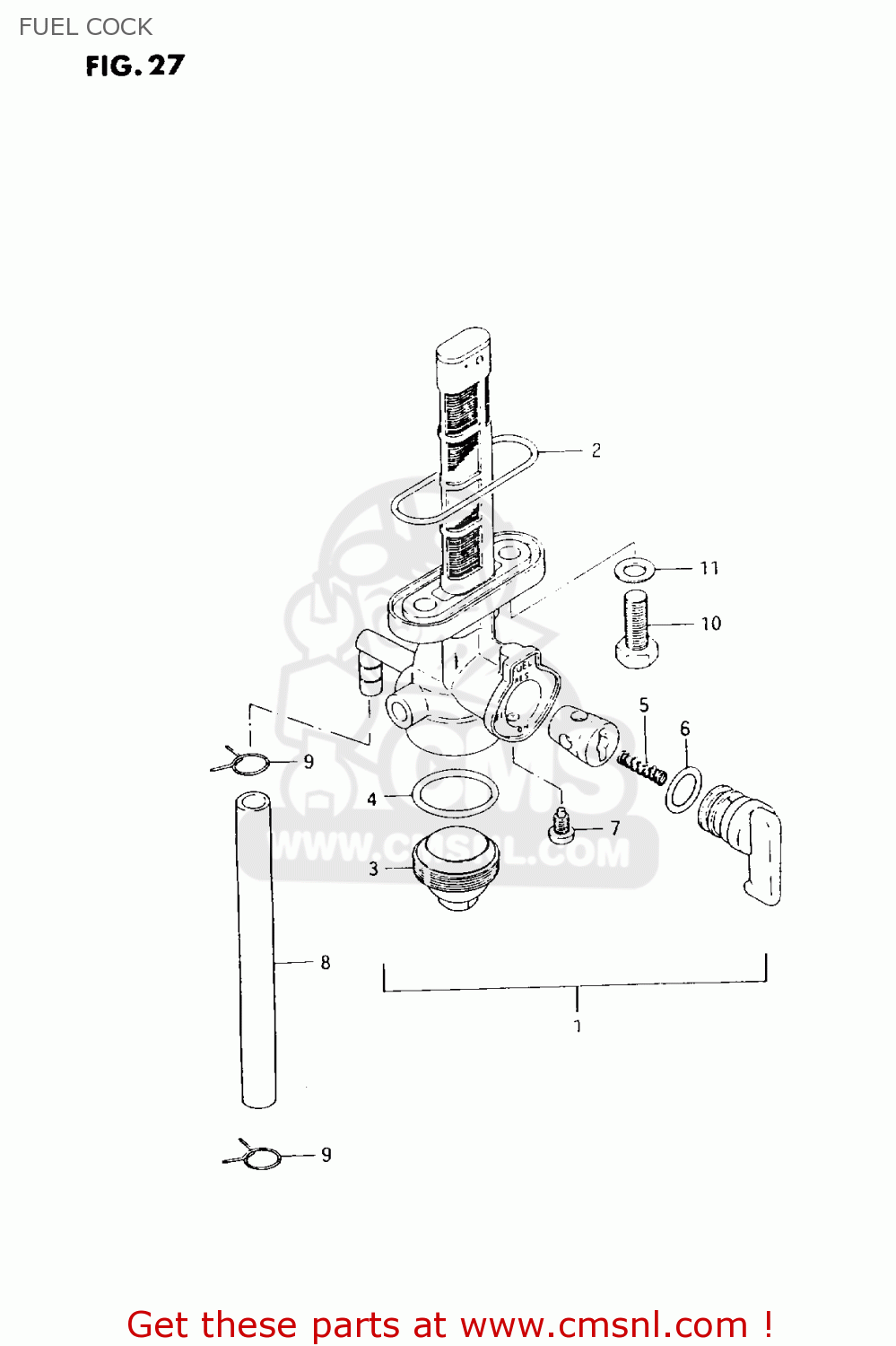

Fuel cock diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

FUEL COCK AX100 1997 (V) BARBADOS (E94) / P36 P48

FUEL COCK AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

4430013273
ref: 1

COCK ASSEMBLY,FUEL

€ 57.50

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435732470
ref: 5

SPRING

€ 2.00

6

4435312C01
ref: 6

O RING,LEVER

€ 7.50

7

4434341370
ref: 7

SCREW

€ 2.00

8

0935250823600
ref: 8
L:600->150

HOSE(5X8.2X600)

€ 13.00

9

0940108401
ref: 9

CLIP

€ 1.50

10

0912806057
ref: 10

BOLT(6X20)

€ 2.00

11

0916806026
ref: 11

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50
