FRAME COVER (MODEL T P9)

AX100 1997 (V) BARBADOS (E94) / P36 P48

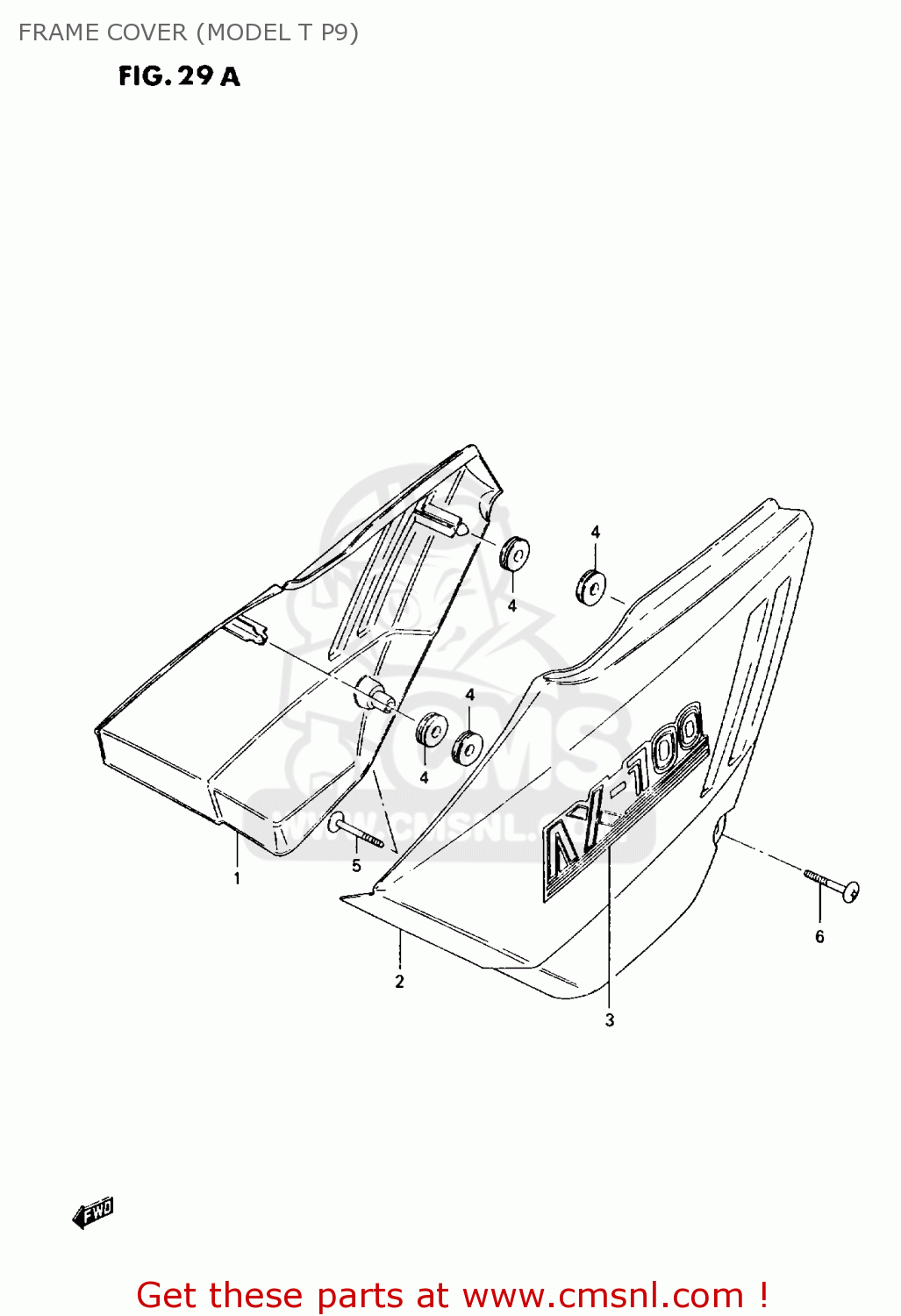

Frame cover (model t p9) diagram AX100 1997 (V) BARBADOS (E94) / P36 P48

FRAME COVER (MODEL T P9) AX100 1997 (V) BARBADOS (E94) / P36 P48

FRAME COVER (MODEL T P9) AX100 1997 (V) BARBADOS (E94) / P36 P48

prices are in EUR

ref

part #

description

quantity

1

4711123400
ref: 1

COVER,FRAME,R

€ 0.00

2

4721123400
ref: 2

COVER,FRAME,L

€ 0.00

3

6813123400
ref: 3
PURCHASE LOCALLY

EMBLEM

€ 0.00

4

0932008018
ref: 4

CUSHION

€ 4.00

5

0214206453
ref: 5

SCREW

€ 2.00

6

0912506042
ref: 6

SCREW(6X45)

€ 0.00
