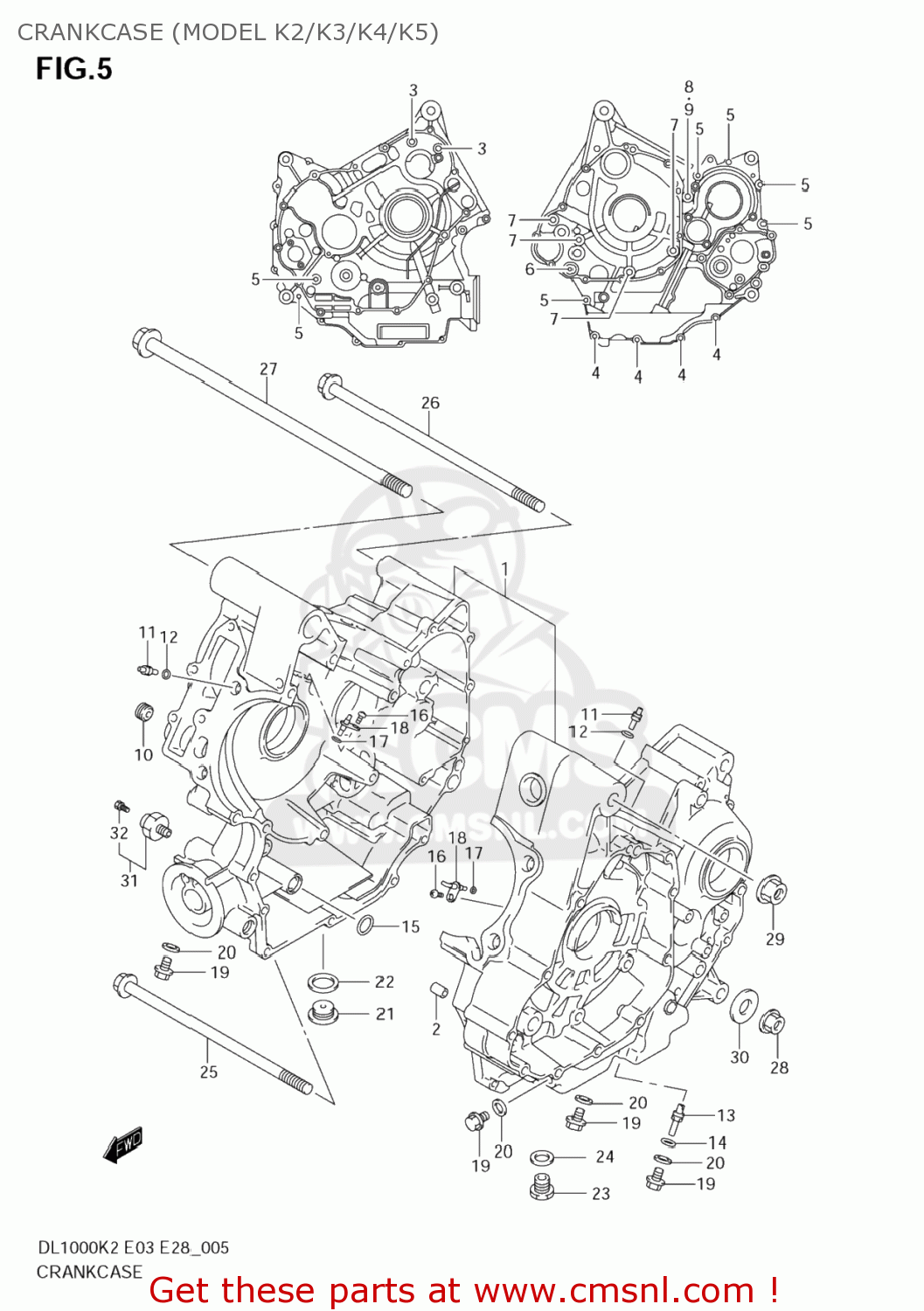

CRANKCASE (MODEL K2/K3/K4/K5)

DL1000 VSTROM 2003 (K3) USA (E03)

Crankcase (model k2/k3/k4/k5) diagram DL1000 VSTROM 2003 (K3) USA (E03)

CRANKCASE (MODEL K2/K3/K4/K5) DL1000 VSTROM 2003 (K3) USA (E03)
CRANKCASE (MODEL K2/K3/K4/K5) DL1000 VSTROM 2003 (K3) USA (E03)
CRANKCASE (MODEL K2/K3/K4/K5) DL1000 VSTROM 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1130206810
ref: 1-1
CRANKCASE SET
€ 1,923.50
1-2
1130206812
ref: 1-2
CRANKCASE SET
€ 1,923.50
1-3
1130206821
ref: 1-3
CRANKCASE SET
€ 1,854.50
2
1131933E00
ref: 2
PIN,CRANKCASE
1131933E00
€ 4.00
3
0910608142
ref: 3
BOLT(8X110)
0910608142
€ 5.50
4
0154706303
ref: 4
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
5
0154706703
ref: 5
01547-0670B
BOLT
€ 3.00
6
0154706853
ref: 6
01547-0685B
BOLT, CRANKCASE (6X85)
€ 2.50
7
0712008903
ref: 7
07120-0890B
BOLT
€ 4.50
8
0910608136
ref: 8
BOLT(8X125)
€ 6.00
9
0832201083
ref: 9
08322-0108A
WASHER
0832201083
€ 1.50
10
1132902F00
ref: 10
JET,OIL GALLERY(3.6)
1132902F00
€ 4.50
11
0949320014
ref: 11
JET,OIL GALLERY
0949320014
€ 8.00
12
0928004004
ref: 12
O RING(D:1.2,ID:4)
0928004004
€ 2.00
13
0949320014
ref: 13
JET,OIL GALLERY
0949320014
€ 8.00
14
0928004004
ref: 14
O RING(D:1.2,ID:4)
0928004004
€ 2.00
15
0928012009
ref: 15
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
16-1
0912506086
ref: 16-1
SCREW(6X12)
0912506086
€ 2.00
16-2
0910606075
ref: 16-2
BOLT(6X12)
0910606075
€ 2.50
17
0928004004
ref: 17
O RING(D:1.2,ID:4)
0928004004
€ 2.00
18
1139006G00
ref: 18
JET,PISTON COOLING
€ 20.50
19
0155008123
ref: 19
01550-0812A
BOLT
0155008123
€ 3.50
20-1
0916808015
ref: 20-1
GASKET(8.2X14X1).6 (NAS)
0916808015
€ 2.50
20-2
0916808016
ref: 20-2
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
21
0924816012
ref: 21
PLUG,16X8
0924816012
€ 4.50
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
23
0924714036
ref: 23
PLUG(14X20)
0924714036
€ 5.50
24
0916814002
ref: 24
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
25
0910310205
ref: 25
BOLT(10X225)
0910310205
€ 9.50
26-1
0910310226
ref: 26-1
BOLT(10X265)
0910310226
€ 12.00
26-2
0910310347
ref: 26-2
BOLT(10X275)
0910310347
€ 12.00
27-1
0910312069
ref: 27-1
BOLT(12X320)
0910312069
€ 33.50
27-2
0910312073
ref: 27-2
BOLT(12X330)
0910312073
€ 31.00
28-1
0915910058
ref: 28-1
09159-10115
NUT
0915910058
€ 4.00
28-2
0831931103
ref: 28-2
08319-3110A
NUT
0831931103
€ 3.00
29
0915912054
ref: 29
NUT
0915912054
€ 8.00
30
0916010039
ref: 30
WASHER(10.5X22X2.3)
0916010039
€ 2.50
31
3782033D10
ref: 31
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
32
3782233D00
ref: 32
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
