TAIL LAMP (MODEL K2/K3)
DL1000 VSTROM 2003 (K3) USA (E03)

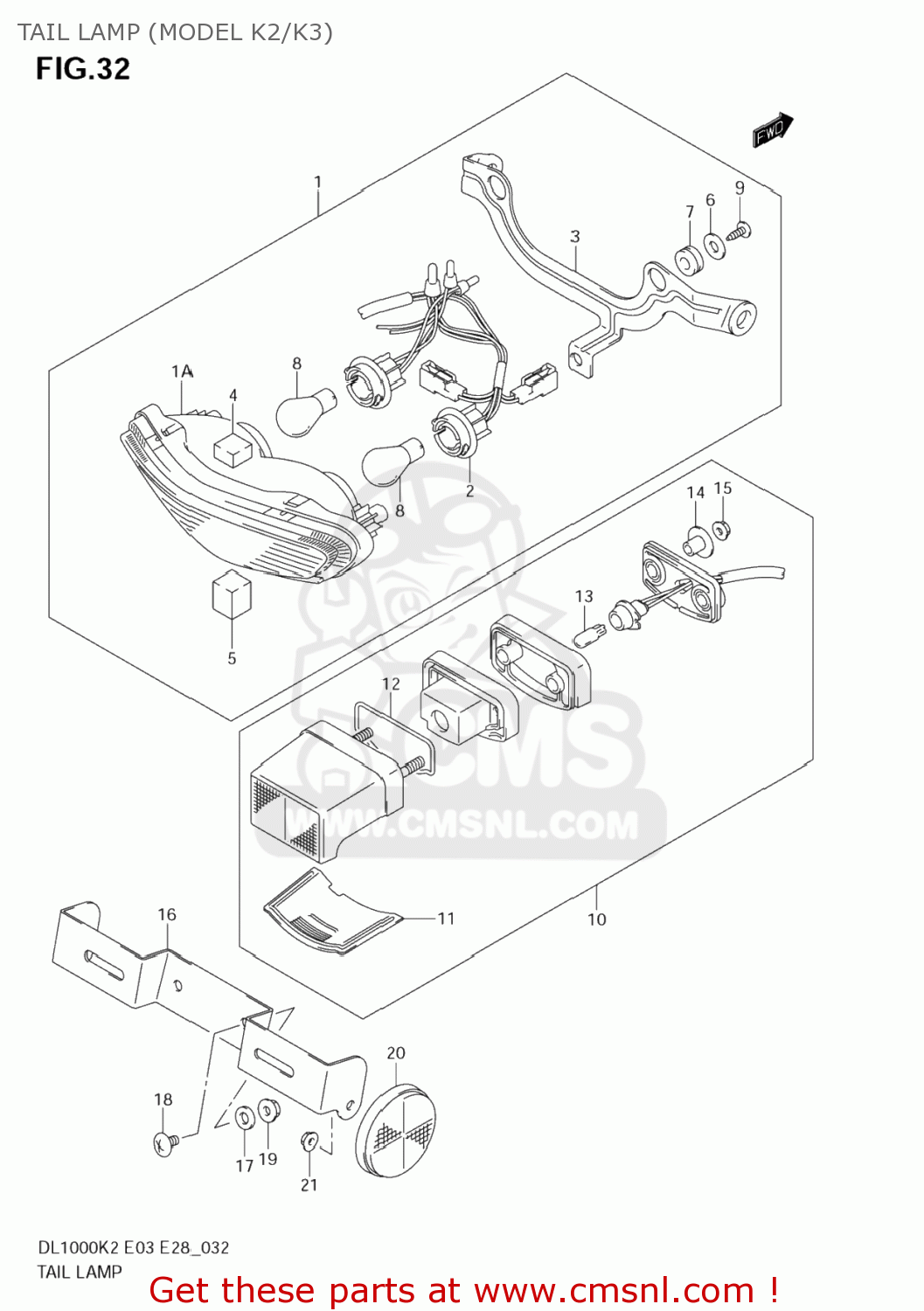

Tail lamp (model k2/k3) diagram DL1000 VSTROM 2003 (K3) USA (E03)
TAIL LAMP (MODEL K2/K3) DL1000 VSTROM 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571006G30
ref: 1
LAMP ASSY,RR COMBINATION
€ 0.00
1A
3572006G30
ref: 1A
UNIT
€ 61.50
2
3571806G00
ref: 2
SOCKET & CORD ASSY
€ 58.50
3
3572606G00
ref: 3
BRACKET
€ 51.50
4
3573406G00
ref: 4
CUSHION,UPR(20X20X12)
€ 4.50
5
3573906G00
ref: 5
CUSHION,LWR(20X20X25)
€ 5.00
6
0916005501
ref: 6
WASHER(5.5X20X1.2)
€ 2.00
7
0932010049
ref: 7
CUSHION
€ 2.00
8
0947112083
ref: 8
09471-12128
BULB(12V21/5W)
€ 6.00
9
0324205163
ref: 9
03241-0516A
SCREW
€ 1.50
10
3591006G30
ref: 10
35910-06G31
LAMP ASSY, LICENSE
€ 0.00
11
3591208F00
ref: 11
LENS
€ 8.50
12
3591308F00
ref: 12
GASKET (NAS)
€ 110.00
13
0947112081
ref: 13
BULB(12V5W)
€ 1.50
14
3576608F00
ref: 14
SPACER
€ 5.50
15
0831620063
ref: 15
08316-2006A
NUT
€ 2.00
16
3592706G00
ref: 16
BRACKET,LICENSE PLATE
€ 0.00
17
0916006128
ref: 17
WASHER(6.5X15X1.6)
€ 2.50
18
0214206123
ref: 18
02142-0612A
SCREW 6X12
€ 2.00
19
0831610063
ref: 19
08316-1006B
NUT
€ 2.50
20
3597014A20
ref: 20
REFLECTOR ASSY,RR SIDE
€ 11.00
21
0831610053
ref: 21
08316-1005A
NUT
€ 2.50
