TRANSMISSION (MODEL K2/K3)

DL1000 VSTROM 2003 (K3) USA (E03)

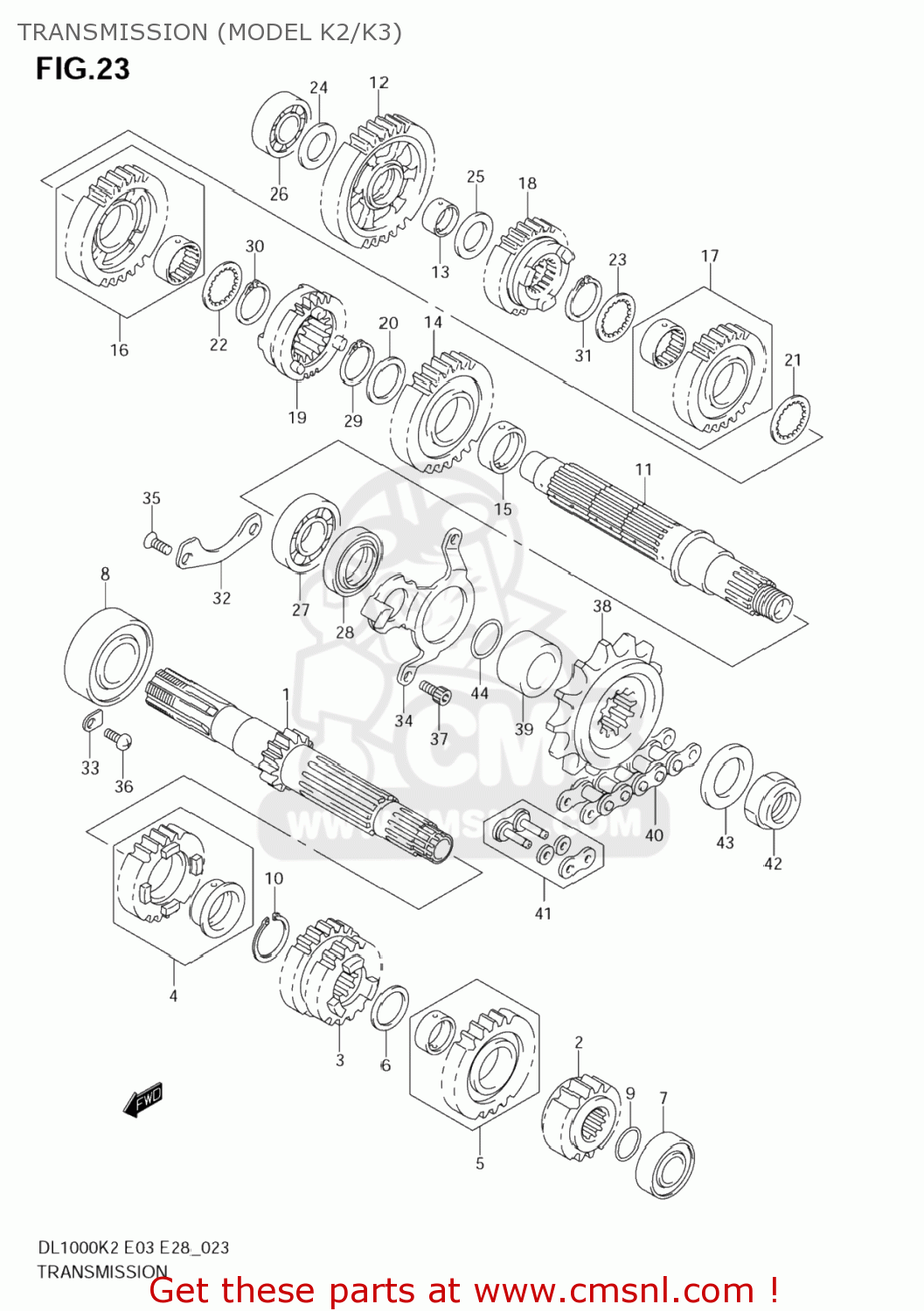

Transmission (model k2/k3) diagram DL1000 VSTROM 2003 (K3) USA (E03)

TRANSMISSION (MODEL K2/K3) DL1000 VSTROM 2003 (K3) USA (E03)
TRANSMISSION (MODEL K2/K3) DL1000 VSTROM 2003 (K3) USA (E03)
TRANSMISSION (MODEL K2/K3) DL1000 VSTROM 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412006G00
ref: 1
SHAFT,COUNTER (NT:12)
€ 211.00
2
2422102F01
ref: 2
GEAR,2ND DRIVE(NT:15)
2422102F01
€ 67.50
3
2423102F13
ref: 3
GEAR,3RD & 4TH DRIVE(NT:18/27)
2423102F13
€ 152.50
4
2425102810
ref: 4
24251-02811
GEAR SET,FIFTH DRIVE (NT:
2425102810
€ 100.50
5
2426102820
ref: 5
GEAR SET, 6TH DRIVE (NT:23)
2426102820
€ 90.50
6
0918122167
ref: 6
SHIM(22X30X1)
0918122167
€ 3.00
7
0926220139
ref: 7
BEARING(20X47X14)
0926220139
€ 27.50
8
0926225073
ref: 8
BEARING(25X62X17)
0926225073
€ 21.50
9
0928017004
ref: 9
O RING(D:1.9,ID:16.6)
0928017004
€ 3.00
10
0938027001
ref: 10
CIRCLIP
0938027001
€ 2.00
11
2413002F10
ref: 11
SHAFT,DRIVE
€ 296.00
12
2431106G00
ref: 12
GEAR,1ST DRIVEN
€ 100.50
13
2431202F00
ref: 13
BUSH
2431202F00
€ 19.50
14
2432102F11
ref: 14
GEAR,2ND DRIVEN(NT:29)
€ 90.00
15
2432202F01
ref: 15
BUSH,2ND DRIVEN GEAR
2432202F01
€ 11.00
16
2433102810
ref: 16
24331-02811
GEAR SET,THIRD DRIVEN (NT
2433102810
€ 122.50
17
2434102810
ref: 17
24341-02811
GEAR SET,FOURTH DRIVEN (NT
€ 146.00
18
2435102F13
ref: 18
GEAR,5TH DRIVEN(NT:25)
2435102F13
€ 85.00
19
2436106G00
ref: 19
GEAR,6TH DRIVEN(NT:21)
€ 148.00
20
0916027008
ref: 20
WASHER(27X36X1)
0916027008
€ 3.00
21
0916727002
ref: 21
WASHER,LOCK
0916727002
€ 5.00
22
2433302F00
ref: 22
WASHER,3RD & 4TH DRIVEN
2433302F00
€ 3.50
23
2433302F00
ref: 23
WASHER,3RD & 4TH DRIVEN
2433302F00
€ 3.50
24
0918120251
ref: 24
SHIM(20X34X1)
0918120251
€ 3.00
25
0918122223
ref: 25
SHIM(22X34X1)
0918122223
€ 3.00
26
0926220082
ref: 26
BEARING(20X52X15)
0926220082
€ 18.00
27
0926228040
ref: 27
BEARING(28X68X20)
0926228040
€ 94.50
28
0928338020
ref: 28
SEAL,OIL(38X52X8)
0928338020
€ 26.50
29
0938027001
ref: 29
CIRCLIP
0938027001
€ 2.00
30
0938027001
ref: 30
CIRCLIP
0938027001
€ 2.00
31
0938027001
ref: 31
CIRCLIP
0938027001
€ 2.00
32
2474106G00
ref: 32
RETAINER,DRIVE SHAFT BEARING
€ 4.00
33
2474121A00
ref: 33
RETAINER
2474121A00
€ 2.00
34
2475106G00
ref: 34
RETAINER,DRIVE SHAFT OIL SEAL
2475106G00
€ 8.00
35
0912606011
ref: 35
SCREW(6X12)
0912606011
€ 2.00
36
0211206123
ref: 36
02112-0612A
SCREW
0211206123
€ 1.50
37
0713006123
ref: 37
07130-0612A
BOLT,STRANGER
€ 2.50
38
2751020A20
ref: 38
SPROCKET,ENGINE(17T)
2751020A20
€ 38.50
39
2753124B13
ref: 39
SPACER,ENGINE SPROCKET
2753124B13
€ 28.00
40
2760006G00112
ref: 40
CHAIN ASSY (RK525SMOZ7) (GSX-R600K4/K5L:112-110)
2760006G00112
€ 160.00
41
2762006G00
ref: 41
JOINT SET
2762006G00
€ 15.00
42
0915920004
ref: 42
NUT
0915920004
€ 12.00
43
0916025009
ref: 43
WASHER(25X41X3)
0916025009
€ 5.00
44
0928024010
ref: 44
O RING(D:2.4,ID:23.7)
0928024010
€ 5.50
