SPEEDOMETER (MODEL K4/K5/K6)

DL1000 VSTROM 2003 (K3) USA (E03)

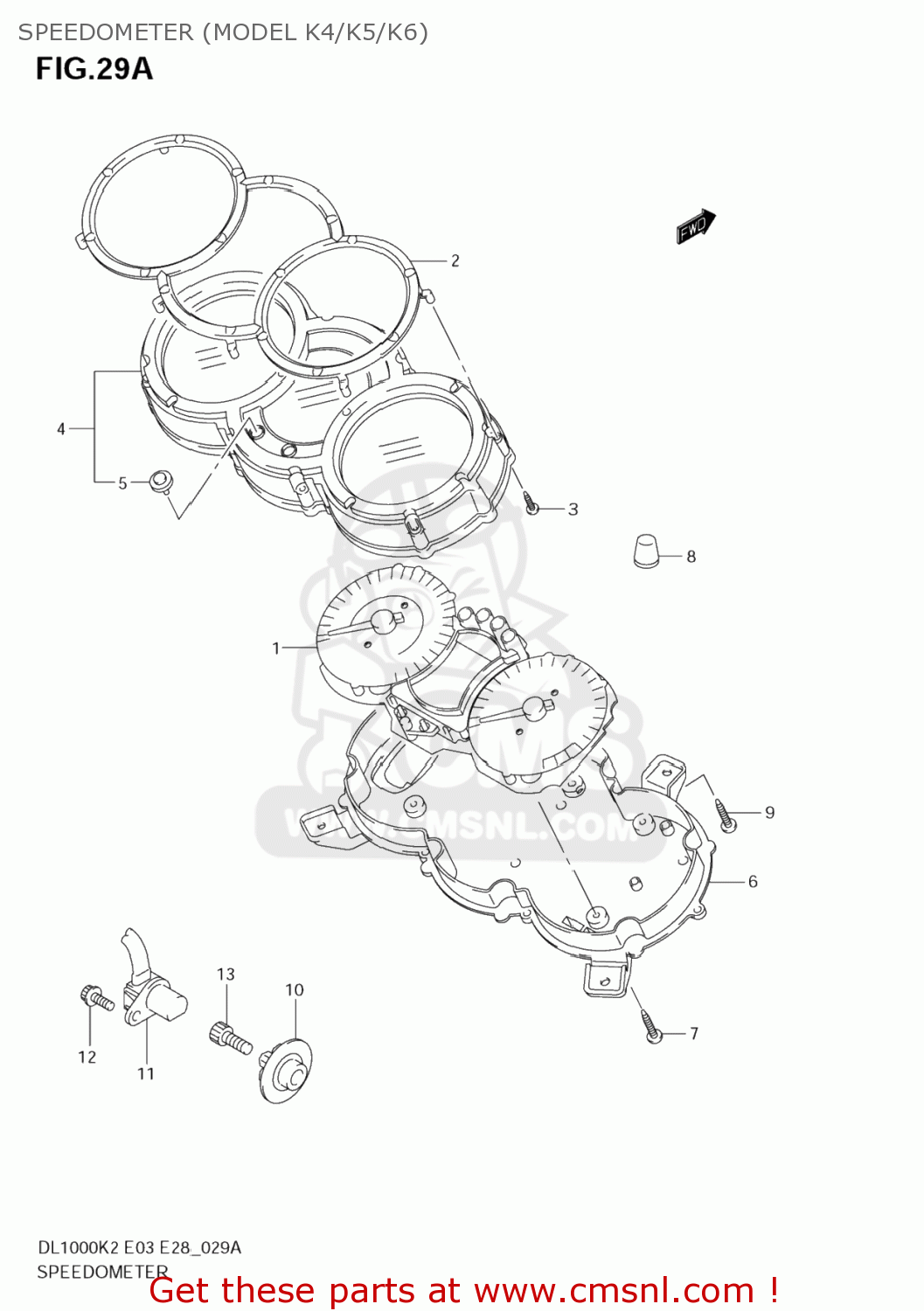

Speedometer (model k4/k5/k6) diagram DL1000 VSTROM 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412006G60
ref: 1-1
34120-06G61

SPEEDOMETER

€ 409.50

1-2

3412006G50
ref: 1-2

SPEEDOMETER

€ 871.00

3419306G50
ref: 2

RING

€ 187.00

3418331F10
ref: 3

SCREW(2.3X8)

€ 3.00

3415027G00
ref: 4

CASE,UPR

€ 146.50

3412424F00
ref: 5

SWITCH,LEVER

€ 6.50

3411127G00
ref: 6

CASE,LWR

€ 72.00

0913203008
ref: 7

SCREW(3X16)

€ 1.50

3495510G00
ref: 8

CUSHION,SPEEDOMETER

€ 3.50

0354105203
ref: 9
03541-0520A

SCREW

€ 2.50

3498135F00
ref: 10
34981-38G01

ROTOR,SPEED

€ 15.00

3499047F00
ref: 11

SENSOR,SPEED

€ 124.50

0712005103
ref: 12
07120-0510B

BOLT

€ 2.00

0713008253
ref: 13
07130-0825B

BOLT

€ 3.50
