SIDE COWL INSTALLATION PARTS

DL1000 VSTROM 2003 (K3) USA (E03)

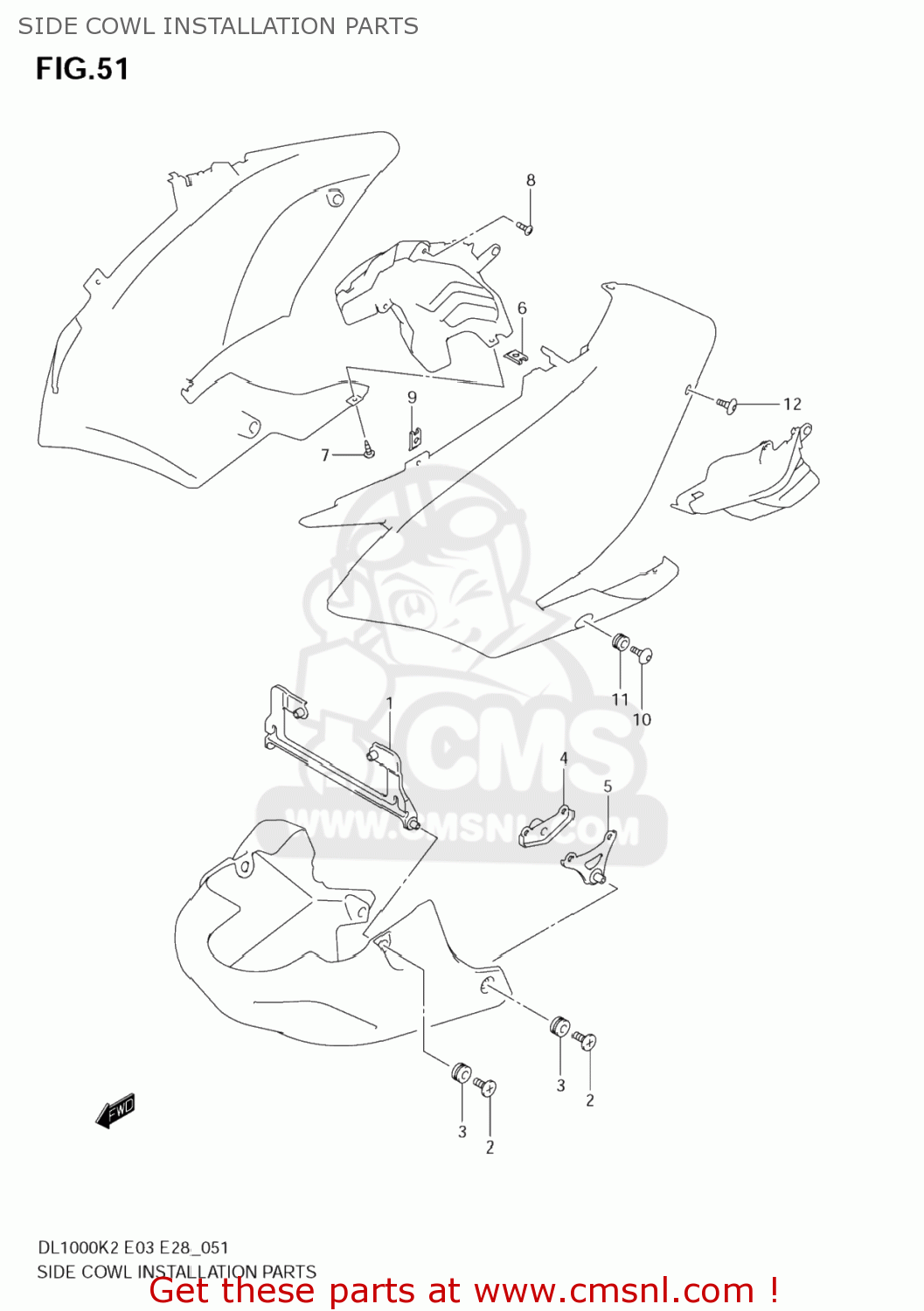

Side cowl installation parts diagram DL1000 VSTROM 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

9452006G00
ref: 1

BRACKET,UNDER COWLING FR

€ 43.50

1117812F10
ref: 2

BOLT

€ 5.50

0932009016
ref: 3

CUSHION

€ 2.50

9453006G00
ref: 4

BRACKET,UNDER COWLING,R

€ 6.50

9454006G00
ref: 5

BRACKET,UNDER COWLING,L

€ 8.00

0914805038
ref: 6

NUT

€ 2.50

0324205103
ref: 7
03241-0510A

SCREW

€ 2.50

0214205103
ref: 8
02142-0510B

SCREW

€ 2.50

9448424F00
ref: 9

NUT,COWL

€ 4.00

0913906087
ref: 10
09139-06126

SCREW(6X20)

€ 4.00

0932009016
ref: 11

CUSHION

€ 2.50

0913906122
ref: 12

SCREW(6X10)

€ 3.00
