STARTER CLUTCH

DL1000 VSTROM 2003 (K3) USA (E03)

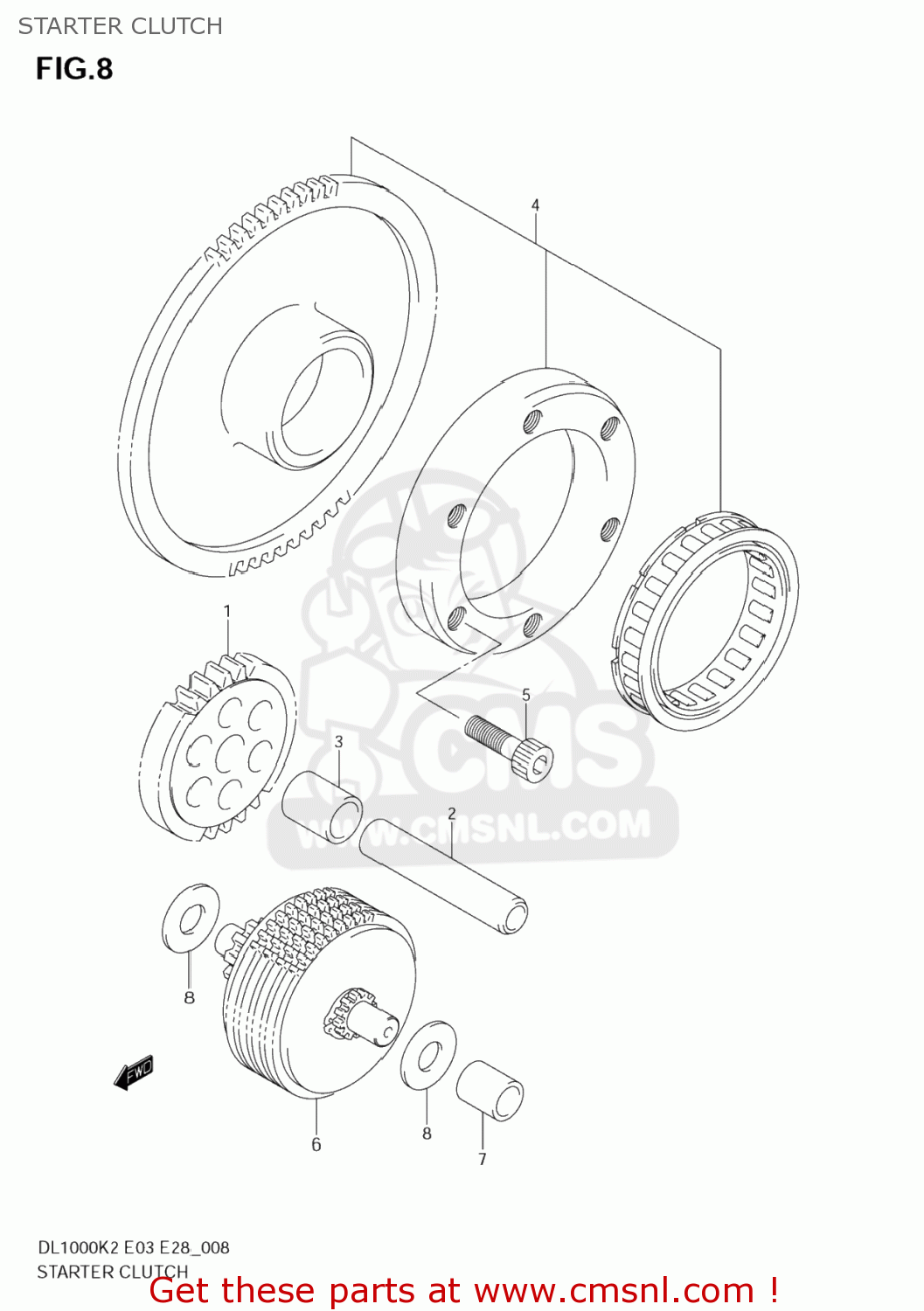

Starter clutch diagram DL1000 VSTROM 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1261206G00
ref: 1

GEAR,STARTER IDLE NO.2

€ 50.00

0920612002
ref: 2

PIN(7X12X50.5)

€ 9.00

0918012140
ref: 3

SPACER(12.5X19X17.5)

€ 5.50

1260006811
ref: 4

CLUTCH SET,STARTER

€ 272.00

0910608106
ref: 5

BOLT(8X20)

€ 3.00

1260006G00
ref: 6
12600-06G01

LIMITER ASSY, STARTER IDLE

€ 125.50

1260006G00
ref: 6
12600-06G01

LIMITER ASSY, STARTER IDLE

€ 125.50

1261831D01
ref: 7

BUSH,LIMITER GEAR SHAFT

€ 17.50

0821110221
ref: 8

WASHER

€ 2.50
