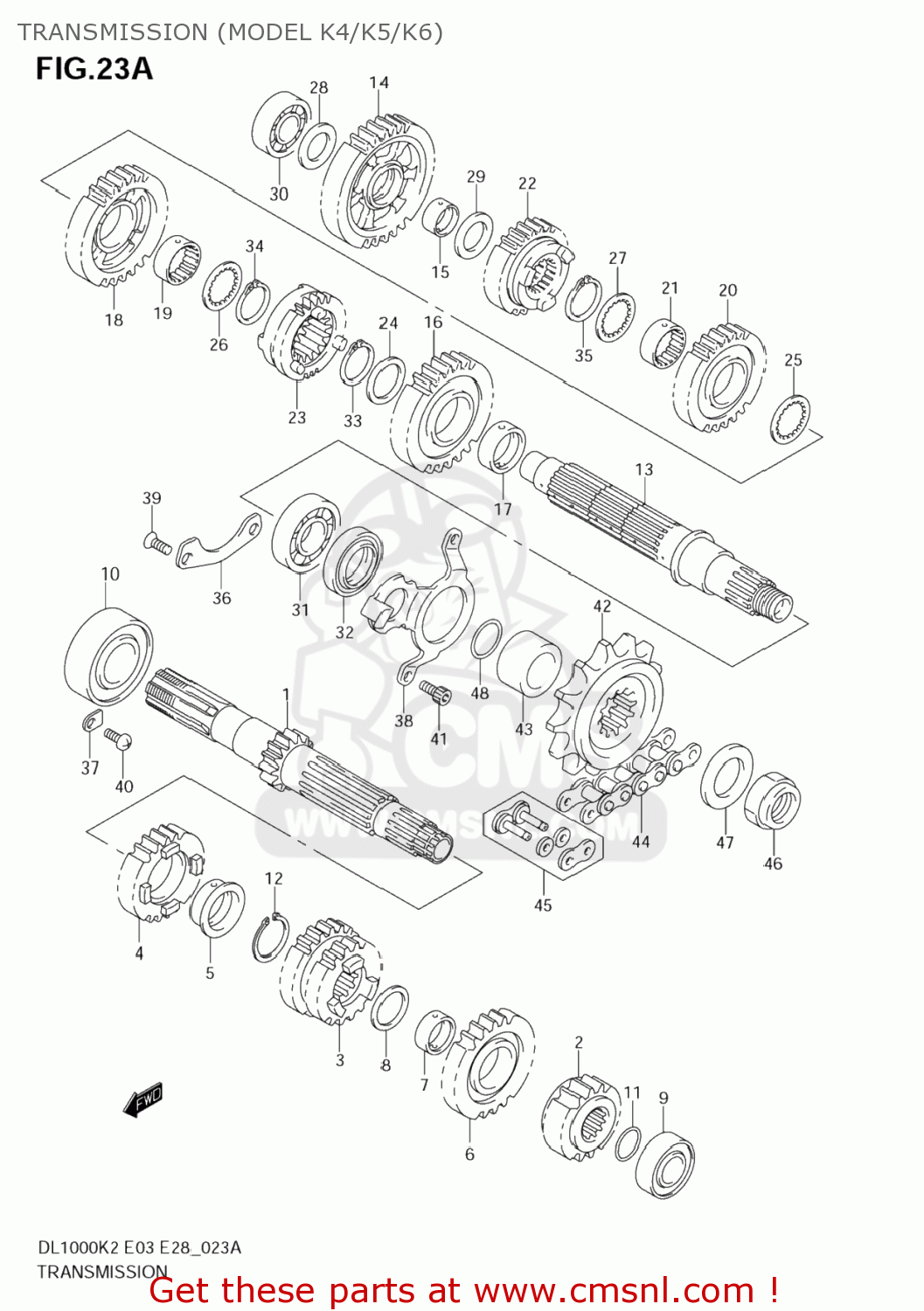

TRANSMISSION (MODEL K4/K5/K6)

ref

part #

description

quantity

1

2412006G00
ref: 1

SHAFT,COUNTER (NT:12)

€ 211.00

2

2422102F01
ref: 2

GEAR,2ND DRIVE(NT:15)

€ 67.50

3

2423102F20
ref: 3

GEAR,3RD & 4TH DRIVE(NT:18/22)

€ 101.50

4

2425102F11
ref: 4

GEAR,5TH DRIVE(NT:23)

€ 98.50

5

2425202F10
ref: 5

BUSH,5TH DRIVE GEAR

€ 20.00

6

2426106G00
ref: 6

GEAR,6TH DRIVE(NT:23)

€ 140.00

7

2426202F00
ref: 7

BUSH,6TH DRIVE GEAR

€ 14.50

8

0918122167
ref: 8

SHIM(22X30X1)

€ 3.00

9

0926220139
ref: 9

BEARING(20X47X14)

€ 27.50

10

0926225073
ref: 10

BEARING(25X62X17)

€ 21.50

11

0928017004
ref: 11

O RING(D:1.9,ID:16.6)

€ 3.00

12

0938027001
ref: 12

CIRCLIP

€ 2.00

13

2413002F10
ref: 13

SHAFT,DRIVE

€ 296.00

14

2431106G00
ref: 14

GEAR,1ST DRIVEN

€ 100.50

15

2431202F00
ref: 15

BUSH

€ 19.50

16

2432102F11
ref: 16

GEAR,2ND DRIVEN(NT:29)

€ 90.00

17

2432202F01
ref: 17

BUSH,2ND DRIVEN GEAR

€ 11.00

18

2433102F12
ref: 18

GEAR,3RD DRIVEN(NT:27)

€ 85.00

19

2433217E20
ref: 19

BUSH,3RD DRIVEN GEAR

€ 22.00

20

2434102F20
ref: 20

GEAR,4TH DRIVEN(NT:27)

€ 87.50

21

2433217E20
ref: 21

BUSH,3RD DRIVEN GEAR

€ 22.00

22

2435102F13
ref: 22

GEAR,5TH DRIVEN(NT:25)

€ 85.00

23

2436106G00
ref: 23

GEAR,6TH DRIVEN(NT:21)

€ 148.00

24

0916027008
ref: 24

WASHER(27X36X1)

€ 3.00

25

0916727002
ref: 25

WASHER,LOCK

€ 5.00

26

2433302F00
ref: 26

WASHER,3RD & 4TH DRIVEN

€ 3.50

27

2433302F00
ref: 27

WASHER,3RD & 4TH DRIVEN

€ 3.50

28

0918120251
ref: 28

SHIM(20X34X1)

€ 3.00

29

0918122223
ref: 29

SHIM(22X34X1)

€ 3.00

30

0926220082
ref: 30

BEARING(20X52X15)

€ 18.00

31

0926228040
ref: 31

BEARING(28X68X20)

€ 94.50

32

0928338020
ref: 32

SEAL,OIL(38X52X8)

€ 26.50

33

0938027001
ref: 33

CIRCLIP

€ 2.00

34

0938027001
ref: 34

CIRCLIP

€ 2.00

35

0938027001
ref: 35

CIRCLIP

€ 2.00

36

2474106G00
ref: 36

RETAINER,DRIVE SHAFT BEARING

€ 4.00

37

2474121A00
ref: 37

RETAINER

€ 2.00

38

2475106G00
ref: 38

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

39

0912606011
ref: 39

SCREW(6X12)

€ 2.00

40

0211206123
ref: 40
02112-0612A

SCREW

€ 1.50

41

0713006123
ref: 41
07130-0612A

BOLT,STRANGER

€ 2.50

42

2751020A20
ref: 42

SPROCKET,ENGINE(17T)

€ 38.50

43

2753124B13
ref: 43

SPACER,ENGINE SPROCKET

€ 28.00

44

2760006G00112
ref: 44

CHAIN ASSY (RK525SMOZ7) (GSX-R600K4/K5L:112-110)

€ 160.00

45

2762006G00
ref: 45

JOINT SET

€ 15.00

46

0915920004
ref: 46

NUT

€ 12.00

47

0916025009
ref: 47

WASHER(25X41X3)

€ 5.00

48

0928024010
ref: 48

O RING(D:2.4,ID:23.7)

€ 5.50
