FRAME

DL1000 VSTROM 2003 (K3) USA (E03)

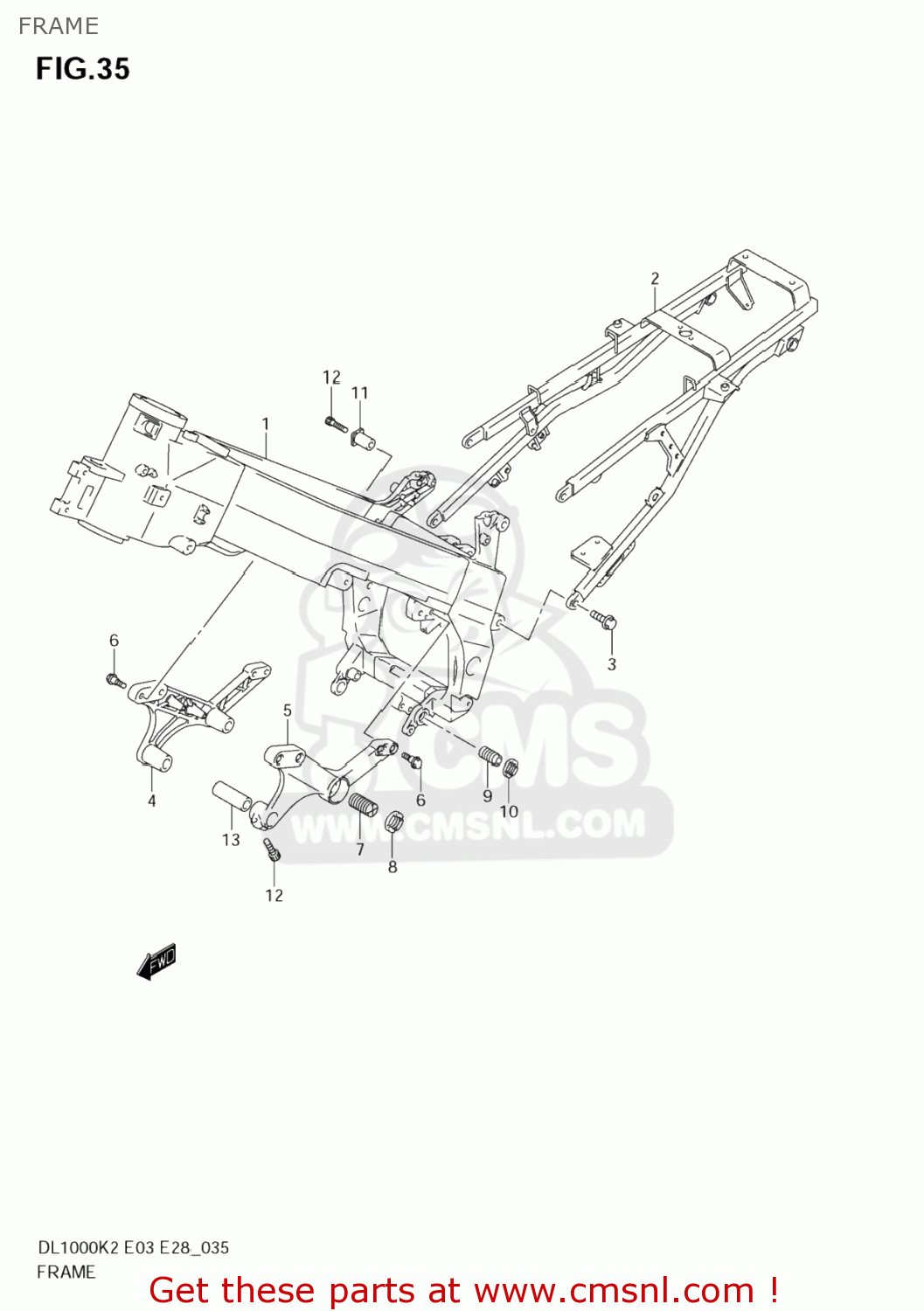

Frame diagram DL1000 VSTROM 2003 (K3) USA (E03)

FRAME DL1000 VSTROM 2003 (K3) USA (E03)

FRAME DL1000 VSTROM 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110006G00YD8
ref: 1-1

FRAME COMP

€ 1,621.00

1-2

4110006G00YAP
ref: 1-2
41100-06G01-YAP

FRAME (BLACK)

€ 2,431.50

2

4120006G00
ref: 2

RAIL,SEAT

€ 712.00

3-1

0155010303
ref: 3-1
01550-1030A

BOLT

€ 3.00

3-2

0910310379
ref: 3-2

BOLT(10X30)

€ 4.00

4-1

4191106G00YD8
ref: 4-1
41911-06G01-YD8

BRACKET,ENG MT

€ 274.00

4-2

4191106G01YD8
ref: 4-2

BRACKET,ENGINE MOUNTING,R

€ 274.00

4-3

4191106G20YAP
ref: 4-3

BRACKET,ENGINE MOUNTING,R

€ 307.00

5-1

4191206G00YD8
ref: 5-1
41912-06G01-YD8

BRACKET,ENG MT

€ 213.50

5-2

4191206G01YD8
ref: 5-2

BRACKET,ENGINE MOUNTING,L

€ 213.50

5-3

4191206G20YAP
ref: 5-3

BRACKET,ENGINE MOUNTING,L

€ 255.00

6-1

0910608121
ref: 6-1

BOLT(8X30)

€ 3.50

6-2

0910608175
ref: 6-2

BOLT(8X30)

€ 3.50

7-1

4192119F11
ref: 7-1

BOLT,CRANKCASE ADJUST

€ 42.00

7-2

4192316G00
ref: 7-2

BOLT,CRANK CASE ADJUST CTR

€ 19.00

8

4192219F00
ref: 8
41922-19F20

NUT,CRANKCASE ADJUST

€ 12.00

9-1

4192133E11
ref: 9-1

BOLT,CRANKCASE ADJUST

€ 46.00

9-2

4192116G00
ref: 9-2

BOLT,CASE LWR & RR HEAD ADJ

€ 10.50

10

4192233E00
ref: 10

NUT,CRANK CASE ADJUST BOLT

€ 18.50

11

4194119F01
ref: 11

SPACER,MOUNTING RR UPR,R

€ 25.00

12

0910608149
ref: 12
09106-08170

BOLT

€ 3.00

13

4119802F00
ref: 13

SPACER,ENG HEAD MTG FR,L

€ 31.50
