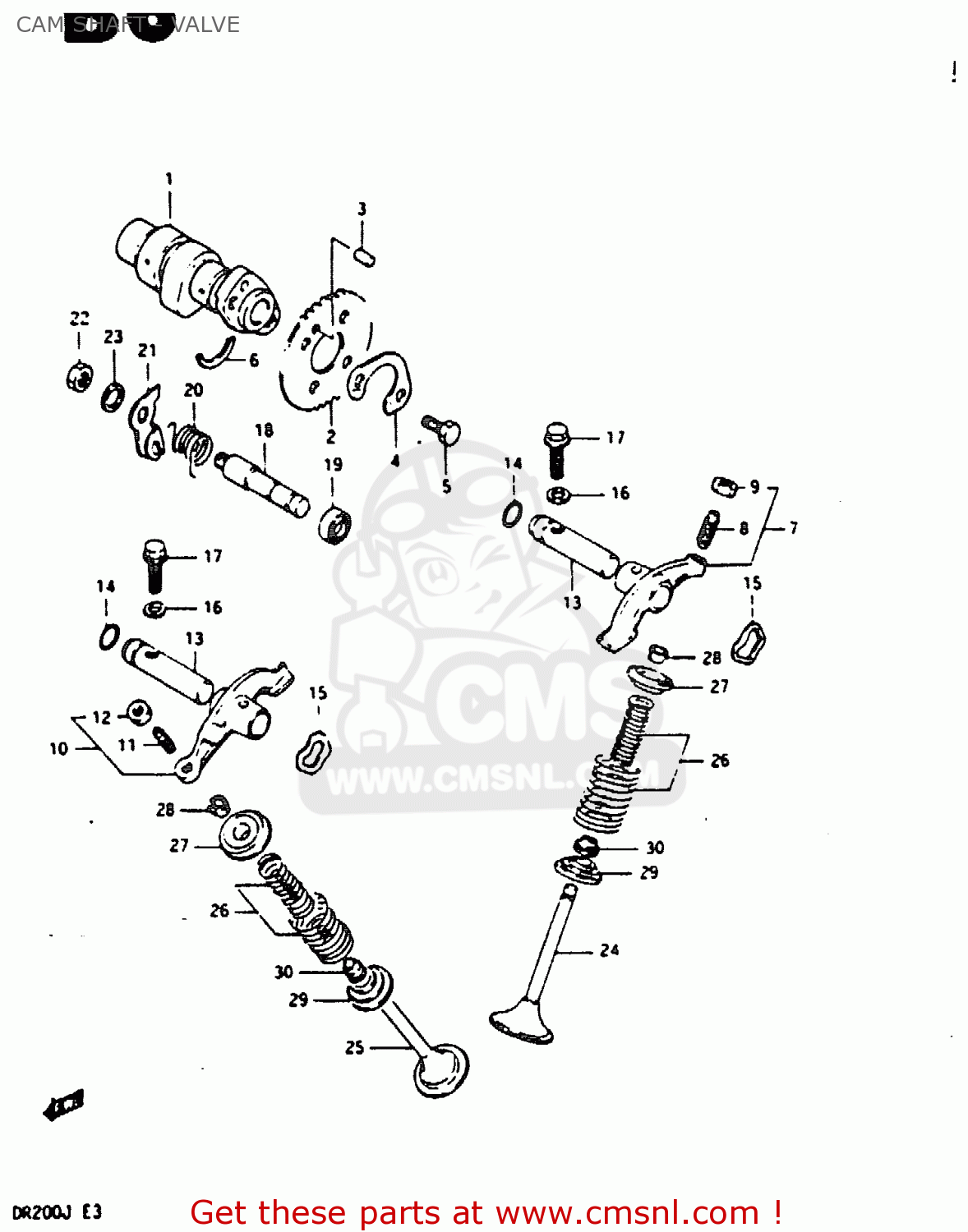

CAM SHAFT - VALVE - DR200 1987 (H)

ref

part #

description

quantity

1

1271142A00
ref: 1

CAMSHAFT

€ 131.50

2

1274105201
ref: 2

SPROCKET,CAMSHAFT

€ 14.00

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274705201
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7

1284005200
ref: 7

ARM,VALVE ROCKER

€ 28.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1285024400
ref: 10

ARM,VALVE ROCKER,EXHAUST

€ 28.00

11

1284232411
ref: 11

SCREW,TAPPET ADJUSTING

€ 5.00

12

1284332400
ref: 12

NUT,ADJUSTING SCREW

€ 2.50

13

1286105201
ref: 13

SHAFT,VALVE ROCKET

€ 9.50

14

0928009005
ref: 14

O RING(D:1.9,ID:8.6)

€ 4.00

15

0916412021
ref: 15

WASHER

€ 2.00

16

0916806015
ref: 16

WASHER

€ 2.00

17

0151706254
ref: 17

BOLT

€ 2.50

18

1294124401
ref: 18

SHAFT,DECOMPRESSION

€ 15.50

19-1

0928410008
ref: 19-1
MODEL G/H

OIL SEAL

€ 6.50

19-2

0928210014
ref: 19-2
MODEL J

SEAL,OIL(10X17X6)

€ 6.50

20

0944817014
ref: 20

SPRING

€ 21.50

21

1294242A01
ref: 21

LEVER,DECOMPRESSION SHAFT

€ 3.50

22

0831022085
ref: 22

NUT 8MM

€ 2.00

23

0832211084
ref: 23

WASHER

€ 1.50

24

1291142A00
ref: 24

VALVE,INTAKE

€ 22.00

25

1291242A00
ref: 25

VALVE,EXHAUST

€ 39.00

26

1292005210
ref: 26

SPRING SET,VALVE

€ 10.50

27

1293149200
ref: 27

RETAINER,VALVE SPRING

€ 5.50

28

1293224400
ref: 28

COTTER,VALVE

€ 2.00

29

1293349200
ref: 29

SEAT,VALVE SPRING

€ 4.50

30

0928905003
ref: 30

OIL SEAL

€ 6.50
