CYLINDER

DR200 1987 (H)

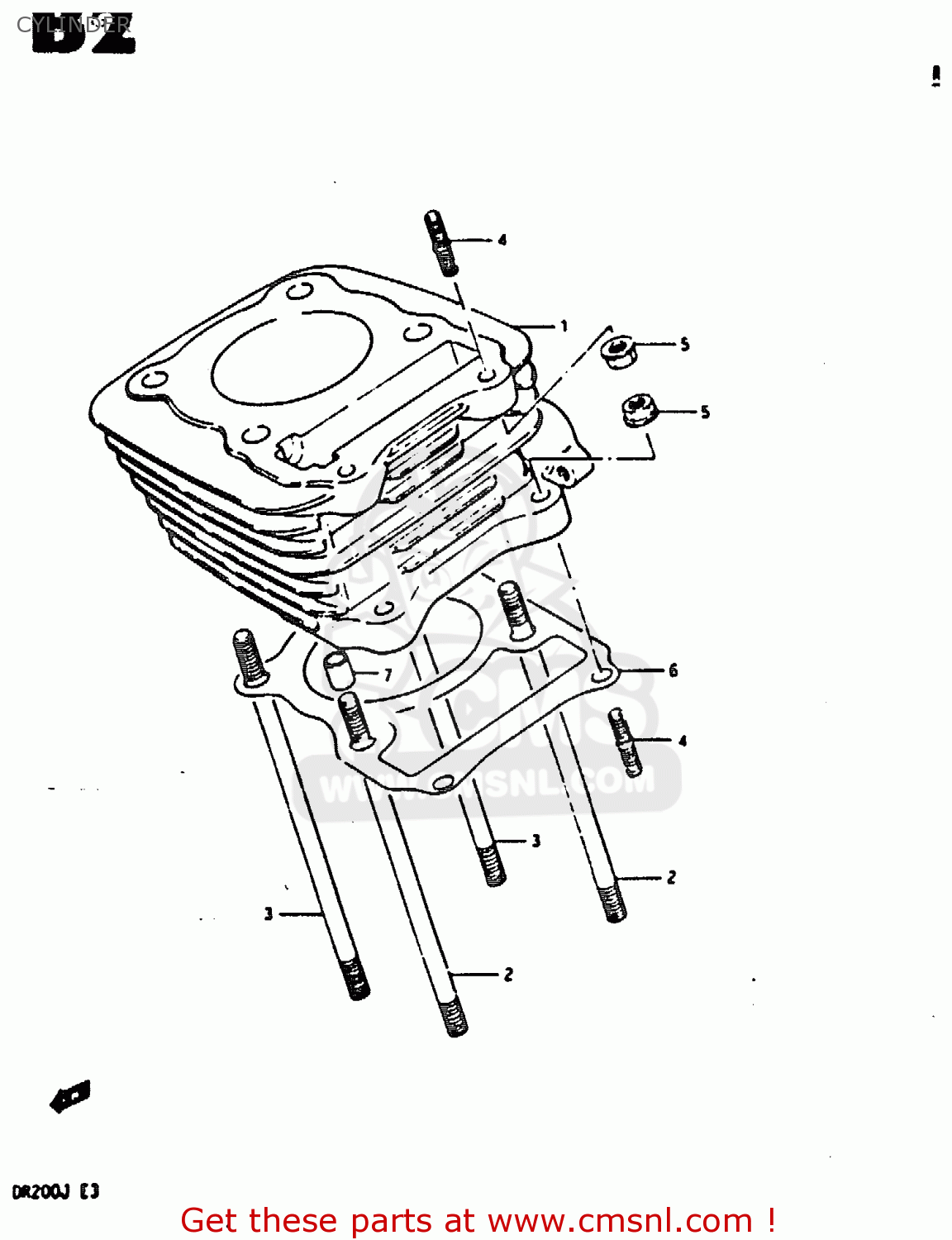

Cylinder diagram DR200 1987 (H)

CYLINDER DR200 1987 (H)

CYLINDER DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

1121042A00
ref: 1

CYLINDER

€ 281.00

2

0910808195
ref: 2

BOLT,STUD

€ 4.00

3

0910808184
ref: 3

BOLT,STUD(8X167)

€ 4.00

4

0142106255
ref: 4

STUD 6X25

€ 2.00

5

0831616064
ref: 5

NUT 6MM

€ 2.50

6

1124142A00
ref: 6

GASKET,CYLINDER (MCA)

€ 4.00

7

0421111149
ref: 7

PIN

€ 2.00
