FRONT MASTER CYLINDER

DR200 1987 (H)

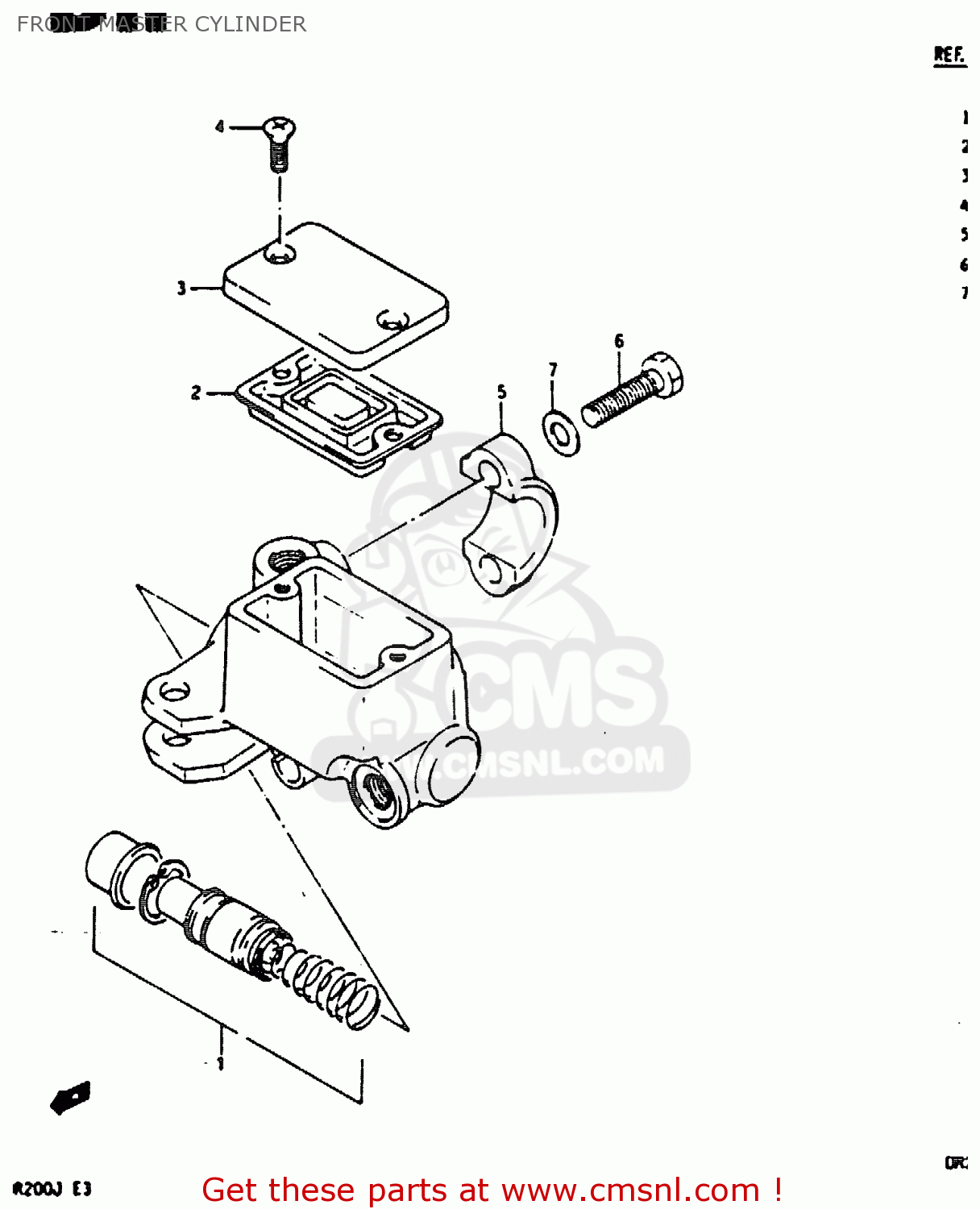

Front master cylinder diagram DR200 1987 (H)

FRONT MASTER CYLINDER DR200 1987 (H)

FRONT MASTER CYLINDER DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

0

5960013A20
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 191.50

1

5960013820
ref: 1

PISTON/CUP SET

€ 40.50

2

5966704700
ref: 2

DIAPHRAGM

€ 8.00

3

5966904710
ref: 3

CAP

€ 12.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967136500
ref: 5

HOLDER

€ 10.00

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
