FRONT BRAKE HOSE

DR200 1987 (H)

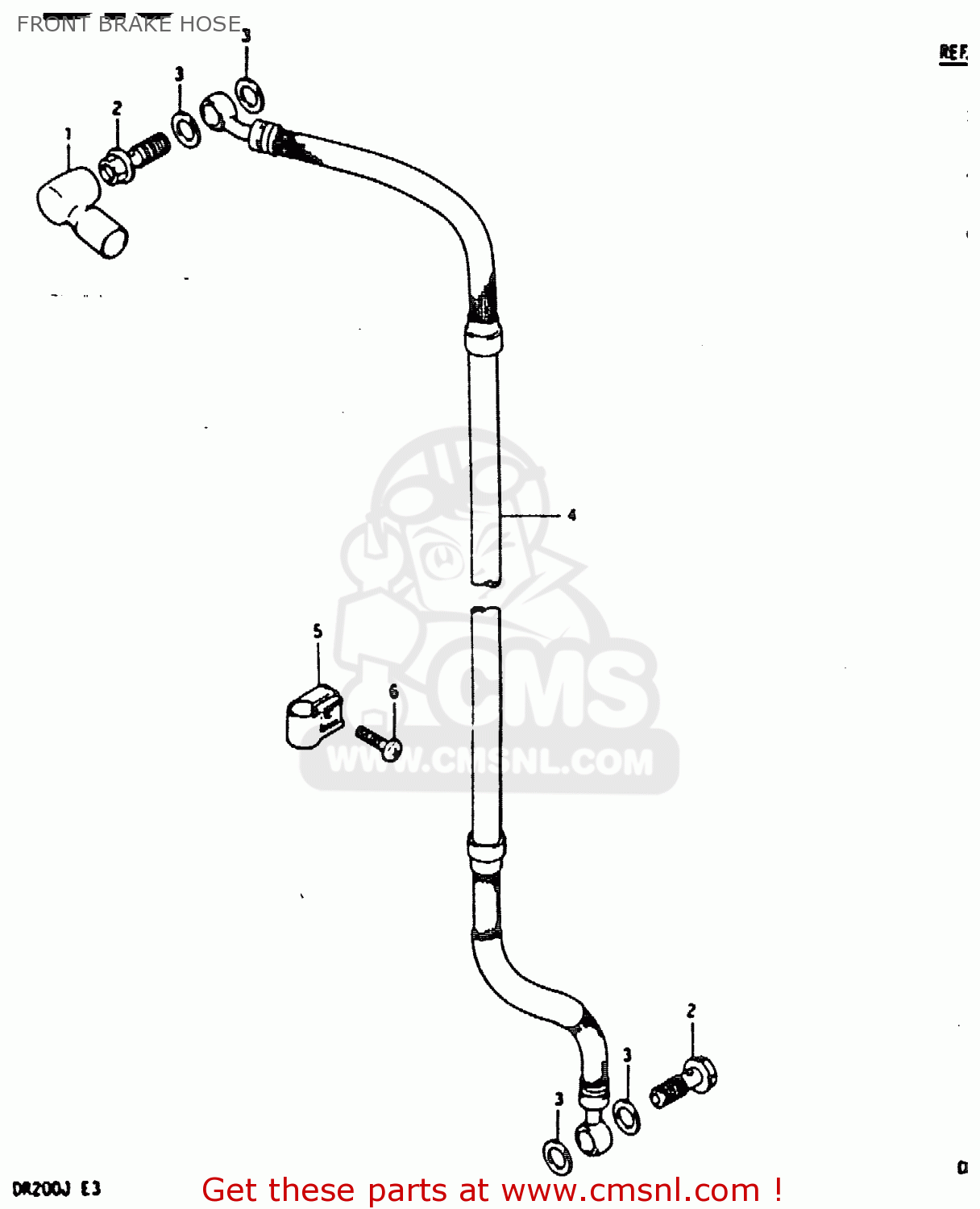

Front brake hose diagram DR200 1987 (H)

FRONT BRAKE HOSE DR200 1987 (H)

FRONT BRAKE HOSE DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948042A10
ref: 4

HOSE,FRONT BRAKE

€ 114.50

5

5862107A10
ref: 5

CLAMP,BRAKE HOSE

€ 3.50

6

0211206167
ref: 6

SCREW

€ 2.50
