FUEL COCK

DR200 1987 (H)

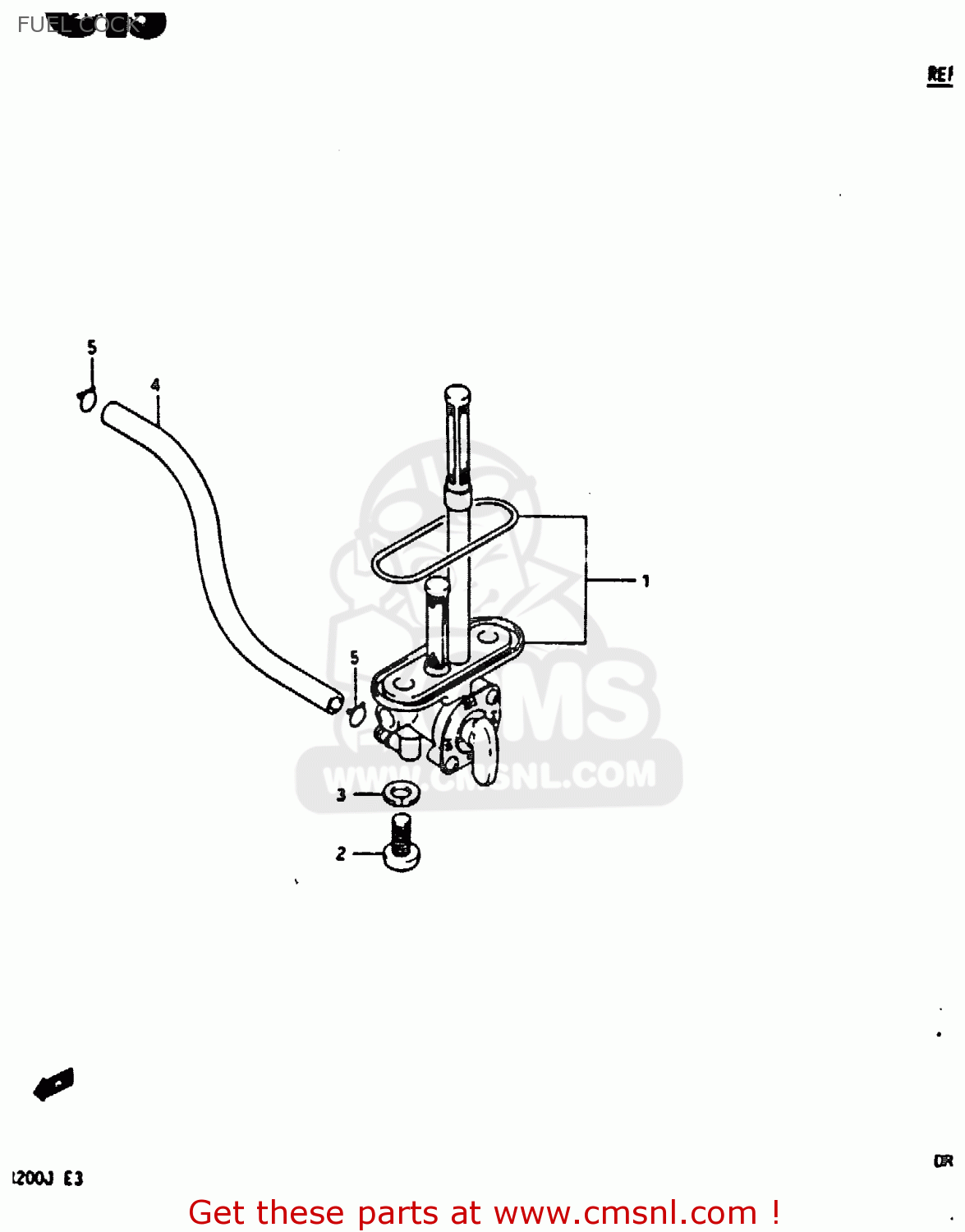

Fuel cock diagram DR200 1987 (H)

FUEL COCK DR200 1987 (H)

FUEL COCK DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

4430042A00
ref: 1

COCK ASSY,FUEL

€ 32.50

2

0211206167
ref: 2

SCREW

€ 2.50

3

0832121067
ref: 3

WASHER,LOCK

€ 2.50

4

0934305129
ref: 4

HOSE

€ 13.00

5

0940108401
ref: 5

CLIP

€ 1.50
