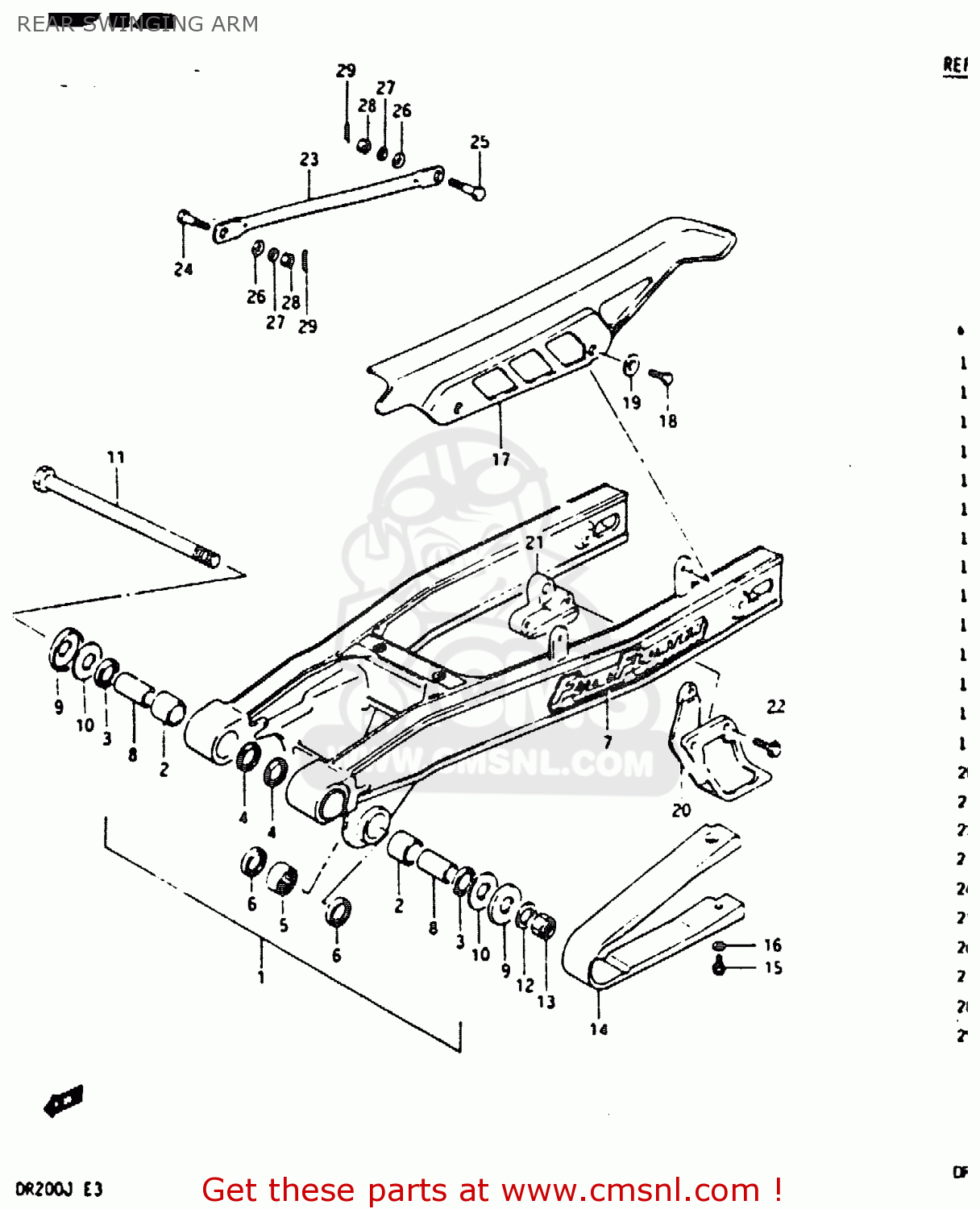

REAR SWINGING ARM

ref

part #

description

quantity

1

6100042A05
ref: 1

SWING ARM ASSEMBLY,REAR

€ 333.50

2

6126113700
ref: 2

BUSHING,RR SWGARM PIVOT

€ 8.00

3

0928520005
ref: 3

OIL SEAL

€ 5.00

4

0928620001
ref: 4

SEAL,OIL(20X27X5)

€ 2.50

5

0926320031
ref: 5

BEARING

€ 15.50

6

6264744A00
ref: 6

SEAL,CUSHION LEVER OUT DUST

€ 3.50

7

6838144A0097J
ref: 7

EMBLEM

€ 4.50

8

6125142A00
ref: 8

SPACER,RR SWGARM PVT

€ 9.50

9

6126240400
ref: 9

COVER,RR SWGARM DUST SEAL

€ 4.00

10

0821114322
ref: 10

WASHER

€ 2.50

11-1

6121144A00
ref: 11-1
MODEL G/J

SHAFT,REAR SWING ARM

€ 28.50

11-2

6121144A10
ref: 11-2
MODEL H

SHAFT,REAR SWING ARM

€ 28.50

12-1

0832211144
ref: 12-1
MODEL G

WASHER

€ 2.00

12-2

0916014027
ref: 12-2
MODEL H

WASHER(14.2X24X2.3)

€ 2.50

12-3

0916014043
ref: 12-3
MODEL J

WASHER

€ 2.50

13-1

0831921145
ref: 13-1
MODEL G/J

NUT

€ 3.00

13-2

0831921148
ref: 13-2
MODEL H

NUT 14MM

€ 3.00

14

6127342A00
ref: 14

BUFFER,CHAIN TOUCH DEFLECTOR

€ 16.50

15

0151705168
ref: 15

BOLT

€ 1.50

16

0916905012
ref: 16

WASHER

€ 3.00

17

6131101A02
ref: 17

CASE,CHAIN

€ 33.50

18

0110706104
ref: 18

BOLT

€ 2.00

19

0916906026
ref: 19

WASHER

€ 2.00

20

6134113A00
ref: 20

GUIDE,CHAIN

€ 20.00

21

6134542A00
ref: 21

RUBBER,CHAIN GUIDE

€ 7.50

22

0151706205
ref: 22

BOLT

€ 2.50

23

6431142A0013L
ref: 23

TORQUELINK,RR

€ 11.50

24

6432142A00
ref: 24

BOLT,TORQUE LINK,FRONT

€ 0.00

25

0911108013
ref: 25

BOLT(8X26.5)

€ 3.00

26

0832211088
ref: 26

WASHER

€ 2.00

27

0832121088
ref: 27

LOCK WASHER

€ 2.00

28

0914008008
ref: 28

NUT

€ 1.50

29

0411120208
ref: 29

PIN 20X20

€ 1.50
