MAGNETO

DR200 1987 (H)

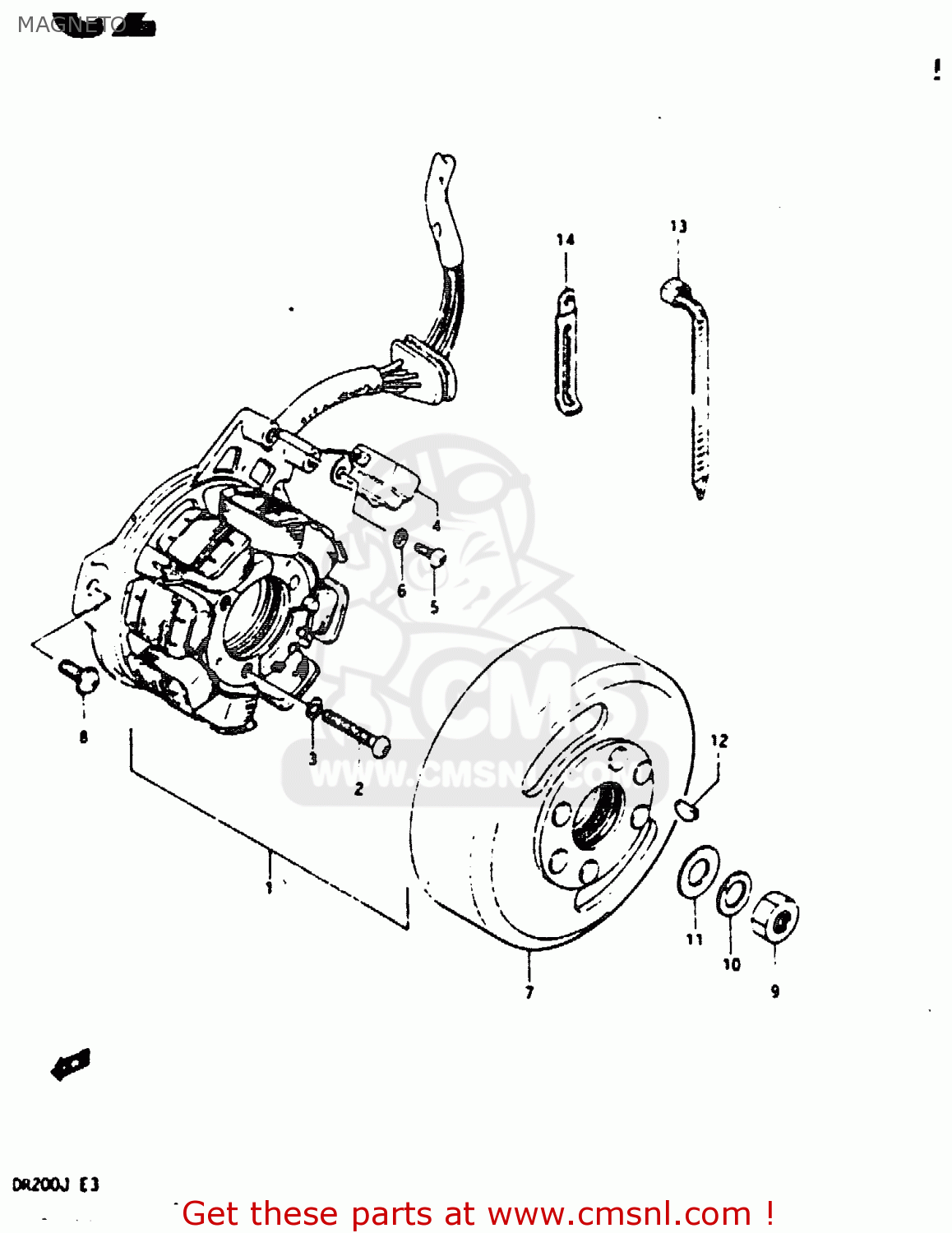

Magneto diagram DR200 1987 (H)

MAGNETO DR200 1987 (H)

MAGNETO DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

3210142A22
ref: 1

STATOR ASSEMBLY

€ 148.00

2

0211205308
ref: 2

SCREW

€ 1.50

3

0832121057
ref: 3

LOCK WASHER

€ 2.00

4

3215022A01
ref: 4

COIL,PICK UP

€ 66.50

5

0211204128
ref: 5

SCREW

€ 1.50

6

0832121047
ref: 6

WASHER,LOCK 4M

€ 2.00

7

3210242A22
ref: 7

ROTOR ASSEMBLY

€ 409.00

8

0913905011
ref: 8

SCREW(5X14)

€ 3.00

9

0914010003
ref: 9

NUT (10MM)

€ 3.50

10

0832121107
ref: 10

WASHER,LOCK,10

€ 2.00

11

0832221108
ref: 11

WASHER

€ 2.50

12

0834131039
ref: 12

KEY

€ 2.00

13

0940714403
ref: 13

CLAMP(L:125)

€ 2.50

14

0940406404
ref: 14

CLAMP

€ 3.00
