FRONT FENDER

DR200 1987 (H)

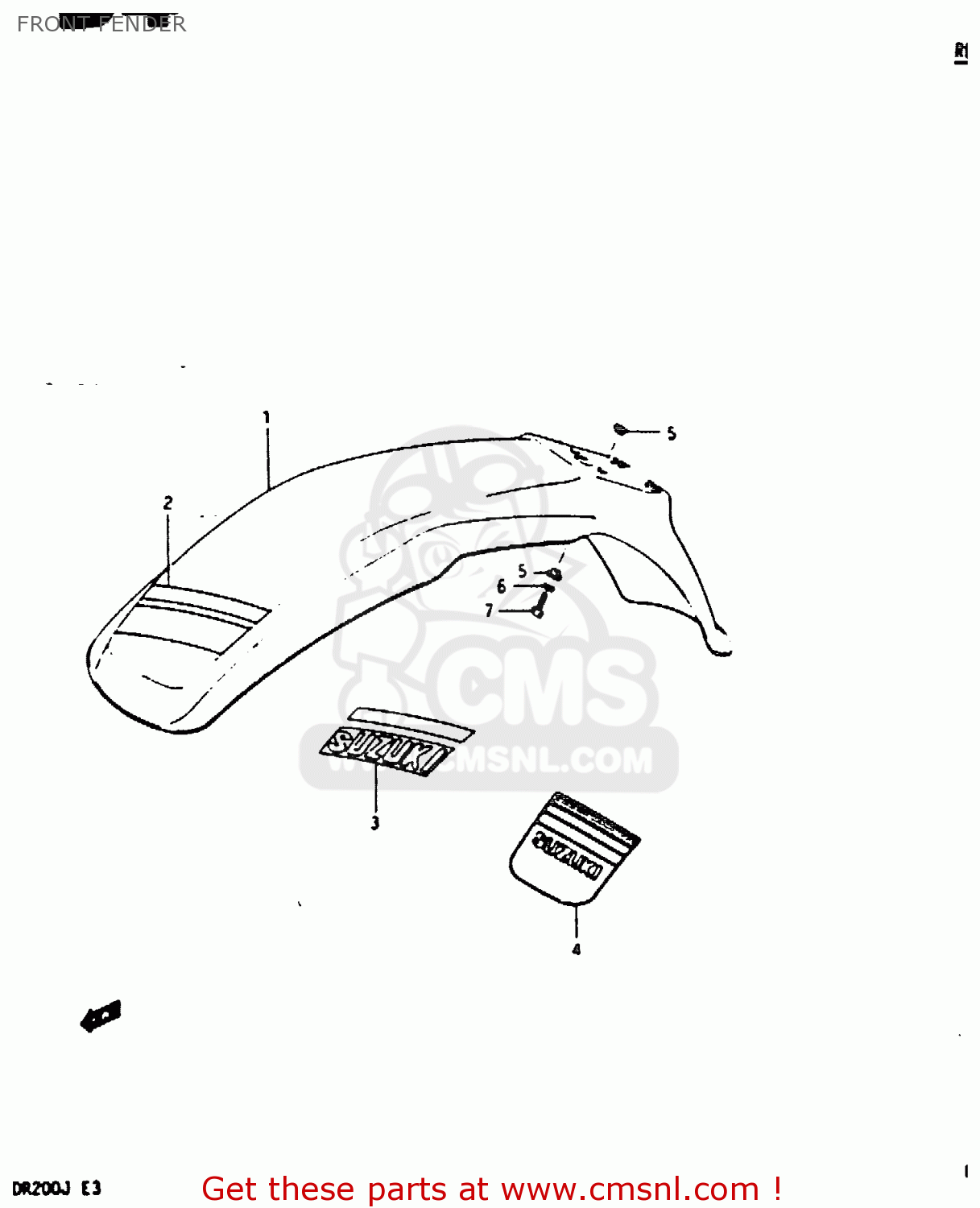

Front fender diagram DR200 1987 (H)

FRONT FENDER DR200 1987 (H)

FRONT FENDER DR200 1987 (H)

prices are in EUR

ref

part #

description

quantity

1-1

5311044A00163
ref: 1-1
MODEL G

FENDER,FRONT

€ 70.50

1-2

5311044A5025Y
ref: 1-2
MODEL H

FENDER,FRONT

€ 70.50

1-3

5311044A6025Y
ref: 1-3
MODEL J

FENDER COMP,FRONT

€ 0.00

2

6815044A007CL
ref: 2
MODEL G

TAPE SET,FRONT FENDER

€ 10.00

3

6815042A009BZ
ref: 3
MODEL H

TAPE,FRONT FENDER

€ 0.00

4

6815544A009SG
ref: 4
MODEL J

TAPE,FRONT FENDER

€ 0.00

5

0916906053
ref: 5

WASHER

€ 2.00

6

0832121067
ref: 6

WASHER,LOCK

€ 2.50

7

0110706167
ref: 7

BOLT

€ 3.00
