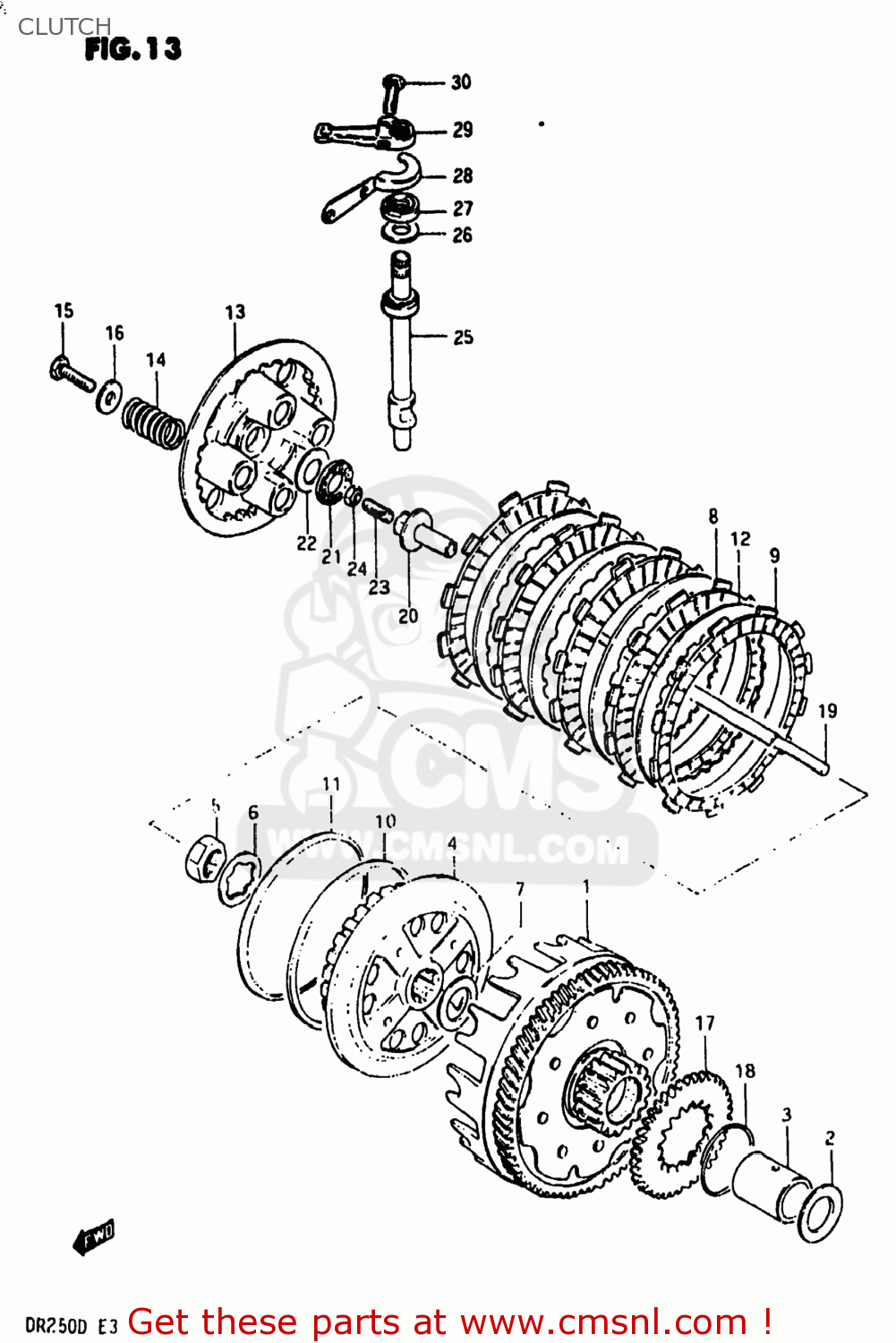

CLUTCH

ref

part #

description

quantity

1

2120038200
ref: 1
21200-38201

GEAR ASSEMBLY,PRIMARY DRIVE

€ 263.00

2

0821122363
ref: 2

WASHER

€ 2.50

3

0918022024
ref: 3

SPACER(22X28X37.5)

€ 16.50

4

2141138200
ref: 4
21411-38201

HUB,CLUTCH SLEEVE

€ 97.50

5

0914022005
ref: 5

NUT

€ 4.00

6

0916722010
ref: 6

WASHER,LOCK

€ 4.00

7

0821122363
ref: 7

WASHER

€ 2.50

8

2144140402
ref: 8
21441-37400

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

9

2144237400
ref: 9
21442-37401

PLATE,CLUTCH DRIVE

€ 11.50

10

2147137400
ref: 10

SEAT,WAVE WASHER(T:1.4)

€ 8.00

11

0916400004
ref: 11

WASHER

€ 9.00

12

2145137400
ref: 12
21451-14A00

PLATE,CLUTCH DRIVEN

€ 6.50

13

2146238200
ref: 13
21462-27A00

DISC,CLUTCH PRESSURE

€ 37.00

14

0944020010
ref: 14
09440-20013

SPRING

€ 5.00

15

0110706168
ref: 15
01500-06167

BOLT, UPPER

€ 3.00

16

0916006020
ref: 16
09160-06066

WASHER

€ 2.00

17

1632138200
ref: 17
16321-38210

GEAR,OIL PUMP DRIVE

€ 16.00

18

0938050001
ref: 18

CIRCLIP

€ 2.50

19

2311038200
ref: 19
23110-38201

ROD,CLUTCH PUSH

€ 14.50

20

2312138200
ref: 20
23121-38201

PIECE,CLUTCH PUSH

€ 17.00

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0916015015
ref: 22
09160-15045

WASHER

€ 4.00

23

0913406001
ref: 23
09134-06010

SCREW

€ 3.00

24

0831022068
ref: 24
08310-00067

NUT 6MM

€ 2.50

25

2312238200
ref: 25

CAMSHAFT,CLUTCH RELEASE

€ 60.50

26

0916014003
ref: 26
09160-14054

WASHER (14.2X22X1)

€ 1.00

27

0928512002
ref: 27
09285-12006

OIL SEAL

€ 7.00

28-1

2311738200
ref: 28-1

PLATE,CLUTCH RRS CAMSHAFT SEAL

€ 4.50

28-2

2311738300
ref: 28-2

PLATE,RELEASE CAM SHAFT

€ 0.00

29

2327145400
ref: 29

ARM,CLUTCH RELEASE

€ 31.50

30

0110706208
ref: 30
01500-06207

BOLT

€ 2.00
