TRANSMISSION
DR250 1982 (Z) USA (E03)

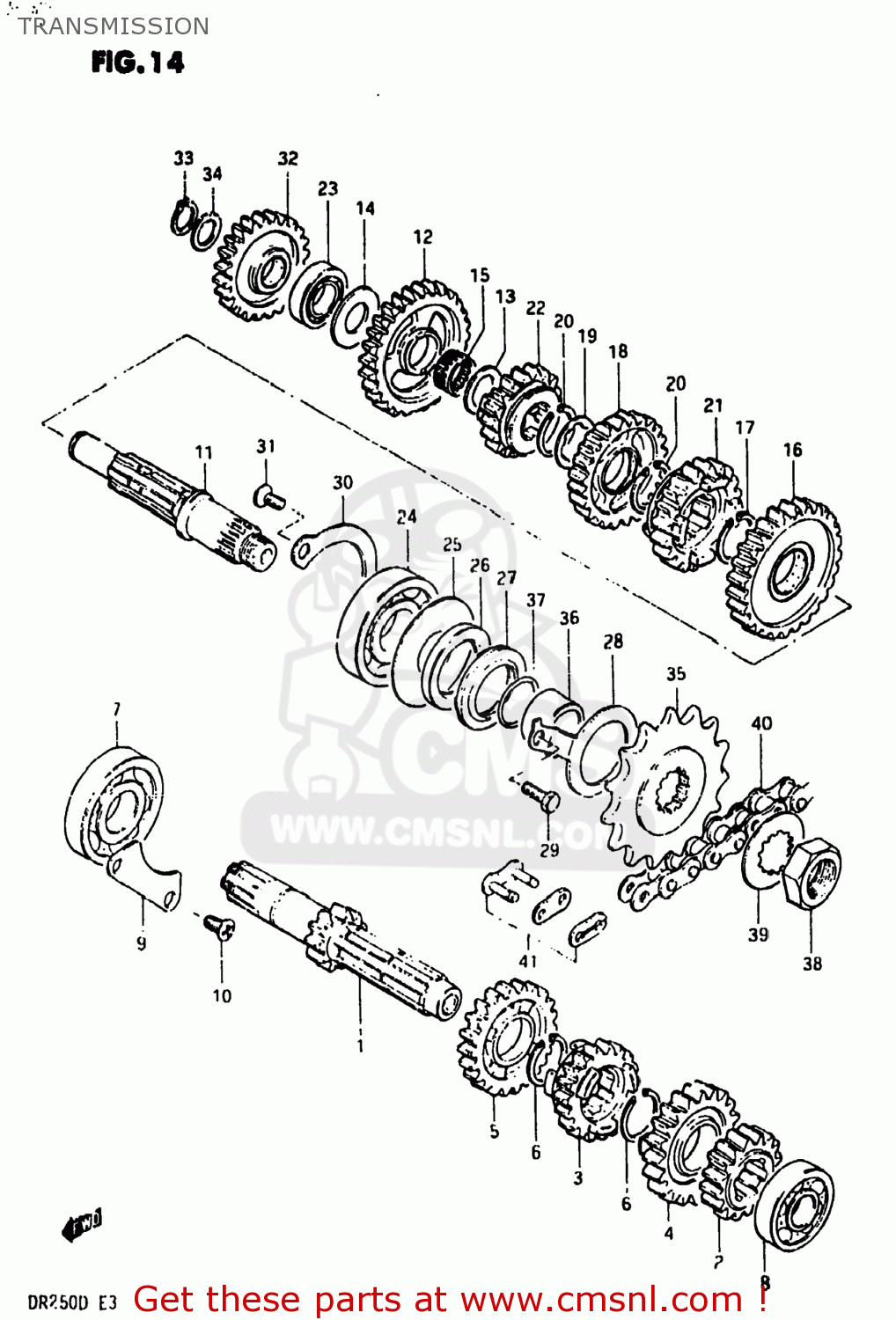

Transmission diagram DR250 1982 (Z) USA (E03)
TRANSMISSION DR250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412038200
ref: 1
24120-38203
SHAFT,COUNTER
€ 105.00
2
2422132412
ref: 2
GEAR,2ND DRIVE(NT:16)
€ 89.50
3
2423138200
ref: 3
24231-38201
GEAR,THIRD DRIVE (NT:19)
€ 95.50
4
2424132400
ref: 4
24241-32401
GEAR,FOURTH DRIVE
€ 57.00
5
2425132401
ref: 5
24251-32420
GEAR,FIFTH DRIVE
€ 82.50
6
0938022006
ref: 6
CIRCLIP
€ 3.00
7
0926222014
ref: 7
09262-22028
BEARING
€ 59.50
8
0926217018
ref: 8
09262-17027
BEARING
€ 25.00
9
2474138200
ref: 9
RETAINER,CNTR SHAFT BEARING
€ 4.50
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
2413038201
ref: 11
SHAFT,DRIVE
€ 102.50
12
2431132401
ref: 12
GEAR,1ST DRIVEN(NT:29)
€ 89.50
13
0821117281
ref: 13
09181-17195
WASHER
€ 3.00
14
0821117363
ref: 14
WASHER
€ 2.00
15
0926317004
ref: 15
BEARING(17X21X9.8)
€ 7.00
16
2432038210
ref: 16
GEAR,SECOND DRIVEN
€ 41.50
17
0938022006
ref: 17
CIRCLIP
€ 3.00
18
2433038210
ref: 18
GEAR,THIRD DRIVEN
€ 41.50
19
0916722011
ref: 19
WASHER,LOCK
€ 3.00
20
0938022006
ref: 20
CIRCLIP
€ 3.00
21
2434138200
ref: 21
24341-38201
GEAR,FOURTH DRIVEN
€ 92.50
22
2435138200
ref: 22
24351-38201
GEAR,FIFTH DRIVEN
€ 84.50
23
0926417001
ref: 23
BEARING(17X36X12)
€ 27.00
24
0926222013
ref: 24
BEARING(22X56X16)
€ 58.00
25
0916035007
ref: 25
WASHER(35X55X1)
€ 2.50
26
0928230003
ref: 26
09282-30004
OIL SEAL (30X43X5)
€ 9.00
27
0928330040
ref: 27
09283-30041
OIL SEAL (30X43X7)
€ 10.50
28
2475138200
ref: 28
24751-38201
PLATE,DRIVESHAFT OIL
€ 8.00
29
0110706128
ref: 29
01500-06127
BOLT
€ 2.00
30
2475232400
ref: 30
RETAINER,DRIVE SHAFT BEARING
€ 3.50
31
0212206128
ref: 31
02122-06127
SCREW
€ 3.00
32
2626038200
ref: 32
GEAR,KICK STARTER IDLE(NT:24)
€ 46.00
33
0938017001
ref: 33
CIRCLIP
€ 2.00
34
0821117241
ref: 34
WASHER
€ 2.00
35
2751138200
ref: 35
SPROCKET,ENGINE
€ 0.00
36
2753132400
ref: 36
SPACER,ENGINE SPROCKET
€ 14.50
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
€ 2.00
38
0914018008
ref: 38
NUT
€ 4.50
39
0916722012
ref: 39
WASHER,LOCK
€ 1.50
40
2760038210
ref: 40
27600-43D01-108
CHAIN ASSEMBLY,DRIVE
€ 80.00
41
2762036111
ref: 41
27620-28C01
JOINT ASSEMBLY,CHAIN
€ 8.50
