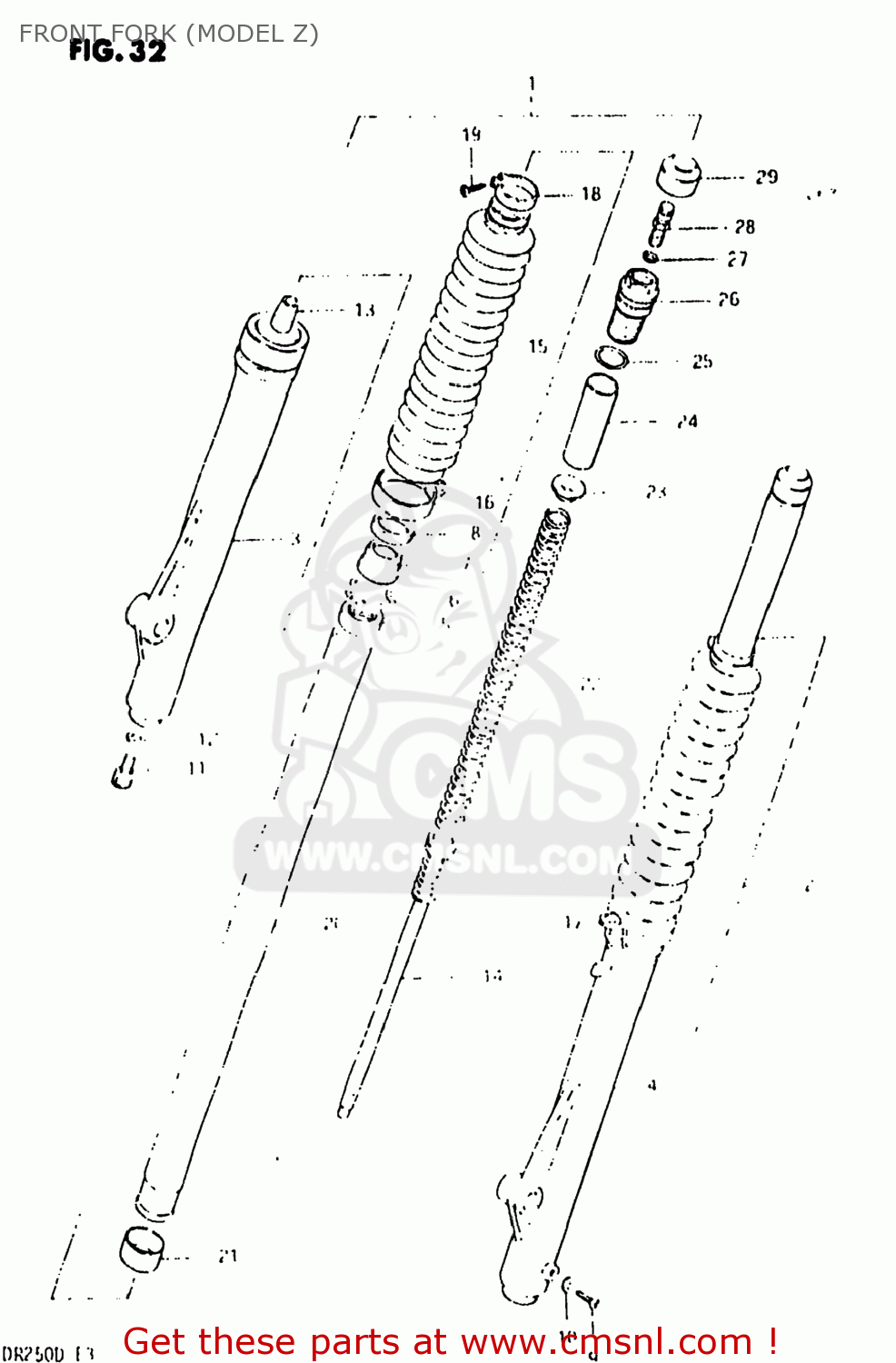

FRONT FORK (MODEL Z)

ref

part #

description

quantity

1

5110338200
ref: 1
51103-38201

DAMPER ASSEMBLY,RIGHT

€ 224.00

2

5110438200
ref: 2
51104-38201

DAMPER ASSEMBLY,LEFT

€ 237.00

3

5113038200
ref: 3

TUBE,OUTER,RIGHT

€ 78.00

4

5114040630
ref: 4

TUBE,OUTER,LEFT

€ 166.50

5

5115341211
ref: 5
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

6

5115630400
ref: 6

5115630400

7

5117340500
ref: 7

SEAL,DUST

€ 9.00

8

5114940500
ref: 8

CASE,DUST SEAL

€ 7.50

9

0211204088
ref: 9
02112-04087

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5119541210
ref: 13
51195-49071

PIECE,OIL LOCK

€ 12.00

14

5114638200
ref: 14

CYLINDER,FRONT FORK

€ 33.00

15

5157141211
ref: 15
51571-38265-38K

BOOT

€ 38.00

16

5157341410
ref: 16

BAND,FRONT FORK COVER

€ 10.00

17

5157337200
ref: 17

BAND,FRONT FORK COVER

€ 0.00

18

5157541410
ref: 18

BAND,BOOT

€ 8.00

19

0211204168
ref: 19
02112-0416A

SCREW

€ 1.00

20

5111038200
ref: 20
51110-38201

TUBE,FORK,INNER

€ 74.50

21

5112137410
ref: 21

PISTON

€ 14.00

22

5117138200
ref: 22

SPRING,FRONT FORK

€ 18.00

23

5117238010
ref: 23

GUIDE,FRONT FORK SPRING C

€ 9.50

24

5117638200
ref: 24

COLLAR,SPRING

€ 0.00

25

5111716310
ref: 25

O RING

€ 4.50

26

5135140630
ref: 26

CAP,FORK INNER TUBE

€ 23.50

27

5111714210
ref: 27
09280-06005

O-RING

€ 2.50

28

5129314200
ref: 28
51169-14200

VALVE,FRONT FORK AIR

€ 15.50

29

5118941220
ref: 29

CAP

€ 6.00

all assemblies
