DR250 1982 (Z) USA (E03)

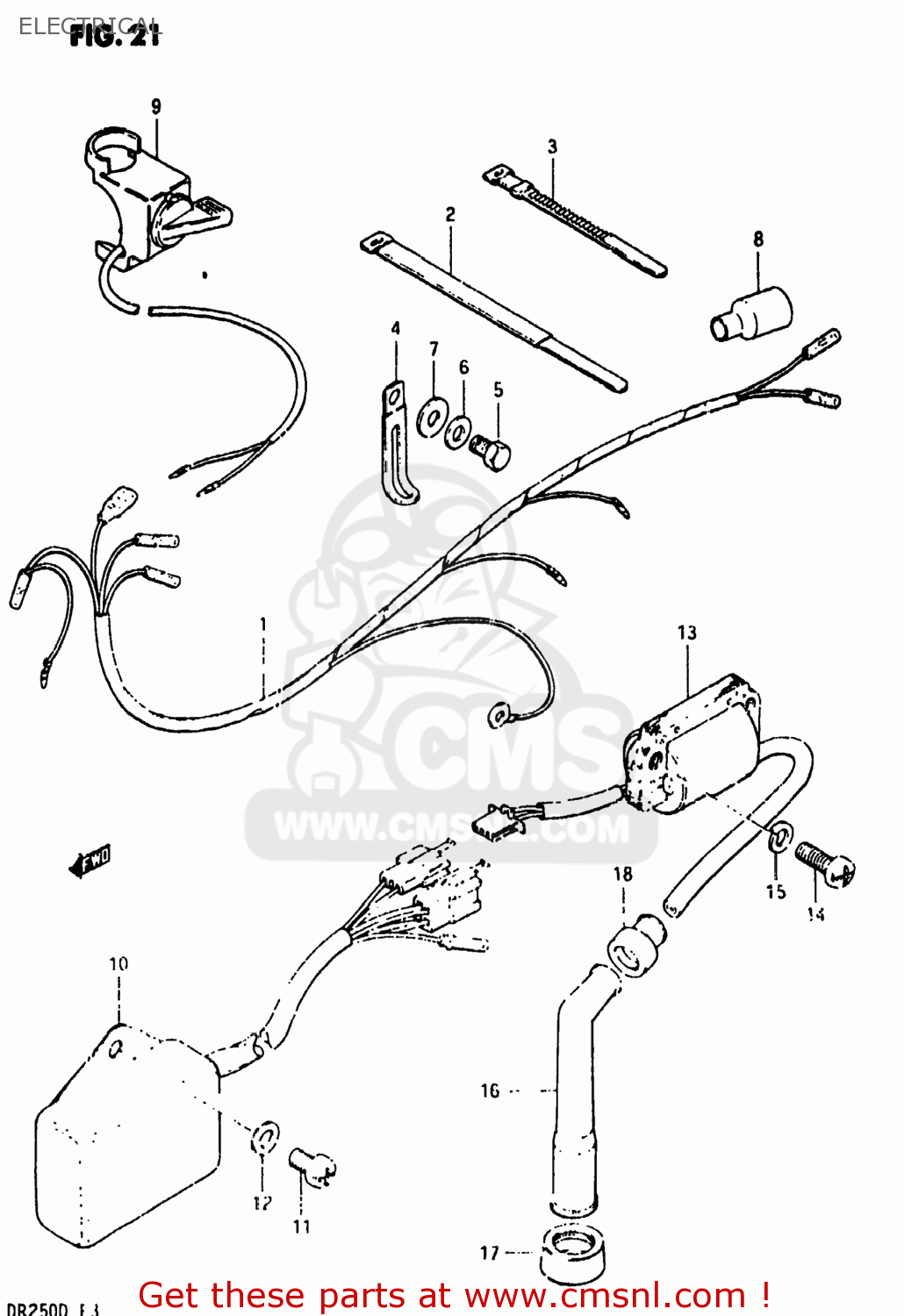

Electrical diagram DR250 1982 (Z) USA (E03)
ELECTRICAL DR250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661005280
ref: 1
36610-29502
HARNESS,WIRING
€ 31.00
2-1
0940711301
ref: 2-1
09407-18301
CLAMP L:110
€ 6.00
2-2
0940718301
ref: 2-2
CLAMP
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
0940406401
ref: 4-1
09404-06432
CLAMP L:35
€ 2.50
4-2
0940408414
ref: 4-2
09404-08420
CLAMP
€ 3.50
5
0110706168
ref: 5
01500-06167
BOLT, UPPER
€ 3.00
6
0832221068
ref: 6
08322-01067
WASHER
€ 2.00
7
0916006007
ref: 7
09160-06084
WASHER
€ 2.00
8
3661834000
ref: 8
BOOT,WIRING HARNESS
€ 3.00
9
3783038200
ref: 9
SWITCH ASSY,ENGINE STOP
€ 72.00
10
3290038210
ref: 10
IGNITER UNIT ASSEMBLY
€ 313.50
11
0211206108
ref: 11
02112-06107
SCREW
€ 1.50
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
13
3341038210
ref: 13
COIL ASSY,IGNITION
€ 104.50
14
0211206208
ref: 14
02112-06207
SCREW
€ 2.00
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
3351045010
ref: 16
CAP ASSY,SPARK PLUG
€ 23.00
17
3354138210
ref: 17
SEAL,SPARK PLUG
€ 7.00
18
3354298000
ref: 18
33542-38B00
SEAL,SPARK PLU
€ 4.50
