KICK STARTER
DR250 1982 (Z) USA (E03)

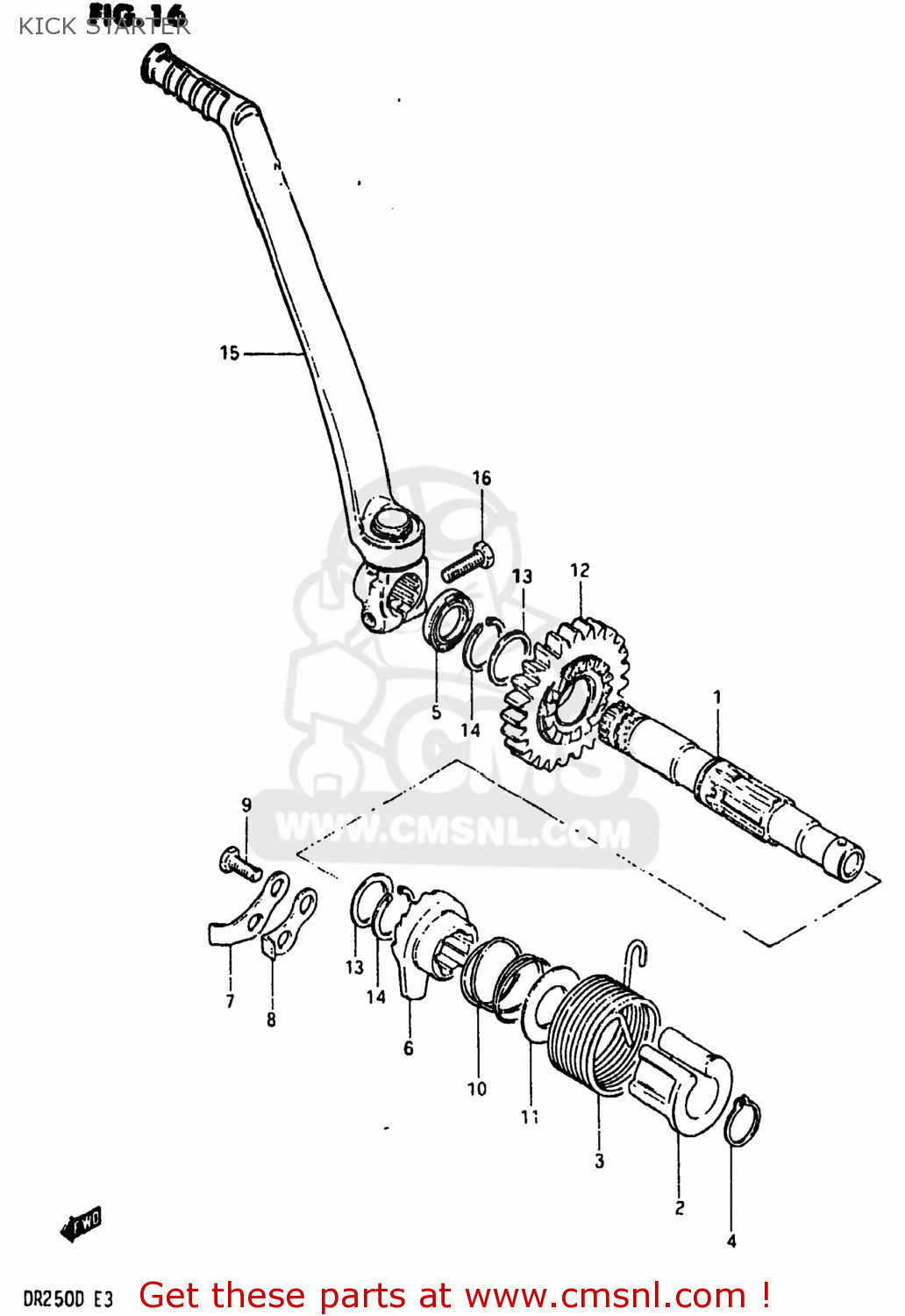

Kick starter diagram DR250 1982 (Z) USA (E03)
KICK STARTER DR250 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2621138201
ref: 1
SHAFT,KICK STARTER
€ 59.00
2
2622132400
ref: 2
GUIDE,KICK STARTER SFT SPRING
€ 0.00
3
0944845008
ref: 3
SPRING
€ 16.00
4
0938017001
ref: 4
CIRCLIP
€ 2.00
5
0928320031
ref: 5
SEAL,OIL(20X27X5)
€ 5.00
6
2623138200
ref: 6
26231-38202
STARTER,KICK
€ 25.50
7
2623238200
ref: 7
GUIDE,KICK STARTER
€ 4.00
8
2623332400
ref: 8
STOPPER,KICK STARTER
€ 3.00
9
0110708208
ref: 9
01500-08207
BOLT
€ 3.00
10
0944032006
ref: 10
SPRING
€ 1.50
11
0821117341
ref: 11
WASHER
€ 2.00
12
2624038200
ref: 12
GEAR,KICK STARTER DRIIVE
€ 68.50
13
0821122281
ref: 13
09181-22139
SHIM
€ 4.00
14
0938022006
ref: 14
CIRCLIP
€ 3.00
15
2630038211
ref: 15
26300-38220
LEVER ASSEMBLY,KICK STARTER
€ 81.50
16
0910008194
ref: 16
BOLT 8X25
€ 2.00
